Supply of combustion air

Supply of combustion must be provided. Combustion air can
be provided directly via a duct from outside, or indirectly via a
vent in the outer wall of the room where the stove is placed. The
amount of combustion air that is used for combustion is approx.
25 m 3 /h.

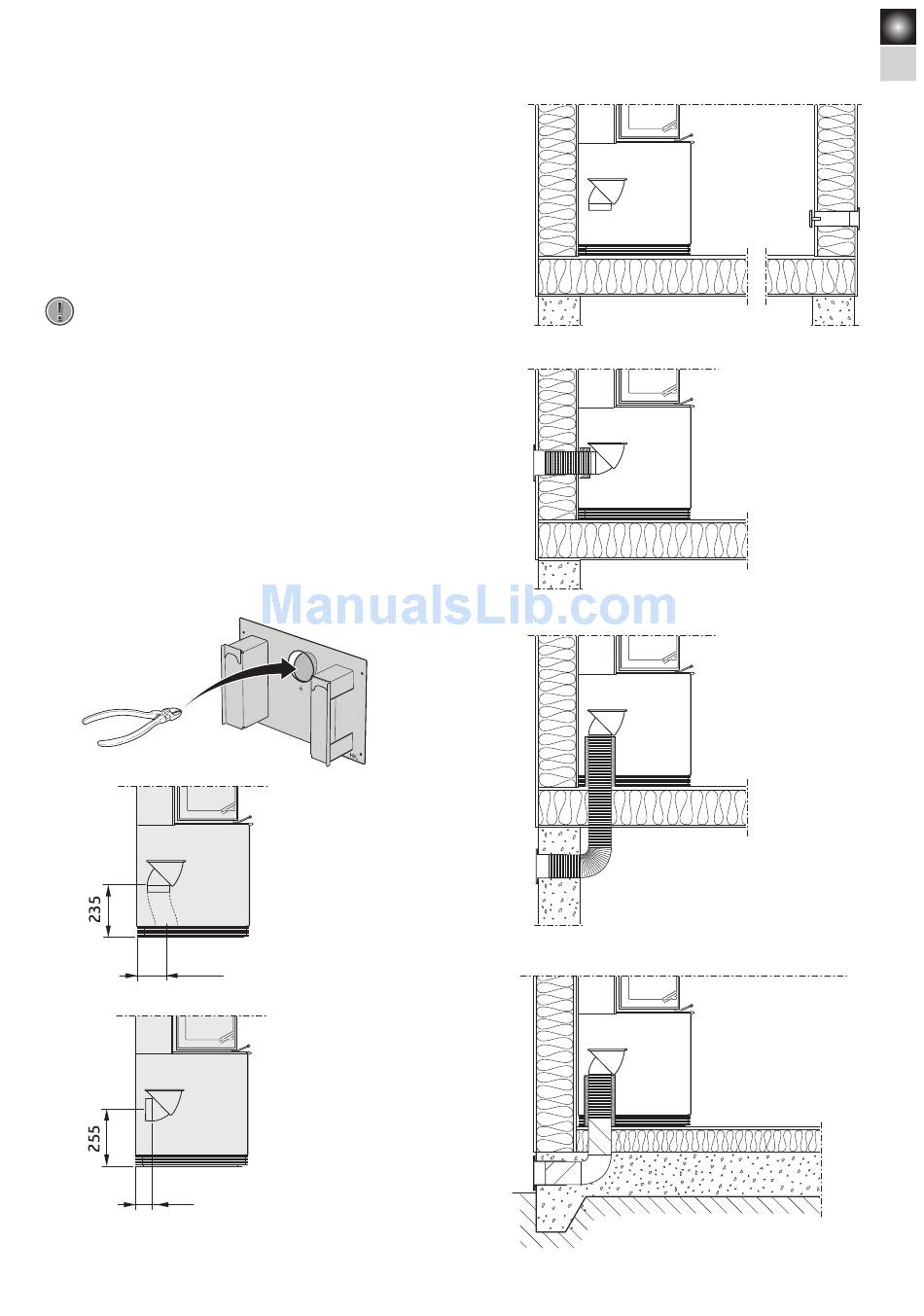

Some installation alternatives are shown below. The air duct
connection on the stove has an external diameter of Ø100 mm.
!
Turn the connector to ensure an air supply!
In hot areas, the duct should be insulated with 30 mm mineral
wool covered with a moisture inhibitor (aluminium tape). It is
important that the lead-in, between the pipe and the wall (or
floor), is sealed using jointing compound.
A 1 m length of condensation-insulated ducting for combustion
air is available as an accessory.
Knockout
To insert the combustion air hose through the floor panel,
remove the knockout.
130
75
Supply down
Supply rear
GB
119
SUPPLY
HK
HK
