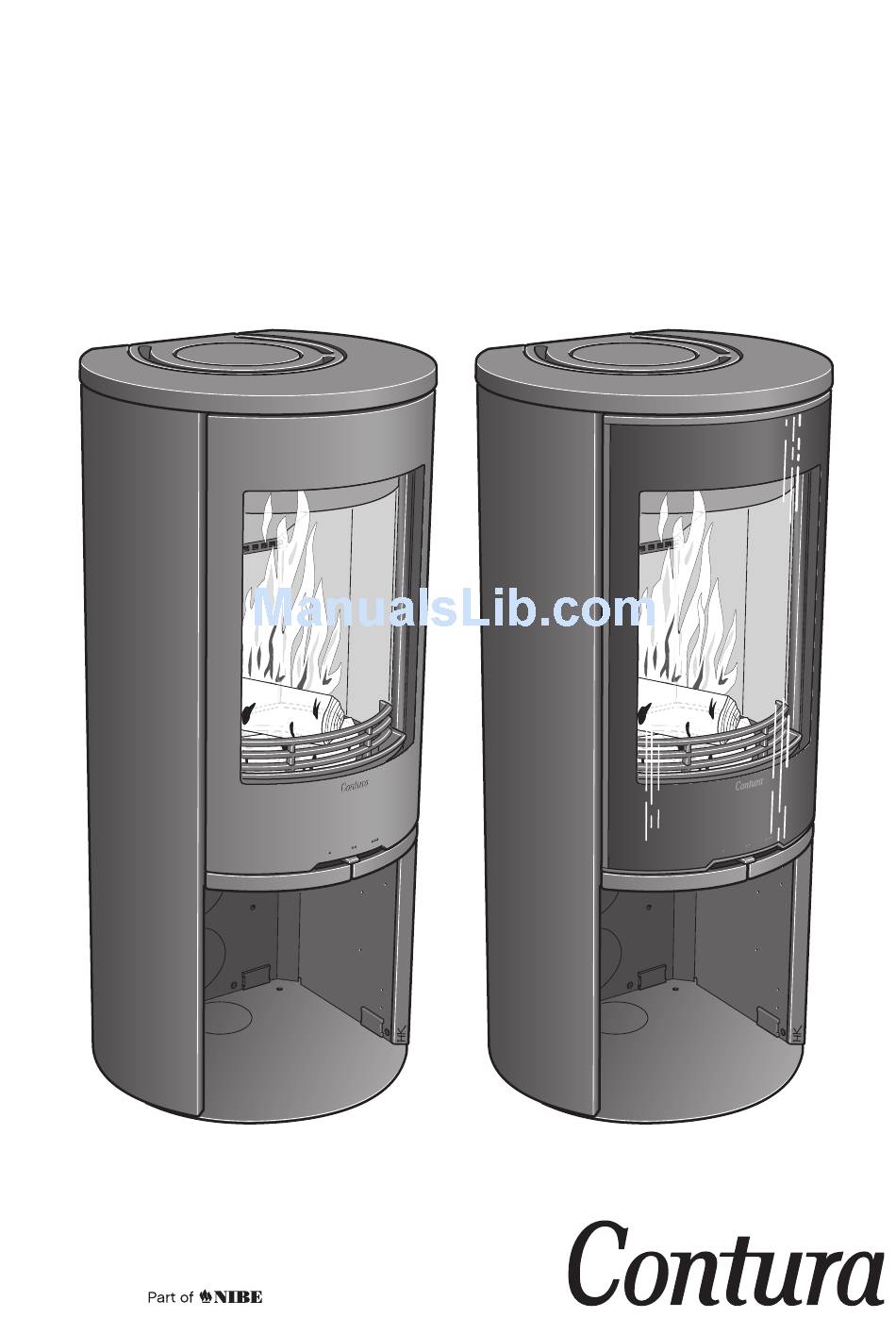

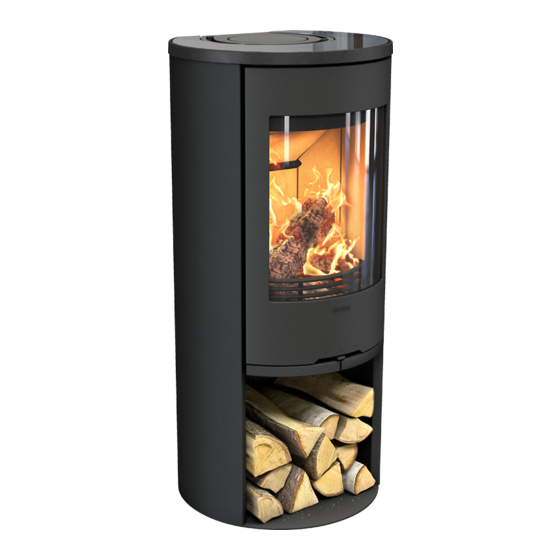

- Page 1 Installation Instructions C 510 www.contura.eu...
- Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove you have secured a product with timeless design and long service life. Contura also has combustion that is both environmentally friendly and efficient for the best heat production. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Effect 3-7kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency up to 80% enough to bear the weight of the stove and This manual contains instructions about chimney. -
Page 5: Prior To Installation
PRIOR TO INSTALLATION Prior to installation If the insert needs to be put down to be moved, loose components should be removed. Removal of the hearth cladding is described at the end of these installation instructions. 1 Fire bars 2 Grate disc 3 Hot air grate 4 Fire bricks (Vermiculite) 5 Type plate... -
Page 6: Connection To Chimney
CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. Maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m. -
Page 7: Supply Of Combustion Air
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 8: Installation Distances
INSTALLATION DISTANCES Installation distances C 510 WHEN INSTALLING TURNTABLE (OPTION) the follow- The minimum distance in front of ing installation distances do not apply. the stove opening to combustible See the separate turntable installation instructions. parts of the building or interior decoration must be at least 1 m. -
Page 9: Assembly
ASSEMBLY Assembly READY! If the stove’s loose components are removed these must be reinstalled in reverse order when the stove is put in place. Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. -
Page 10: Installation Of The Door
ASSEMBLY Installation of the door The door can be held in the open position using the push button on the underside of the stove. -
Page 11: Removing The Hearth Surround
REMOVAL Removing the hearth surround How to remove the hearth surround (Vermiculite) Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides pieces. Reinstall in reverse order... - Page 12 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any time without 811251 IAV SE-EX C510 Style-7 special notice. The current edition can be downloaded from 2015-03-19 www.contura.eu...
