Installation
instruction
C 660K
www.contura.eu

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 660K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Contura C 660K

Summary of Contents for Contura C 660K

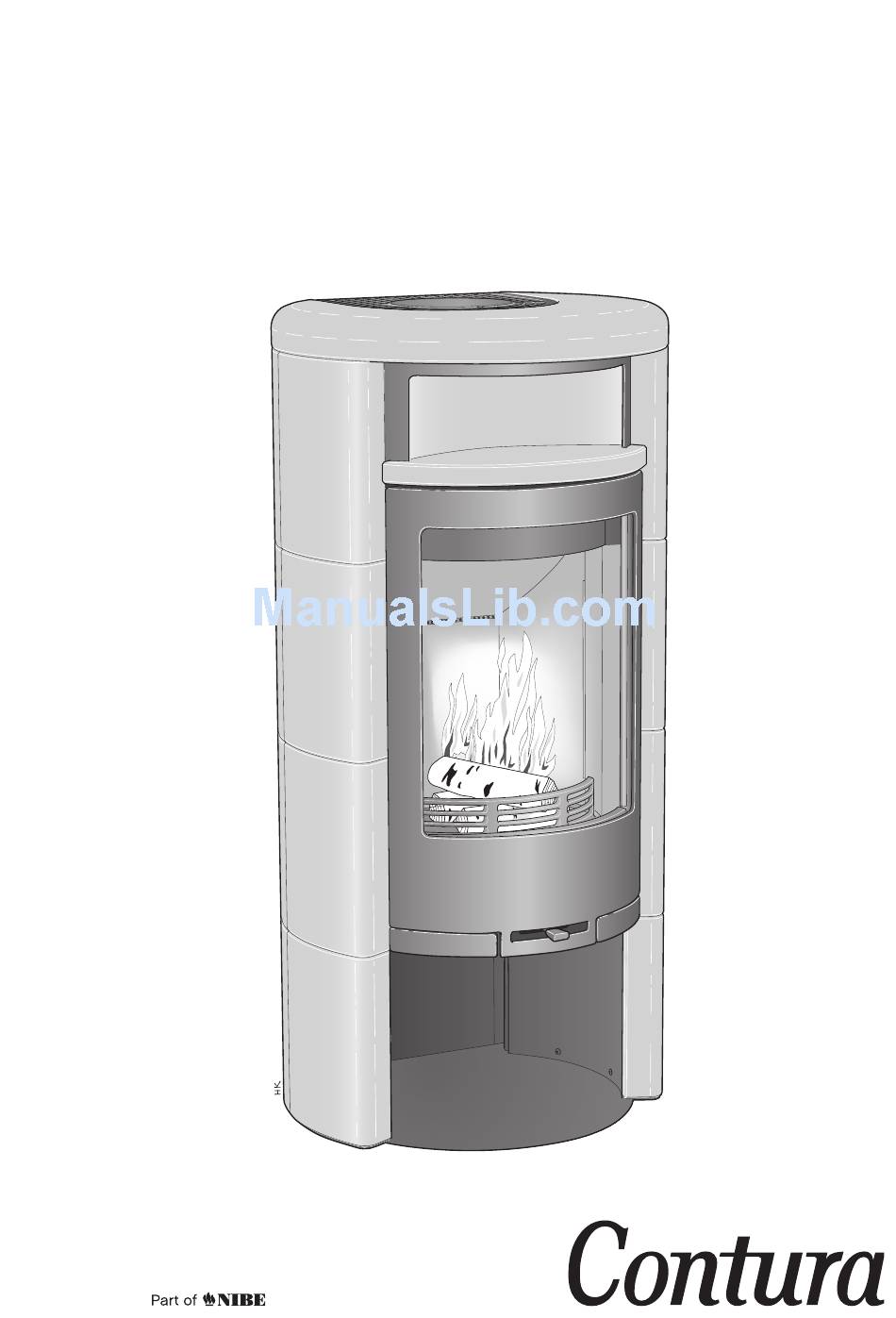

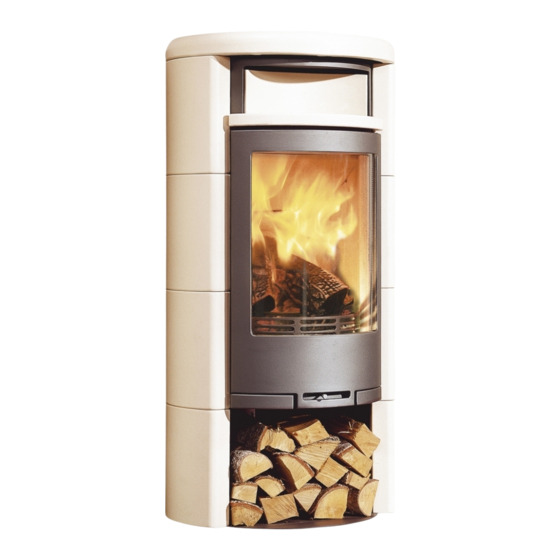

  • Page 1 Installation instruction C 660K www.contura.eu...
  • Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...

  • Page 3: Table Of Contents

    A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life.

  • Page 4: Local Authority

    FACTS Important to remember! Technical details Installation by authorised Structural support Effect 3-9 kW Nominal effect 6 kW technician Check that the wood joists are strong Efficiency up to 80% enough to bear the weight of the stove and This manual contains instructions about chimney.
  • Page 5 REMOVAL How to remove the hearth surround (Vermiculite) Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides pieces. If necessary, move the cast-iron firebed slightly. Reinstall in reverse order The heat reflecting plate must be fitted underneath the body of the stove if the area below is to be used as a log-box.

  • Page 6: Connection To Chimney

    CHIMNEY Connection to chimney • A flue with sharp bends and horizontal routing reduces the • The stove meets the requirements for connecting to chimneys dimensioned for 350°C flue gas temperature. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m.

  • Page 7: Supply Of Combustion Air

    SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove.

  • Page 8: Installation Distances

    INSTALLATION DISTANCES Installation distances C 660K The minimum distance in front of WHEN INSTALLING TURNTABLE (OPTION) the the stove opening to combustible following installation distances do not apply. parts of the building or interior See the separate turntable installation instruc- Combustible roof decoration must be at least 1 m.

  • Page 9: Assembly

    ASSEMBLY Installing C 660K...
  • Page 10 ASSEMBLY 3 mm Handle the tiles with care, the edges are susceptible to damage.
  • Page 11 ASSEMBLY Install the convection fascia, warming shelf or baking oven according to the instructions in the section for the relevant accessory on pages 76 to 77. This must be done before the tiled top is installed. Installing rating plates The rating plate supplied is placed on the back, either internally or externally.

  • Page 12: Installation Of Oven (Option)

    ASSEMBLY Installation of oven (option) Hold the oven door in place on the threaded pin. Hook the top hinge in place and loosely tighten one of the screws. Close the oven door and adjust it so that it aligns horizontally. Then open it carefully and tighten both screws.

  • Page 13: Installing Convection Fascia (Option)

    ASSEMBLY Installing convection fascia (option) Open the hatch and install the convector fascia with the Insert the convection fascia upwards first so that the locking retaining brackets angled as shown. spring comes inside the front panel of the stove and push the convection fascia lightly upwards.

  • Page 14: Installation Of Base (Option)

    ASSEMBLY Installation of base (option) The base must be removable to clean the area behind and for service. Installation of metal base (option) The base must be removable to clean the area behind and for service.
  • Page 15 ASSEMBLY Installation of drawer (option) When installing the drawer, the knockout in the back panel must always be removed for the supply of convection air. Slacken off the rear Allen screws three turns. Place the pull-out unit on the base plate. Hook the pull-out unit into place over the rear Allen Install the drawer on the pull-out unit using the four screws.
  • Page 16 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change colours, materials, dimensions and models at any time without special notice. 811114 IAV SE-EX C660K - 2 Your dealer can give you the most up to date information.
