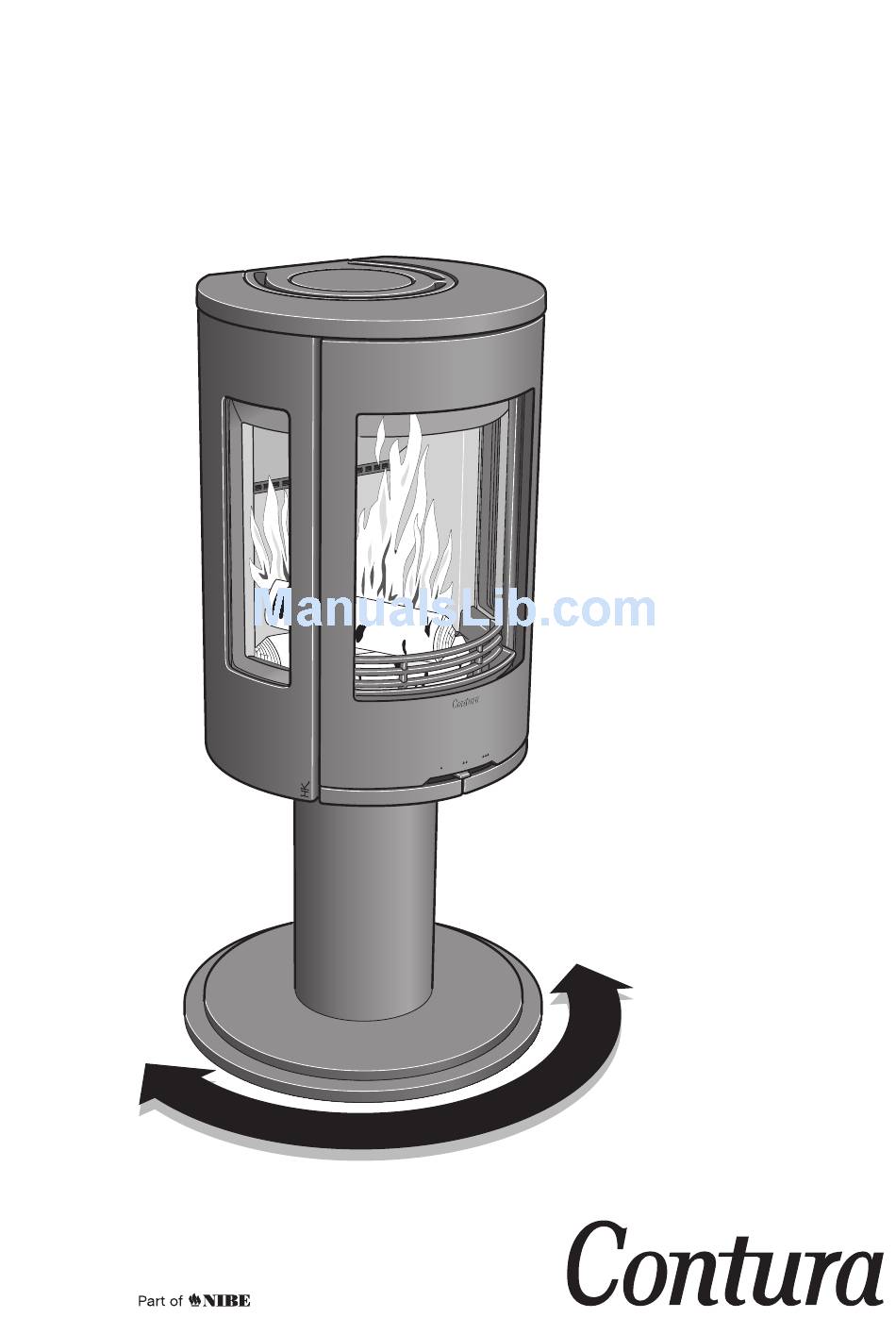

- Page 1 Installation instruction Turntable C500/C600 www.contura.eu...
-
Page 3: Safety Zone
Vridcentrum Axis of rotation The turntable is suitable for the following models: Contura 510, 520T, 550, 550A, 556, 586, 560K, 560T, 570, 580, 585, 590, 590T. Contura 620T, 630, 630T, 635, 650, 655, 660K, 660T. The owner of the house is personally responsible for ensur-... - Page 4 90° 90° Safety zone 45° 45° Safety zone 0° B=1330 0° B=1330 Contura 620T, 630, 630T, 635, 650, 655, 660K, 660T Angle of rotation 90° Angle of rotation 180° Combustible wall Combustible wall 90° 90° Safety zone 45° 45° Safety zone 0°...
- Page 5 Adapting the stove Stove with Foot Stove with Pedestal Follow the stove’s installation instruc- tions when mounting the insert’s foot pedestal.
-
Page 6: Positioning And Installation
Positioning and Installation The bottom section of the turntable is positioned so that installa- on the bottom section marks the stove’s neutral position where it tion dimensions A and B are met. Note that A and B are different can be turned an equal amount in both directions. If the turntable/ depending on the model and angle of rotation. - Page 7 90° 180° 360°...
- Page 8 The turntable brake is preset and should not normally be changed. It can be adjusted after the stove is installed on the turntable. Rotate the turntable until the panel protrudes under the cut out in the upper section of the turntable. Then adjust the brake force.
- Page 9 Checking safety zone Check that the axis of rotation of the turntable is the correct distance from combustible walls, check that A and B are met according to page 2. Also check that there is no combustible material in the safety zone. Making hole for chimney Make the marking for hole in the ceiling when the turntable has been positioned.
-
Page 10: Assembling The Stove
Assembling the stove Stove with Foot C500 C600... - Page 11 Stove with Pedestal Installing rotating collar Unscrew the two screws holding the factory installed collar and replace it with the rotating collar, carried on bearings, supplied with the turntable.
- Page 12 811071 IAV SE-EX Turntable 2010 C500/C600-2 NIBE AB · Box 134 · SE-285 23 Markaryd · Sweden 2015-09-21 www.contura.eu...
