Summary of Contents for Contura C 790K

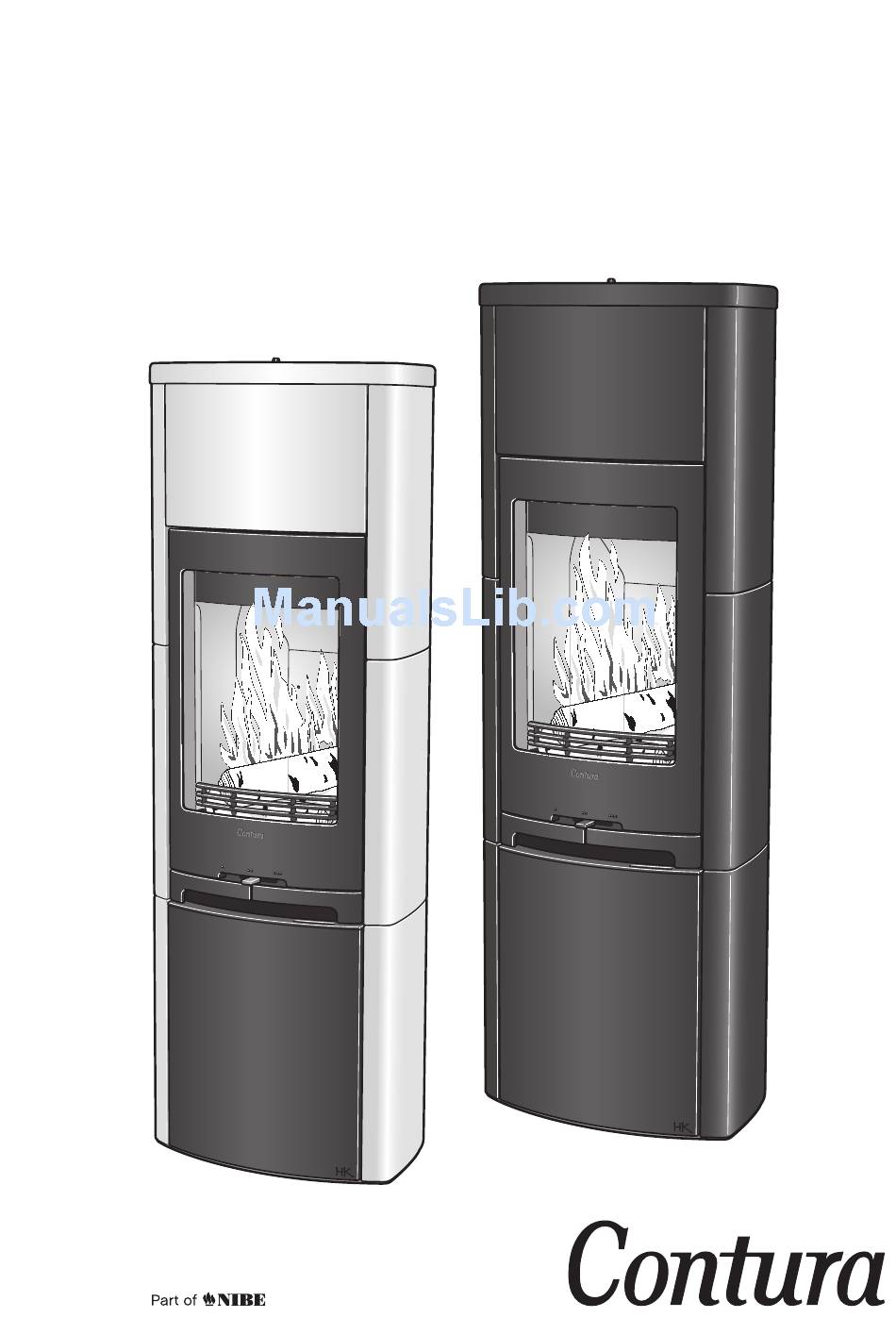

- Page 1 Installation instructions C 790K www.contura.eu...
- Page 2 See rating plate on the stove Intended area of use Heating of rooms in residential buildings Fuel Wood MANUFACTURER Name NIBE AB / Contura Address Box 134, Skulptörvägen 10 SE-285 23 Markaryd, Sweden CHECKS According to AVCP System 3 European standard...
-
Page 3: Table Of Contents
A warm welcome to the Contura family. We hope you will get a great deal of pleasure from your new stove. As a new owner of a Contura stove, you have secured a product with timeless design and long service life. -
Page 4: Technical Details
FACTS Technical details Important to remember! Installation by authorised Structural support Effect 3-7 kW Nominal effect 5 kW technician Check that the wood joists are strong Efficiency up to 80% enough to bear the weight of the stove and This manual contains instructions about chimney. -
Page 5: Connection To Chimney
CHIMNEY Connection to chimney • The stove meets the requirements for connecting to chimneys • A flue with sharp bends and horizontal routing reduces the dimensioned for 350°C flue gas temperature. draught in the chimney. The maximum horizontal flue is 1 m, on the condition that the vertical flue length is at least 5 m. -
Page 6: Supply Of Combustion Air/Option
SUPPLY AIR/ACCESSORY Supply of combustion air When a stove is installed in a room, the demand for air supply to the room increases. Air can be provided indirectly via a vent in the outer wall or via a duct from the outside that is connected to the connector on the underneath of the stove. -
Page 7: Installation Distances
INSTALLATION DISTANCES Installation distances C 790K Combustible roof The minimum distance in front of the stove opening to combustible parts of the building or interior decoration must be at least 1 m. The dimension diagrams only show the minimum permitted installation distances for the stove. -
Page 8: Installing Heat Tank Stone
ASSEMBLY Installing heat tank stone If the stove cannot be equipped with the heat tank stone, advance to page 107. - Page 9 ASSEMBLY...
- Page 10 ASSEMBLY 90°...
- Page 11 ASSEMBLY...
-
Page 12: Installing Suspension Profiles
ASSEMBLY Installing suspension profiles... - Page 13 ASSEMBLY...
- Page 14 ASSEMBLY 90°...
- Page 15 ASSEMBLY...
-
Page 16: Installing Tiles
ASSEMBLY Installing tiles... - Page 17 ASSEMBLY...
- Page 18 ASSEMBLY...
-
Page 19: Installing Heat Tank Stone On Top
ASSEMBLY Installing heat tank stone on top... - Page 20 ASSEMBLY Final inspection of the installation It is extremely important that the installation is inspected by an authorised chimney sweep before the stove is used. Also read the "Lighting instructions" before lighting for the first time.
-
Page 21: Removing The Loose Parts
REMOVAL Removing the loose parts How to remove the heat defl ector How to remove the firebricks Handle the vermiculite with care. Lift the smoke baffle with one hand whilst removing the sides. The side posts need not be removed when sweeping. Reinstall in reverse order... -
Page 22: Installing The Base Door
ASSEMBLY Installing the base door... - Page 24 NIBE AB · Box 134 · 285 23 Markaryd · Sweden www.contura.eu Contura reserves the right to change dimensions and procedures described in these instructions at any time without 811166 IAV SE-EX C790K-9 special notice. The current edition can be downloaded from 2015-03-17 www.contura.eu...
