Supply of combustion air
When a stove is installed in a room, the air supply demand to the
room increases. Air can be provided indirectly via a vent in the
outer wall or via a duct from the outside that is connected to the
connector on the underneath of the stove. The amount of air
needed for combustion is 25m 3
The connector has an external diameter of 67 mm. When duct
routing further than 1 m the pipe diameter must be increased to
100 mm and a correspondingly larger wall vent must be selected.
In hot areas the duct should be insulated with 30 mm mineral wool
covered with a moisture inhibitor (plastic). It is important that the
lead-in between the pipe and the wall (or floor) is sealed using
jointing compound.
A 1 m length of condensation insulated ducting for combustion air
is available as an accessory.

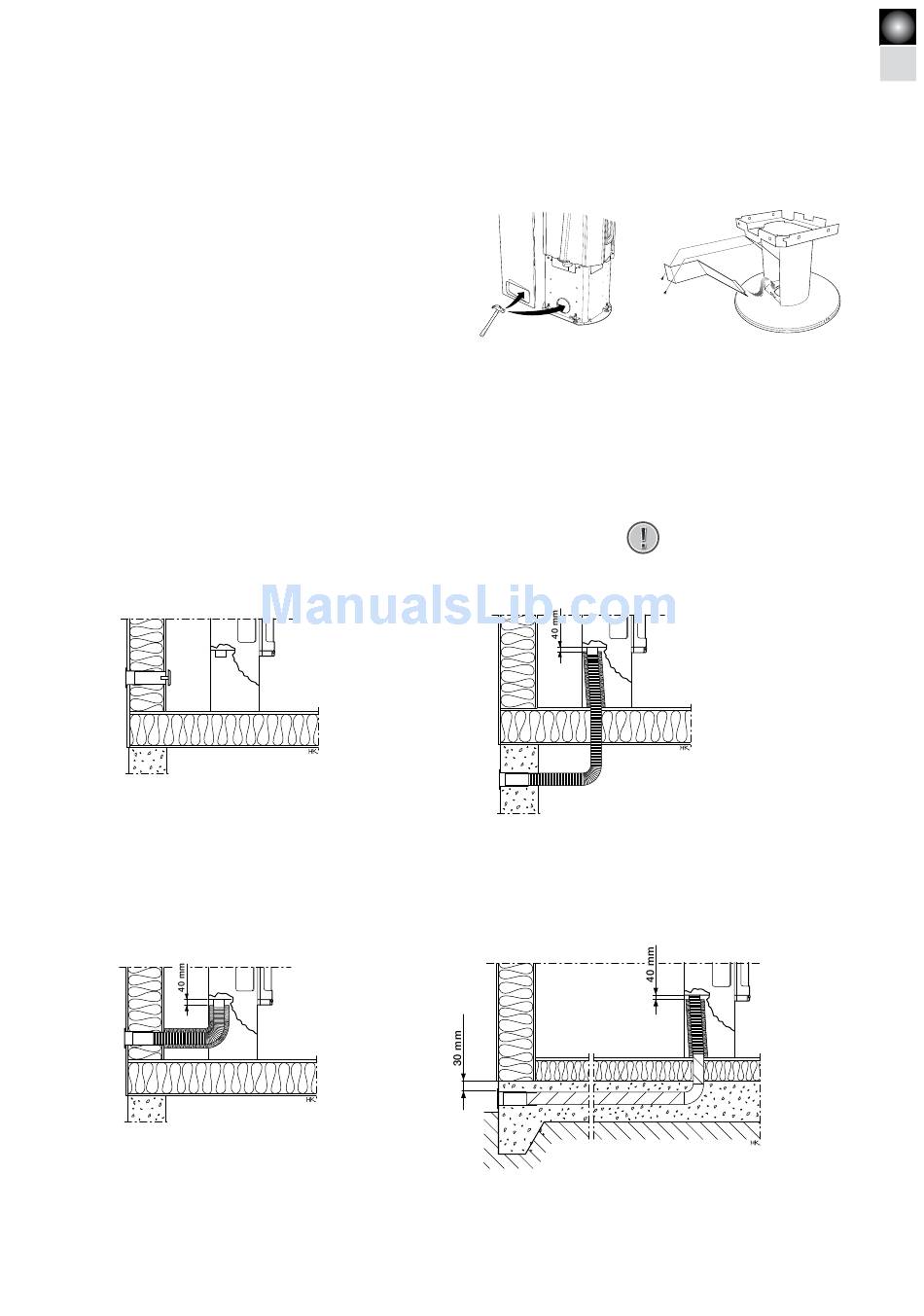

Installation variants
Indirect air supply through the external wall.
Through the external wall.
/h.
C556
In the back and floor
plates there are knockouts
that must be removed to
insert the pipe.
!
Through floor and wall-and-cavity foundation.
Through floor and foundation slab.
556/586
SUPPLY AIR/ACCESSORY
C586
There is a detachable cover
on the reverse of the pillar
foot which is removed when
installing combustion air
connection.
Leave a 40 mm gap between
the condensation insulation
and the bottom of the stove.
