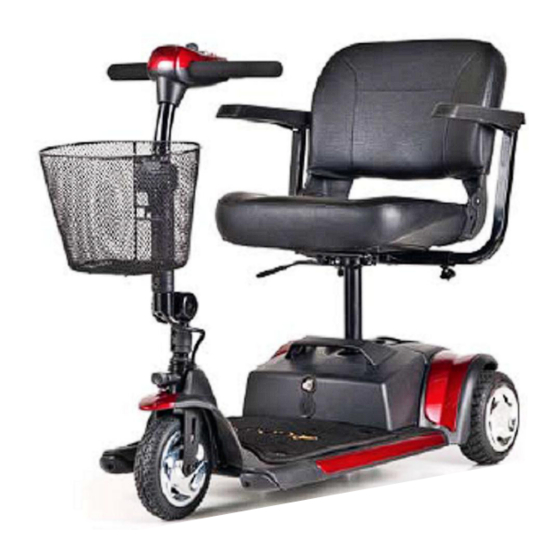

Golden Technologies Buzzaround XL GB146 Service Manual
  1. Manuals
  2. Brands
  3. Golden Technologies Manuals
  4. Scooter
  5. Buzzaround XL GB146
  6. Service manual

Golden Technologies Buzzaround XL GB146 Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Buzzaround XL
Service Guide
Model GB146
Model GB116
This Service Guide contains:
Troubleshooting
Replacement Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Buzzaround XL GB146 and is the answer not in the manual?

Questions and answers

james collet
February 8, 2025

trying to find the connector between rear and front of gb146

0
1 comments:
Mr. Anderson
February 11, 2025

The connector between the rear and front sections of the Golden Technologies Buzzaround XL GB146 is located under the frame, inside the panel where the controller is positioned.

This answer is automatically generated

0

Subscribe to Our Youtube Channel

Related Manuals for Golden Technologies Buzzaround XL GB146

Summary of Contents for Golden Technologies Buzzaround XL GB146

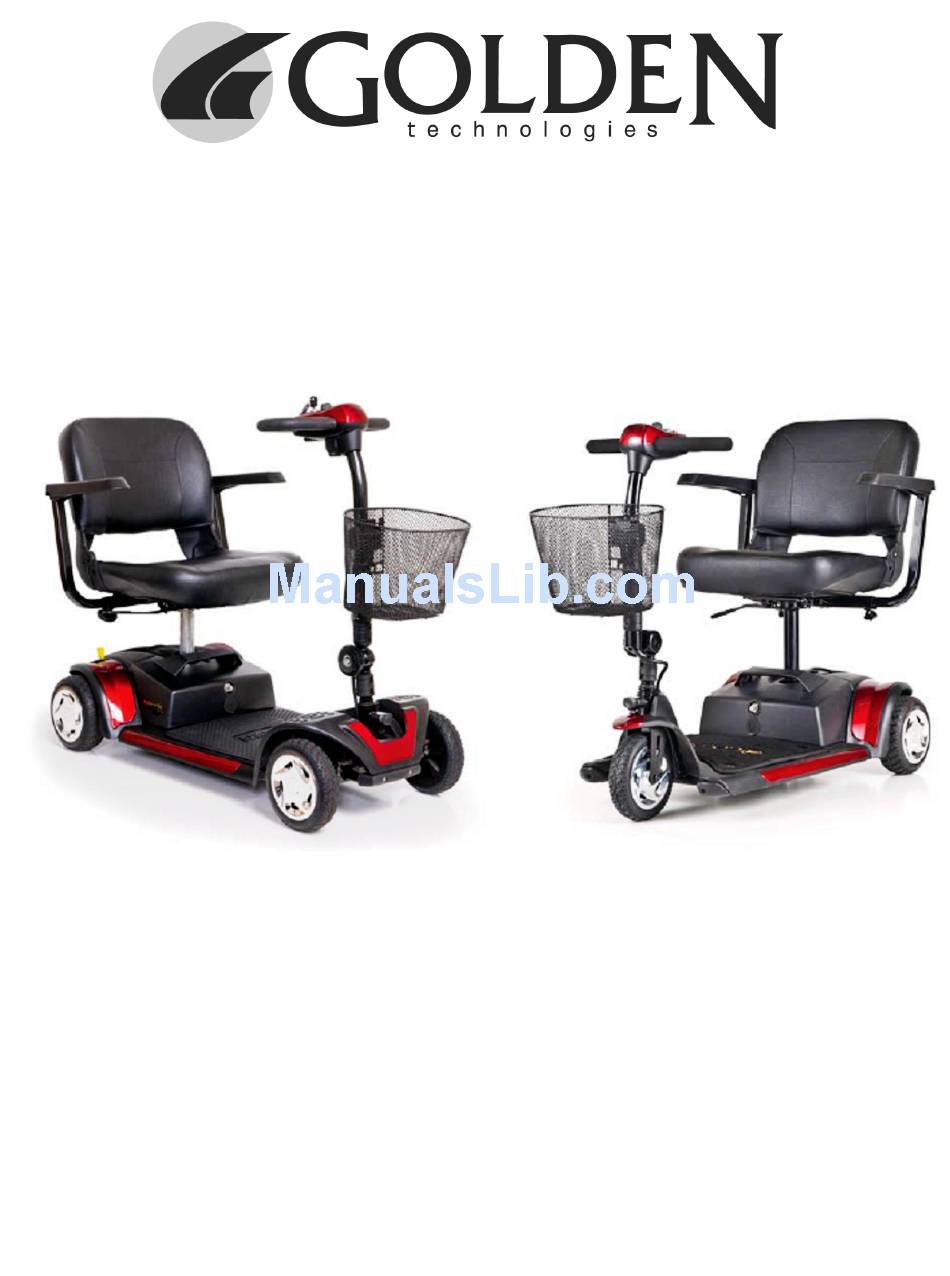

  • Page 1 Buzzaround XL Service Guide Model GB146 Model GB116 This Service Guide contains: Troubleshooting Replacement Instructions Illustrated Parts Breakdown...
  • Page 2 Buzzaround XL_SG_REVA_100711...

  • Page 3: Table Of Contents

    Buzzaround XL_SG_REVA_100711 Table of Contents Nomenclature and Contact Information........................3 ABOUT THE BUZZAROUND XL SERVICE GUIDE................... 4 Buzzaround XL Components...4-9 Wiring Diagram....10 SCENARIO 1: Turn the key to the on position and no power........11 SCENARIO 2: Batteries will not charge......BEEP CODES..
  • Page 4 12 - Front Basket 13 - Seat Post 14 - Detent Pin 15 - Lockup Handle Figure 1. Buzzaround XL (Model GB116) Contact Information Golden Technologies 401 Bridge Street Old Forge, PA 18518 Toll-free: 800-624-6374 Fax: 800-628-5165 Lift Chair/Bed Tech: x645...

  • Page 5: Buzzaround Xl Components

    ABOUT THE BUZZAROUND XL SERVICE GUIDE This service guide provides you with the information necessary to troubleshoot the Golden Technologies Buzzaround XL GB116/GB146. The troubleshooting scenarios in this manual consist of procedures that enable you to systematically trace and correct faults in the system. Appendices A and B include instructions on how to measure voltage and continuity with a multimeter.
  • Page 6 Buzzaround XL_SG_REVA_100711 Component: Circuit Breaker (1) Location: Mounted on the Battery Pack. See gure 2. Function: Protects battery circuit from current overload. When the current draw exceeds the breaker rating, the circuit breaker will open. Connections: The circuit breaker is connected to the positive (+) terminal on one battery and the negative (-) terminal on the other.
  • Page 7 Buzzaround XL_SG_REVA_100711 Figure 5. Controller Component: Power Harness (5) Location: Mounted to the front frame - under the battery pack. See #5 on gure 4. Function: Connects the battery pack to the controller. Connections: Connects to the battery pack (4a). Connects to the controller 5b (inhibit), 5c (Bat -), and 5d (Bat +). Refer to figure 11 on page 10.
  • Page 8 Buzzaround XL_SG_REVA_100711 Component: Front Intermediate Motor Harness (8) Location: Mounted on the front frame. See gure 6. Function: Provides connectivity for rear intermediate motor harness and the controller. Connections: Connected to the rear intermediate harness (9a) and the controller (6). Refer to figure 11 on page 10. Failure Signs: Scooter will run slowly or not at all.
  • Page 9 Buzzaround XL_SG_REVA_100711 Component: Speed Pot Location: Mounted on the control panel (12). See #1 on figure 9. Function: The speed potentiometer (pot) uses variable resistance to control the speed of the scooter. Connections: Connected to the main harness through the control panel harness. Failure Signs: Beep Code #7 Tests: Call Tech Support Expected readings: Depends on speed pot position.
  • Page 10 Buzzaround XL_SG_REVA_100711 Component: Off-Board Battery Charger Location: Stored inside a pouch on the seatback. Function: Recharges batteries. Connections: Connects to the charger port on the battery pack (14b) or the charger port on the tiller. Refer to figure 11 on page 10. Charger port (14b) is located on the battery pack or on the tiller. Connects the charger to the batteries.

  • Page 11: Wiring Diagram

    Buzzaround XL_SG_REVA_100711 CIRCUIT BREAKER (1) SPEED POT INSIDE BATTERY PACK SWITCH CONTROL PANEL (12) BATTERY BATTERY BLACK Fuse BATTERY HARNESS (4) CHARGER HARNESS (14) DYNAMIC R-SERIES CONTROLLER MAIN THROTTLE HARNESS (7) POT (13) 13a FRONT POWER HARNESS BLACK FRONT BLUE INTERMEDIATE HARNESS (8) ORANGE...

  • Page 12: Scenario 1: Turn The Key To The On Position And No Power

    Buzzaround XL_SG_REVA_100711 SCENARIO 1: TURN THE KEY TO THE ON POSITION AND NO POWER Put the key into the key switch and turn to the on position. There is no power to the control panel. The horn does not work and the battery condition meter does not work. Battery voltage travels from the batteries, through the controller and the key switch.

  • Page 13: Scenario 2: Batteries Will Not Charge

    Buzzaround XL_SG_REVA_100711 SCENARIO 2: BATTERIES WILL NOT CHARGE Most battery chargers need to see at least 16VDC at the charger port. Otherwise, they may not send a charging current to the batteries. This test will ensure that the battery voltage is making it to the charger port. You will need to check battery voltage and wiring harness continuity inside the battery pack.

  • Page 14: Beep Codes

    Buzzaround XL_SG_REVA_100711 BEEP CODES The controller uses audible beeps to indicate the status of the system. When the controller notices that there is a malfunction in the system, it will beep a code when the power is on. For example, when it beeps ve times and stops that indicates beep code #5 Brake Fault.

  • Page 15: Beep Code #5 - Brake Fault

    Buzzaround XL_SG_REVA_100711 Check for Continuity between Front and Rear Intermediate Motor Harnesses. 7) Remove the seat. 8) Remove the battery pack. 9) Remove the four screws that fasten the controller cover to the underside of the scooter frame. 10) Disconnect the front intermediate motor harness (8c and 8d) from the controller. Refer to figure 11 on page 10. 11) Make sure that the pins are seated properly on 9b.

  • Page 16: Beep Code #6 - Paddle Fault (Out Of Neutral)

    Buzzaround XL_SG_REVA_100711 Check the Continuity Between the Front and Rear Intermediate Motor Harnesses. 10) Unplug the motor harness (10a) from the rear intermediate motor harness (9b). Refer to figure 11 on page 10. 11) Make sure that the pins are seated properly on 10a. Check the continuity between 9b and 8b. 10 ohms or less? Go to step 15.
  • Page 17 Buzzaround XL_SG_REVA_100711 BEEP CODE #7 - PADDLE POT/SPEED CONTROL FAULT This Beep Code occurs because there is a fault with the throttle pot, speed pot, or the associated wiring. Check Throttle Pot Resistance at Controller. 1) Remove the seat. MEASURE RESISTANCE 2) Remove the battery pack.
  • Page 18 Buzzaround XL_SG_REVA_100711 12) Insert the multimeter probes into the throttle pot connector (13a) at the orange wire and the yellow wire. See gure 26. Note the resistance reading. Insert the multimeter probes into the MEASURE RESISTANCE throttle pot connector (13a) at the yellow wire and the blue wire.
  • Page 19 Buzzaround XL_SG_REVA_100711 MEASURE RESISTANCE Figure 29. Connector 10a 11) Check the front intermediate motor harness and the rear intermediate motor harness for continuity. 10 ohms or less? Go to the next step. Open? Replace as necessary. Check Motor Resistance at Motor. 12) Make sure that the pins are seated properly on 10a.

  • Page 20: Buzzaround Xl Replacement Instructions

    Buzzaround XL_SG_REVA_100711 BUZZAROUND XL REPLACEMENT INSTRUCTIONS DRIVEWHEEL REPLACEMENT Tools needed: 19mm socket, frame blocks. 1. Place the freewheel lever into the engaged position. 2. Remove the key from the key switch. 3. Place the rear of the scooter onto blocks. 4.

  • Page 21: Throttle Pot

    Buzzaround XL_SG_REVA_100711 8. Install the throttle lever onto the new throttle pot. Circuit Breaker Button Cover 9. Install the new throttle pot onto the tiller shroud. 10. Connect the new throttle pot to the control panel harness. 11. Reinstall the back tiller shroud onto the tiller. 12.

  • Page 22: Battery

    Buzzaround XL_SG_REVA_100711 CIRCUIT BREAKER REPLACEMENT Tools needed: Slotted screwdriver, Phillips screwdriver, and adjustable wrench 1. Place the freewheel lever in the engaged position. 2. Remove the key from the key switch. 3. Remove battery pack. 4. Use an adjustable wrench to loosen the circuit breaker button cover. 5.

  • Page 23: Main Harness

    Buzzaround XL_SG_REVA_100711 MAIN HARNESS REPLACEMENT Tools needed: Phillips screwdriver and slotted screwdriver 1. Engage the park brake. 2. Remove the key from the key switch. 3. Remove the seat. 4. Remove the battery pack. 5. Lock the tiller. 6. Remove the control panel shroud. See #1 on gure 36. 7.

  • Page 24: Control Panel

    Buzzaround XL_SG_REVA_100711 CONTROL PANEL REPLACEMENT Tools needed: Phillips screwdriver and slotted screwdriver 1. Engage the park brake. 2. Remove the key from the key switch. 3. Remove the control panel shroud. See #1 on gure 36 on page 22. 4. Remove the four (4) screws that fastens the control panel to the tiller.

  • Page 25: Front Intermediate Harness

    Buzzaround XL_SG_REVA_100711 FRONT INTERMEDIATE HARNESS REPLACEMENT Tools needed: Phillips screwdriver, 7mm socket, 8mm socket or 8mm open end wrench Front APP connector Orange/Blue and Red/Black wires go to the Controller SIDE VIEW FRONT VIEW 1. Place the freewheel lever in the engaged position. 2.

  • Page 26: Rear Intermediate Harness

    Buzzaround XL_SG_REVA_100711 REAR INTERMEDIATE HARNESS REPLACEMENT Tools needed: Phillips screwdriver, 10mm socket, and 10mm open end wrench Rear APP connector Orange/Blue wires go to the Brake Red/Black wires go to the Motor SIDE VIEW FRONT VIEW 1. Place the freewheel lever in the engaged position. 2.

  • Page 27: Appendix A - How To Use A Voltmeter

    Buzzaround XL_SG_REVA_100711 APPENDIX A - HOW TO USE A VOLTMETER Step 1 Plug the probes into the meter. Red goes to the positive (+) and black to the negative (-). Step 2 Turn the selector dial or switch to the type of measurement you want. To measure direct current - a battery, for example - use DCV.

  • Page 28: Appendix B - How To Use An Ohm Meter

    Buzzaround XL_SG_REVA_100711 APPENDIX B - HOW TO USE AN OHM METER Ohm s law breaks down into the basic equation: Voltage = Current x Resistance. Current is generally measured in amps, and resistance in ohms. Testing the resistance on an electrical circuit in your home or car can help you diagnose problems with that circuit.

  • Page 29: Appendix C - Wiring Diagrams

    Buzzaround XL_SG_REVA_100711 APPENDIX C WIRING DIAGRAMS CIRCUIT BREAKER (1) SPEED POT INSIDE BATTERY PACK SWITCH CONTROL PANEL (12) BATTERY BATTERY BLACK Fuse BATTERY HARNESS (4) CHARGER HARNESS (14) DYNAMIC R-SERIES CONTROLLER MAIN THROTTLE HARNESS (7) POT (13) 13a FRONT POWER HARNESS (5) BLACK FRONT...
  • Page 30 Buzzaround XL_SG_REVA_100711 Connector 12b Battery Voltage Meter Power Key Switch (24VDC) TO MAIN HARNESS Buzzer (24VDC) 8 pin connector (female) Horn Button 25K Ohm Connector 12a (female) Speed Pot Connector (male) TO 5K OHM T-POT TO CHARGER HARNESS CONNECTOR CONTROL PANEL (12) 3 pin connector (male) Connector 13a TO CONTROL PANEL...
  • Page 31 Buzzaround XL_SG_REVA_100711 Connector 7b Connector 7a CONTROL PANEL TO DYNAMIC R-SERIES CONTROLLER MAIN HARNESS (7) TO MOTOR TO REAR INTERMEDIATE HARNESS (9) TO BRAKE MOTOR/BRAKE HARNESS FUSE TO BATTERY HARNESS TO CHARGER CHARGER HARNESS (14)

  • Page 32: Battery Box

    Buzzaround XL_SG_REVA_100711 TO FRONT INTERMEDIATE HARNESS (8) TO CHARGER HARNESS BATTERY BOX TO BATTERY (+) TO BATTERY (-) CIRCUIT BREAKER (1)

  • Page 33: Appendix D - Troubleshooting Flow Charts

    Buzzaround XL_SG_REVA_100711 APPENDIX D - TROUBLESHOOTING FLOW CHARTS SCENARIO 1: TURN THE KEY TO THE ON POSITION AND NO POWER Remove the battery pack. Measure voltage across terminals 1 and 24VDC or battery voltage? 0VDC? 3 on connector 4a on the battery pack. See figure 12.
  • Page 34 Buzzaround XL_SG_REVA_100711 Measure voltage across pin 3 0VDC? (black wire) and pin 8 (red wire) on connector 7b. See figure 15. 24VDC or battery voltage? Replace the main harness. Replace the control panel.
  • Page 35 Buzzaround XL_SG_REVA_100711 SCENARIO 2: BATTERIES WILL NOT CHARGE Remove the Plug the charger into Measure the voltage across the charger port and terminal 1 and terminal 3 on 4a. battery pack. then into a wall outlet. See figure 16. Yes? No? And there is no voltage.
  • Page 36 Buzzaround XL_SG_REVA_100711 BEEP CODE #4 - CURRENT LIMIT TIMEOUT Inspect the connection between the motor/brake assembly (10a) Remove the seat. Remove the battery pack. and the rear intermediate motor harness (9b). Are either connectors discolored or melted? Replace drivetrain assembly or rear Disconnect the motor (10a) intermediate motor from the rear intermediate...
  • Page 37 Buzzaround XL_SG_REVA_100711 Separate the front Inspect the front and rear frame from the intermediate motor drivetrain. harness connectors. Are they discolored or corroded? Replace as necessary. Take a quarter and slide it into each contact on the bottom side of the battery pack.
  • Page 38 Buzzaround XL_SG_REVA_100711 BEEP CODE 5: BRAKE FAULT Turn the key to the Disengage and then re- Turn the key to the off position. engage the park brake. on position. Did the beep code clear? Remove the four screws Remove Remove the that fasten the controller the seat.
  • Page 39 Buzzaround XL_SG_REVA_100711 Replace harness/es as necessary. Damaged? Inspect the connection between the front intermediate motor harness (8a) and the rear intermediate motor harness (9a). Make sure the contacts are not corroded or damaged. Check the front intermediate motor harness and the rear intermediate 10 ohms or less? Open? motor harness for continuity.
  • Page 40 Buzzaround XL_SG_REVA_100711 BEEP CODE #6 - PADDLE FAULT (OUT OF NEUTRAL) Make sure the paddle pot is not Move the throttle pot forward Turn the key to the obstructed and it can return to and then reverse. Make sure off position. the neutral (center) position.
  • Page 41 Buzzaround XL_SG_REVA_100711 BEEP CODE #7 - PADDLE FAULT/SPEED CONTROL FAULT (VOLTAGE ERROR) Remove Remove Remove the four Turn the Set your multimeter to the battery screws that fasten the the seat. speed pot to measure resistance. controller cover to the pack.
  • Page 42 Buzzaround XL_SG_REVA_100711 Disconnect the control panel harness (12a) from the throttle pot (13a). Insert multimeter probes into the throttle pot connector 2.5k ohms +/- 10%? Outside that range? (13a) at the blue wire and orange wire (outside two pins). See figure 25. Replace the throttle pot.

  • Page 43: Beep Code #8 - Motor Voltage Fault (Open/Shorted)

    Buzzaround XL_SG_REVA_100711 BEEP CODE #8 - MOTOR VOLTAGE FAULT (OPEN/SHORTED) Remove the battery Remove the four screws that Remove the seat. fasten the controller cover to the pack. underside of the scooter frame. Disconnect the front intermediate motor harness (8c and 8d) from the controller.
  • Page 44 Buzzaround XL_SG_REVA_100711 Replace the drivetrain assembly. Replace the controller. Measure resistance across pin 1 (thick red wire) and pin 2 (thick black wire) on Out of that range? 10a. See figure 29. 50 ohms or less but not shorted? NOTE: Can be as low as 0.2 ohms. Make sure that the pins are seated properly on 10a.

  • Page 45: Gb116

    Buzzaround XL_SG_REVA_100711 ILLUSTRATED PARTS BREAKDOWN Three Wheel Buzzaround XL Model GB116...
  • Page 46 Buzzaround XL_SG_REVA_100711 GB116D-STD-RB1-BLK ITEM PART NO. DESCRIPTION MBQ-LABELRPULLF-1 Label, Vinyl Pull for Forward and Reverse for GB106 AND GL110 Label, Max Load 300 Pounds for Compass GP600M, Companion MBQ-CO600ML GC240 and Buzz XL, GB116 SB3P535A Instruction label MBH-B2FBASK Basket, Front for Buzz GB106, Buzz XL GB116 and LiteRider GL110 SB3P536A Tiller warning label SE09E101...
  • Page 47 Buzzaround XL_SG_REVA_100711 Front Assembly (SE09E101) ITEM PART NO. DESCRIPTION Tiller, Complete Assembly with Basket Bracket not SE09E201 including Colored Plastic for Buzz XL GB116 SB3P132A Directional Label SB3A501A Tiller Adjust Knob SA2P001A Spring, Compression 2* 13*24 White Zinc 3110410452 Bolt, Hex M10*45 Black Zinc SE09P517 Right front cap/ bumper 3000405032...
  • Page 48 Buzzaround XL_SG_REVA_100711 Rear Assembly (SE09E102 ITEM PART NO. DESCRIPTION WE03P510 Cap, Brake Handle Yellow SE09E503 Panel, Rear Right Plastic Colored SE09E502 Shroud, Black Rear Assembly for Buzz Xl GB116 3110308042 Bolt, Hex Head Socket M*45L Black Zinc 3000408042 Washer, Flat 8.4* 16*1.6 Black Zinc SB3P137A Motor Bracket SE09P127...
  • Page 49 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION SB05P501 Cap, Rim for Buzz GB106 and Buzz XL GB116 3100312011 Nut, Nylon M12 White Zinc SB05P216 Washer, Flat 13* 31.5*1 Cover, Wheel Rear for Buzz GB106 January 2010 and SB05P502 Buzz XL GB116 Wheel, Assembly Rear Complete Solid Black for Buzz SB05A203 GB106 January 2010 and Buzz XL GB116...
  • Page 50 Buzzaround XL_SG_REVA_100711 Front Frame Assembly (SE09E103) ITEM PART NO. DESCRIPTION Knuckle, Lower Tiller for Buzz GB101/103/104/105/106, and MBB-BLOTIL Buzz XL GB116 SB2P505A Collar, Rubber for Lower Tiller 3000406072 Washer, Flat 6.2* 13*1.5 Black Zinc 3003106012 Washer, Spring 6 Black Zinc 3100206012 Nut, Cap M6 Black 3090400010...
  • Page 51 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3090400050 Cup, Bearing Top 30 SB2P203A Spring, Compression 1* 12*23.7L 65Mn 3002330010 Label, Tiller Lock Knob MBH-BTLK Knob, Tiller Locking (above wheel) for Buzz and Buzz Xl GB116 3110305012 Screw, Hex Head Socket M5*12L Black Zinc 3090400060 Cup, Bearing Bottom 30 3090400070...
  • Page 52 Buzzaround XL_SG_REVA_100711 Release Handle (SE09E104) ITEM PART NO. DESCRIPTION SE09P513 Cover, Handle SE09A103 Handle, Metal only 3110904081 Screw, Phillips Head Self Tapping ST4.2*16L White Zinc...
  • Page 53 Buzzaround XL_SG_REVA_100711 Rear Frame Assembly (SE09E105) ITEM PART NO. DESCRIPTION SE09P124 Cover Mounting Bracket Left A3 3110306011 Screw, Hex Head Socket M6*35L White Zinc SE09A104 Rear Locking Latch SE09P128 Spring, Compression 65Mn White Zinc SE09A602 Terminal, Rear Block SE09P530 Spacer 15*20L 3111006042 Screw, Phillips M6*35L Black Zinc 3111006052...
  • Page 54 Buzzaround XL_SG_REVA_100711 Tiller Assembly with Basket Hardware (SE09E201) ITEM PART NO. DESCRIPTION SE09E202 Tiller, Assembly SB3P521A Plate, Front Basket Mounting Plastic SB3P119A Bracket, Front Basket 3111005302 Screw, Phillips M5*30 Black Zinc SB3A503A Shell, Front Basket Mounting Plastic...
  • Page 55 Buzzaround XL_SG_REVA_100711 Tiller Assembly (SE09E202) ITEM PART NO. DESCRIPTION SE06A621 Cover, Dashboard Blue for Buzz GB106 January 2010 and LiteRider SE05P508BLUE GL110 Cover, Dashboard Red for Buzz GB106 January 2010 and LiteRider SE05P508RED GL110 SE06P221 Plug SE05P214 Missing From Drawing 3110804131 Screw, Self Tapping ST3.5*13 White Zinc SB05A202...
  • Page 56 Buzzaround XL_SG_REVA_100711 Front Wheel Assembly (SB05E203) ITEM PART NO. DESCRIPTION 3090106080 Bearing, 608-2Z SB2P208A Spacer SB05A201 Wheel, Front 8 Cover, Wheel Front for Buzz GB106 January 2010 and Buzz XL SB05P503 GB116 Tiller Handle (SB05E204) ITEM PART NO. DESCRIPTION 311408022 Screw, Hex Head M8*40L 8.8 Black Zinc SE05A205 Handle, Delta Tiller with Molded Grip for Buzz XL GB116...
  • Page 57 Buzzaround XL_SG_REVA_100711 Seat Assembly (SB05E401) ITEM PART NO. DESCRIPTION Arm, Assembly Left for LiteRider GL110 and Buzz GB106 January WC6E401A 2010 and Buzz XL GB116 WS61E100 Check with Ed. Description doesn t match picture 3002300020 Label, Fire 3002300030 Label, Material WC9P453A End Cap 32*32*2.5 3111308010...
  • Page 58 Buzzaround XL_SG_REVA_100711 Right Arm Assembly (SB05E402) ITEM PART NO. DESCRIPTION WC6A405A Pad, Arm for LiteRider GL110, Buzz GB106 and Buzz XL GB116 3110308072 Screw, Flat Head Socket M8*30L Black Zinc 3100108012 Nut, Hex M8 Black Zinc 3111706052 Screw, Lock Ø8/M6*33L Black Zinc WC6A401A Tube, Right Arm 3110106032...
  • Page 59 Buzzaround XL_SG_REVA_100711 Left Arm Assembly (WC6E401A) ITEM PART NO. DESCRIPTION WC6A405A Pad, Arm for LiteRider GL110, Buzz GB106 and Buzz XL GB116 3110308072 Screw, Flat Heat Socket M8*30L Black Zinc 3110106032 Screw, Flat Head Socket M6*12L Black Zinc 3100108012 Nut, Hex M8 Black Zinc 3111706052 Screw, Lock Ø8/M6*66L Black Zinc WC6A402A...
  • Page 60 Buzzaround XL_SG_REVA_100711 Seat Post Assembly (SE09E401) ITEM PART NO. DESCRIPTION SE099A401 Seat Post Metal Only SA2P419A Insert, Seat Post PA66 3000604022 Pin, Spring 4*6L Black Zinc...
  • Page 61 Buzzaround XL_SG_REVA_100711 Front Deck Assembly (SE09E501) ITEM PART NO. DESCRIPTION SE09P501 Panel, Front Deck Center Colored SE09P507 Shroud, Front Black Plastic Only for Buzz XL GB116 SE09P51 Panel, Right Colored SB3P526A Anchor, Carpet SE09P502 Deck, Front Black Plastic Only for Buzz XL GB116 SE09A601 Block, Terminal Blade Connector 31110050852...
  • Page 62 Buzzaround XL_SG_REVA_100711 Rear Shroud Assembly (SE09E502) ITEM PART NO. DESCRIPTION SE09A503 Handle, Rear Grab for Buzz XL GB116 3000325170 Velcro, Hook 25*20 SE09A504 Shroud, Rear Black for Buzz XL GB116 3000405031 Washer, Flat 5.5* 10*1 White Zinc 3110903032 Screw, Phillips Pan Head Self Tapping ST3.5*12L White Zinc 3110605052 Screw, Phillips Pan Head M5*16L White Zinc SE09P550...
  • Page 63 Buzzaround XL_SG_REVA_100711 Right Rear Panel Assembly (SE09E503) ITEM PART NO. DESCRIPTION SE09P510 Panel Right Rear Colored 3000325180 Velcro Loop 25*20 Left Rear Panel Assembly (SE09E504) ITEM PART NO. DESCRIPTION SE09P511 Panel left Rear Colored 3000325180 Velcro Loop 25*20...
  • Page 64 Buzzaround XL_SG_REVA_100711 Carpet Assembly (SE09E505) ITEM PART NO. DESCRIPTION SB3P524A Carpet Clip SE09P519 Carpet SB3P525A Carpet Anchor...
  • Page 65 Buzzaround XL_SG_REVA_100711 Battery Box Assembly (SE09E601) ITEM PART NO. DESCRIPTION SE09A505 Handle, Battery Box for Buzz XL GB116 SE09P503 Cover, Battery Box 3000404031 Washer, Flat 4* 8*0.8 White Zinc 3110604011 Screw, Phillips Pan Head M4*12L White Zinc SE09P540 Pad, 26*5 3052512010 Battery, 12V*12AH SE09P504...
  • Page 66 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3000404041 Washer, Flat 4.3* 8*0.5 White Zinc 3110604061 Screw, M4*40L White Zinc 3100511010 Nut, Waterproof 3000411010 Pad, t=0.5 MBE-B2CHARPC Cover, Charger Port for Buzz GB106 and Buzz XL GB116 3110602022 Screw, M2.5*12L Black Zinc MBE-B2CHARP Port, Charger for Buzz GB106 and Buzz XL GB116 3000402022...
  • Page 67 Buzzaround XL_SG_REVA_100711 Lower Dash Assembly with Paddle (SE05E601) ITEM PART NO. DESCRIPTION 3110103031 Screw, Flat Head Self Tapping ST3.5*16 White Zinc SE05E603 Paddle Assembly SE05P519 Panel, Lower Dashboard for Buzz XL GB116 3100102022 Nut, Hex M2.5 Black Zinc SE05A612 Port, Programming on Dash for Buzz XL GB116 3111002022 Screw, Phillips Head M2.5*12L Black Zinc...
  • Page 68 Buzzaround XL_SG_REVA_100711 HORN VOLT METER HORN BUTTON HEAT SHRINK TUBE KEY SWITCH SPEED POTENTIOMETER HEAT SHRINK TUBE Upper Dash Assembly (SE05E602) ITEM PART NO. DESCRIPTION SE06P511 Knob, Speed control SE05P509 Cover, Upper Dash SB3P608A Bracket 3110103011 Screw, Flat Head Self Tapping ST2.9*8 White Zinc SE05A601 Harness, Dash 3110902012...
  • Page 69 Buzzaround XL_SG_REVA_100711 TOCOS 5KVR (SE05E603) ITEM PART NO. DESCRIPTION 3111504022 Screw, Hex Set M4*6L Black Zinc Bracket SE05A602 Potentiometer SE05P511 Paddle, Plastic Only 3110704081 Screw, Flat Head M4*12 White Zinc...

  • Page 70: Gb146

    Buzzaround XL_SG_REVA_100711 ILLUSTRATED PARTS BREAKDOWN Four Wheel Buzzaround XL Model GB146...
  • Page 71 Buzzaround XL_SG_REVA_100711 Whole Unit Assembly (SF01E001) ITEM PART NO. DESCRIPTION SE05P518 Push/ Pull Decal SE1P526A Weight Limit 300 LBS Sticker SB3P535A Scooter manual instructions stickers SB3A106A Basket SB3P536A Tiller Warning Decal SF01E101 Front body assembly 3000325130 Velcro SB3A613A Battery Decal 3000325120 Velcro SE09E601...
  • Page 72 Buzzaround XL_SG_REVA_100711 Front Parts Assembly (SF01E101) ITEM PART NO. DESCRIPTION SE09P554 Serial number stickers SF01E201 Tiller Assembly SB3P132A Tiller Adjust Knob Sticker SB3A501A Tiller Adjust Knob SA2P001A Spring, Compression 2 * 13 * 24 White Zinc 3110410452 Bolt, Hex M10 * 45L Black SF01E102 Front frame assembly 3000404041...
  • Page 73 Buzzaround XL_SG_REVA_100711 Front Frame Assembly (SF01E102) ITEM PART NO. DESCRIPTION SE05P208 Tiller Knuckle Bottom SB2P505A Collar 3000406072 Washer, Flat 6.2 * 13 * 1.5 Black 3003106012 Spring washers 6 Black 3100206012 Nut, Cap M6 Black 3090400010 Nut, Black 3090400020 Gasket 3090400030 Cap, Bearing...
  • Page 74 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3090400040 Bearing ring 3090400050 Cup Bearing SA2P139A Plug, Rubber 3100312022 Nut, Nylon M12 Black 3110306012 Screw, Hex Socket M6 * 35L Black SB3P534A Decal SB2A201A Knob SB2P203A Spring, Compression 1 * 12 * 23.7L 3110305012 Screw, Hex Socket M5 * 12L Black SF01P503...
  • Page 75 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION SE09P532 Washer SE09A603 Motor Connector Front SE09P129 Pin, White Zinc SB05P501 Cap, Wheel Cover Silver 3110108031 Screw, Flat M5 * 12L White Zinc 3003105011 Washer, Spring 5 White Zinc 3000406022 Washer, Flat 6 * 19 * 1.5 White Zinc SF01E104 Wheel 8 3100305012...
  • Page 76 Buzzaround XL_SG_REVA_100711 8 Front Wheel Assembly (SF01E104) ITEM PART NO. DESCRIPTION 3090160010 Bearing, 6001-2Z SF01A501 Wheel, 8 SF01E502 8 Wheel Cover SF01P204 Spacer...
  • Page 77 Buzzaround XL_SG_REVA_100711 Frame Release Handle Assembly (SE09E104) ITEM PART NO. DESCRIPTION SE09P513 Release Handle Plastic Only SE09A103 Release Handle Metal Only 3110904081 Screw, Phillips Pan Self Tapping ST4.2 * 16L White Zinc...
  • Page 78 Buzzaround XL_SG_REVA_100711 Complete Tiller Assembly with Plastic and Wiring (SF01E201) ITEM PART NO. DESCRIPTION SE06A621 SE05P508 Dash Cover 3110803042 Screw, Phillips Self Tapping ST2.9 * 13L Black Zinc SE05E602 Dash Top SE06P221 Plug SF01A205 Tiller Assembly without Plastic SE05E601 Dash Bottom SB3A503A Front Basket Bracket Holder SB3P119A...
  • Page 79 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION SA2P519A Front Tiller Cover Black 3110306022 Screw, Hex Socket M6 * 40L Black Zinc SE05P207 Upper Tiller Knuckle 3003106012 Washer, Spring 6 Black Zinc 3100306012 Nut, Nylon M6 Black Zinc SE05P514 Rear Tiller Cover Black SF01A602 Main Wire Harness SB3P521A...
  • Page 80 Buzzaround XL_SG_REVA_100711 Rear Parts Assembly (SE09E102) ITEM PART NO. DESCRIPTION WE03P510 Brake Handle Cover SE09E503 Right Rear Colored Shroud Plastic SE09E502 Rear Shroud 3110308042 Bolt, Hex Socket M * 45L Black Zinc 3000408042 Washer, Flat 8.4 * 16 * 1.6 Black Zinc SB3P137A Motor Bracket Black SE09P127...
  • Page 81 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3100304012 Nut, Nylon M4 White Zinc 3110304012 Screw, Hex Socket M4 * 12L White Zinc SB05P501 3100312011 Nut, Nylon M12 White Zinc SB05P216 Gasket SB05E501 8" Wheel Cover SB05A203 8" Rear Wheel 3100308012 Nut, Nylon M8 Black Zinc SE09E105 Rear Frame with Anti-Tips 3000404051...
  • Page 82 Buzzaround XL_SG_REVA_100711 Rear Frame Assembly (SE09E105) ITEM PART NO. DESCRIPTION SE09P124 Transaxle Mounting Bracket Right 3110306092 Screw, Hex Socket M6 * 45L Black Zinc SE09A104 Latch, Release White Zinc SE09P128 Spring, Compression 65Mn White Zinc SE09A602 Rear Motor Connector SE09P530 Spacer 15*20L 3111006022 Screw, Phillips M6 * 30L Black Zinc...
  • Page 83 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3100308012 Nut, Nylon M6 Black Zinc SE09P150 Washer, Black SE09P149 Bracket SE09P557 Decal Rear Shroud with Grab Handle (SE09E502) ITEM PART NO. DESCRIPTION SE09A503 Rear Grab Handle 3000325170 Velcro SE09A504 Rear Shroud 3000405031 Washer, Flat 5.5 * 10 * 1 White Zinc 3110903031 Screw, Phillips Pan Self Tapping ST3.5 * 12L White Zinc 3110605011...
  • Page 84 Buzzaround XL_SG_REVA_100711 Right Rear Colored Plastic (SE09E503) ITEM PART NO. DESCRIPTION SE09P510 Right Rear Colored Plastic 3000325180 Velcro Left Rear Colored Plastic (SE09E504) ITEM PART NO. DESCRIPTION SE09P511 Left Rear Colored Plastic 33000325180 Velcro...
  • Page 85 Buzzaround XL_SG_REVA_100711 Deck Assembly Front and Mid Sections (SF01E501) ITEM PART NO. DESCRIPTION SF01P501 Front Deck SF01P506 Spacer SF01P505 Door, Cargo SSF01P502 Front Deck Colored Plastic SD01P550 Decal SE09P514 Right Colored Plastic Deck Piece 3000325180 Velcro 3000325170 Velcro SE09P502 Mid Deck Black Plastic Only SE09A601 Battery Connector 31110050852...
  • Page 86 Buzzaround XL_SG_REVA_100711 8" Front Wheel Cover with Ring (SF01E502) ITEM PART NO. DESCRIPTION 3003610010 Gasket SF01P511 8" Front Wheel Cover without Gasket Seat Assembly with Arms (SB05E401) ITEM PART NO. DESCRIPTION WC6E401A Left Arm Assembly WWS61E100 Seat 17 Raw 3002300020 Fire Decal 3002300030 Seat Material Decal...
  • Page 87 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION WC9P453A Plug 3111308020 Accessory Knob 3000406032 Washer, Flat Ø8.4 * Ø24 * 2 White Zinc 3003108011 Washer, Spring Ø8 White Zinc 3110408081 Bolt, Hex M8 * 25 White Zinc SE1E403B Seat Swivel Assembly SB05E402 Right Arm Assembly WC9P401A Arm Width Adjustment Knob...
  • Page 88 Buzzaround XL_SG_REVA_100711 Left Arm Assembly (WC6E401A) ITEM PART NO. DESCRIPTION WC6A405A Arm Pad 3110308072 Screw, Cap M8 * 30L Black Zinc 3110106032 Screw, Cap M6 * 12L Black Zinc 3100108012 Nut, Hex M8 Black Zinc 3111706052 Screw, Ø8/M6 * 66L Black WC6A402A Left Arm Tube...
  • Page 89 Buzzaround XL_SG_REVA_100711 Seat Swivel Assembly (SE1E403B) ITEM PART NO. DESCRIPTION SE1A401B Seat Swivel Plate Only 3000608012 Pin, Spring 8 * 63.5 Black Zinc SE1P530A Paddle Style Push Down Handle Cover SE1A404B Seat Swivel Lever SE1P413B Spacer SE1P424A Spring, Double Torsion 2.5 Black Zinc WC9P453A Plug...
  • Page 90 Buzzaround XL_SG_REVA_100711 Seat Post Assembly (SE09E401) ITEM PART NO. DESCRIPTION SE09A401 Seat Post Metal Only SA2P419A Seat Post Insert 3000604022 Pin, Spring 4 * 6L Black Zinc...
  • Page 91 Buzzaround XL_SG_REVA_100711 Battery Box Assembly with Grab Handle (SE09E601) ITEM PART NO. DESCRIPTION SE09A505 Battery Box Handle SE09P503 Battery Box Cover 3000404031 Washer, Flat 4 * 8 * 0.8 White Zinc 3110604011 Screw, Phillips Pan M4 * 12L White Zinc SE09P540 3052512010 Battery, 12V * 12AH...
  • Page 92 Buzzaround XL_SG_REVA_100711 ITEM PART NO. DESCRIPTION 3110604061 Bolt, Phillips Pan M4 * 40L White Zinc 3100511010 Circuit Breaker Cover 3000411010 Gasket SE09P518 Charger Port Cover 3110602022 Bolt, Phillips Pan M2.5 * 12L Black Zinc SE09A605 Charger Port 3000402022 Washer, Flat 2.7 * 6 * 0.5 Black Zinc 3100102022 Nut, Hex M2.5 Zinc Black SE09E603...
  • Page 93 Buzzaround XL_SG_REVA_100711 HORN VOLT METER HORN BUTTON HEAT SHRINK TUBE KEY SWITCH SPEED POTENTIOMETER HEAT SHRINK TUBE Upper Dash Assembly (SE05E602) ITEM PART NO. DESCRIPTION SE06P511 Speed Control Knob SE05P509 Dash Top Plastic Only SB3P608A Volt Meter Bracket 3110103011 Screw, Phillips Self Tapping ST2.9 * 8 White Zinc SE05A601 Dash Wire Harness 3110902012...
  • Page 94 Buzzaround XL_SG_REVA_100711 Paddle Assembly (SE05E603) ITEM PART NO. DESCRIPTION SE05A502 Plastic Paddle Only 3111504022 Screw, Hex Set M4 * 6L Black Zinc SE05A602 Potentiometer...
  • Page 95 Buzzaround XL_SG_REVA_100711...
  • Page 96 Buzzaround XL_SG_REVA_100711 Model GB146 Model GB116 Golden Technologies 401 Bridge Street Old Forge, PA 18518 www.goldentech.com BUZZAROUND XL_SERVMAN_REVA_100711...
