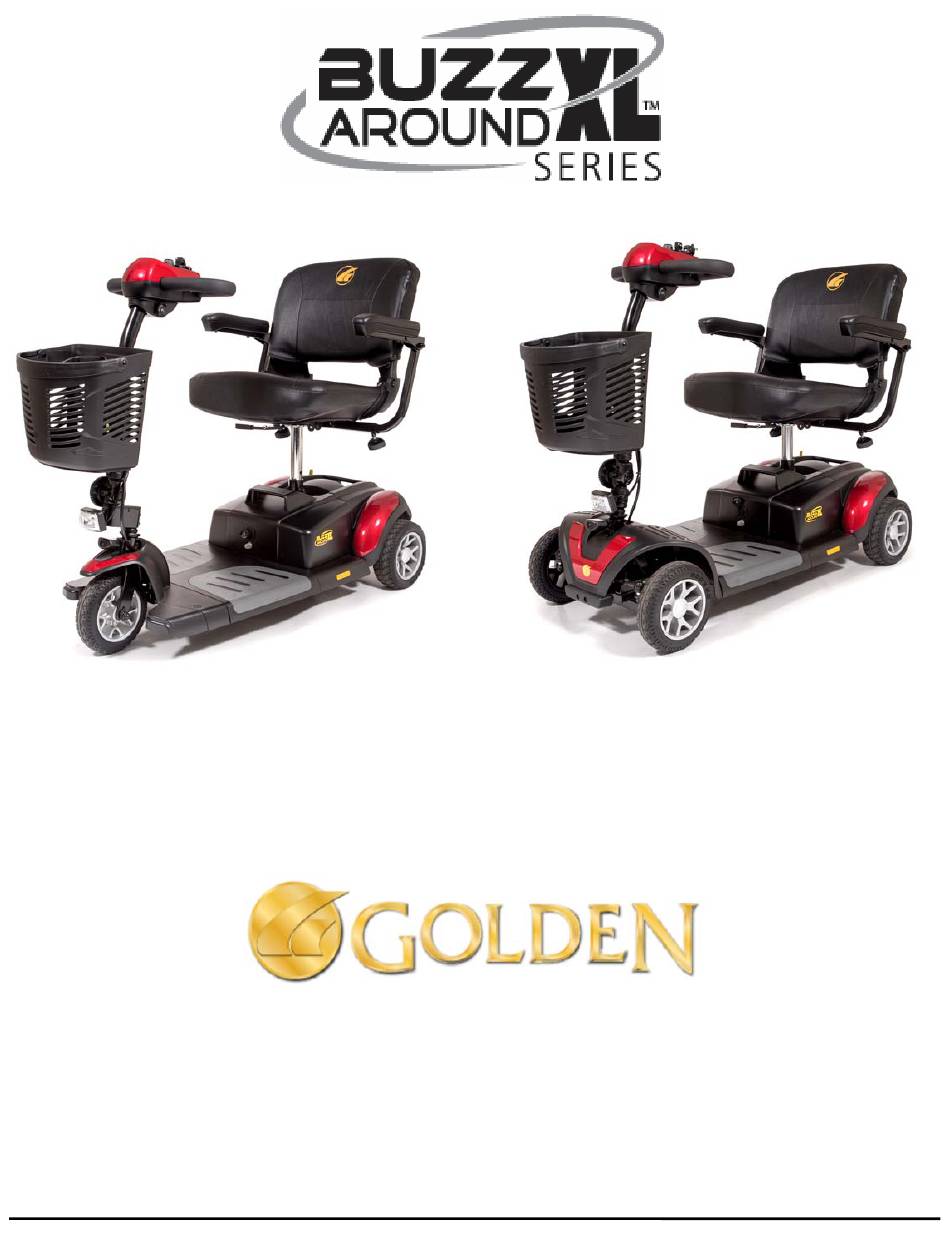

- Page 1 GB117 GB147 Owner’s Manual Buzzaround XL™ Series Golden Technologies - 401 Bridge Street - Old Forge, PA 18518 - Tel: 800-624-6374 - Fax: 800-628-5165 - www.goldentech.com...
- Page 2 2 ...
- Page 3 We ask that you read this manual completely before operating your new Buzzaround XL™. Golden Technologies, Inc. is not and cannot be held responsible for any damage or injury incurred due to improper or unsafe use of the Golden Buzzaround XL™...
-
Page 4: Table Of Contents
Intended Use: The intended use of the Buzzaround XL is to provide mobility to persons limited to a seated position that are capable of operating an electric scooter. CONTENTS I. INTRODUCTION............……………………………………5 Features and Benefits...…………………………………………………………………………..6 Accessories for the Buzzaround XL™ Scooter……………………………………………….7 II. -
Page 5: Introduction
XL™ combines cutting edge technology with attractive designs that are also highly functional in today’s world. We at Golden Technologies, Inc. know that you have chosen a scooter that will give you years of dependable operation and also will enhance the quality of your life by providing you with the mobility to experience an active daily lifestyle. -
Page 6: Features And Benefits
FEATURES AND BENEFITS Your Buzzaround XL™ scooter has been designed with your comfort in mind. It has also been designed to be a safe method of transportation when safety and operating instructions are followed. Please review the features and benefits of certain components of the Buzzaround XL™... -
Page 7: Accessories For The Buzzaround Xl™ Scooter
ACCESSORIES FOR THE BUZZAROUND XL™ SCOOTER: A variety of accessories are available for your Golden Buzzaround XL™ Scooter. Please contact your Authorized Golden Technologies Provider for more information or to order. • Cane Holder - Tube • Cup Holder •... -
Page 8: Safety
Before learning to operate your Buzzaround XL, have your authorized Golden Technologies, Inc. provider determine if it is advisable for you to practice getting on and off your scooter and operating it in the presence of an attendant. MANDATORY! Read completely and understand this owner’s manual before assembling, operating, transporting, or disassembling your Buzzaround XL scooter. - Page 9 • Whenever it is safely possible, drive forward down any ramp, low rise, or incline. Golden Technologies, Inc. does not recommend that you drive your scooter in reverse down any incline, ramp, curb, or low rise. Backing down any slope may create a very hazardous situation.
- Page 10 II. SAFETY When using either of the following procedures to back down a slope, Golden Technologies, Inc. strongly advises that you have the assistance of another person. Procedure 1 - Under Power 1. Set the key switch to the “Off” position. See section V. “Operation.”...
- Page 11 The more mobility your Golden Buzzaround XL brings to you, the happier you will be, and the more satisfied we at Golden Technologies, Inc. will be! But as with all things, especially motor operated vehicles, observing a few rules and safety considerations will help ensure safe scooter operation.
- Page 12 II. SAFETY RULES FOR USE AND OTHER SAFETY CONSIDERATIONS - continued Always use caution when driving on soft or uneven surfaces such as grass or gravel. Also use caution on decks where there is no railing. Never drive on the roadway, except when you must cross the street. ...
-
Page 13: Emi/Rfi
III. EMI/RFI The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (radio) waves that are emitted by television transmitters, cellular phones, citizen’s band radios (CBs), amateur radios (ham radios), wireless computer links, microwave transmitters, paging transmitters, etc. These electromagnetic (EM) waves are invisible and increase in strength the closer one gets to the source of transmission. -
Page 14: Your Golden Buzzaround Xl

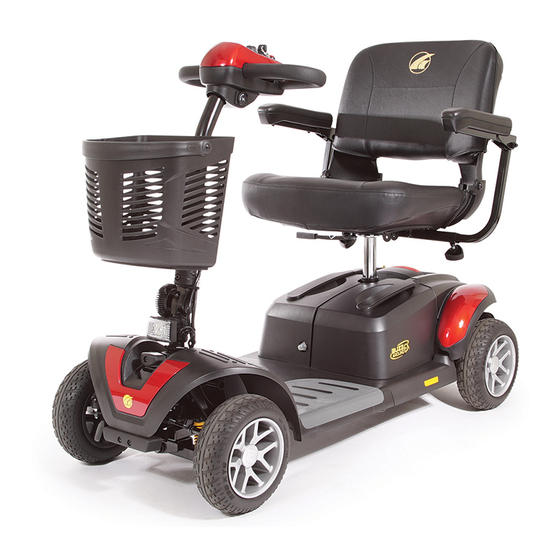

Figure 4. Your Golden Buzzaround XL™ (Model GB147SHD) FOR YOUR RECORDS Please fill in your Buzzaround XL’s information below. This information will be useful in the event that you ever need to contact Golden Technologies, Inc. concerning your scooter. Model ________________ Serial Number_________________________________________... -
Page 15: Specifications
2. Electronics warranty excludes batteries. 3. Assembled weight calculated with the standard battery pack 2-12 AH batteries on non-HD models. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time. - Page 16 2. Electronics warranty excludes batteries. 3. Assembled weight calculated with the standard battery pack 2-22 AH batteries on HD models. Literature is current at the time of printing. Golden Technologies reserves the right to make changes to the product or literature at any time.
-
Page 17: Operation
V. OPERATION Speed LED Battery Adjustment Meter Key Switch Throttle Control Lever Horn Button Figure 5. Buzzaround XL™ Delta Tiller Control Panel CONTROL PANEL Speed Adjustment Dial • The speed adjustment dial allows you to preselect the maximum top speed of your Golden Buzzaround XL. -
Page 18: Control Options
You will hear a “click” when the park brake engages. Control Options Golden Technologies, Inc. has made provision for the individual needs and abilities of the operators of the Golden Buzzaround XL. Your authorized Golden Technologies, Inc. provider can reverse the throttle control lever... -
Page 19: Seating
V. OPERATION SEATING Locknut Figure 6. Armrest Width Adjustment Figure 7. Armrest Angle Adjustment Armrest Width Adjustment To adjust the armrest width: 1. Loosen the adjustment knobs at the rear of the seat. See figure 6. 2. Slide the armrests in or out to the desired width. 3. - Page 20 V. OPERATION Figure 8: Seat Rotation Adjustment Seat Rotation Lever The seat can be rotated through 360° and locked at any 45° position. 1. Pull up on the seat rotation lever and rotate the seat to the desired position. See figure 8.
-
Page 21: Freewheel Mode
V. OPERATION Do not sit in or attempt to move your Buzzaround XL unless the frame and rear carriage are securely engaged. Accidental separation of the frame from the rear carriage may occur and cause injury or damage. Never sit on your Buzzaround XL in freewheel mode. -
Page 22: Riding Your Buzzaround Xl™ Scooter
VI. RIDING YOUR Buzzaround XL™ MOUNTING For your first driving session, make certain that your Buzzaround XL starts out on a level surface and that you will continue driving on a level surface. BEFORE GETTING ON YOUR BUZZAROUND XL™ 1. -
Page 23: Basic Driving
VI. RIDING YOUR Buzzaround XL™ BASIC DRIVING 1. Make certain that you are seated safely and properly on your Golden Buzzaround XL. 2. Turn the speed control dial fully counterclockwise to its slowest setting. 3. Insert the key into the key switch—if you have not already done so. 4. -
Page 24: Steering In Tight Spots
VI. RIDING YOUR Buzzaround XL™ Steering in a Tight Spot If you must steer in a tight spot, such as entering a doorway or when turning around: 1. Bring your Buzzaround XL to a full stop. 2. Set speed at the lowest setting. 3. - Page 25 VI. RIDING YOUR Buzzaround XL™ CONTROL THROUGH TIGHT SPOTS As you use your Golden Buzzaround XL to greatly increase your mobility, you will undoubtedly encounter some obstacles that will require practice to negotiate smoothly and safely. Below are some common obstacles that you may meet during the daily use of your scooter.
-
Page 26: Disassembly
VII. DISASSEMBLY DISASSEMBLY Your Buzzaround XL scooter is designed to be disassembled easily in order to be transported. When disassembling your scooter, please be sure to follow these simple instructions. Remove the Seat 1. Place your scooter on a level surface. Remove the key from the key switch before you begin to disassemble ... - Page 27 VII. DISASSEMBLY Fold Down and Lock the Tiller 6. Push in and turn the tiller lock clockwise 90 degrees. See #1 on figure 16. This will lock the front wheel to keep it from turning side to side to help control while carrying.
-
Page 28: Assembly
VIII. ASSEMBLY WARNING! Be aware of any possible pinch-points when connecting the rear frame to the front frame. Please note warning labels at pinch-points during assembly. WARNING! Pinching and crushing hazard! Increased hazards due to pinching or crushing result due to the component weight (such as batteries) during preparation for transport and maintenance work. - Page 29 VIII. ASSEMBLY Reinstall the Drivetrain 1. Line up the frame and the drivetrain. See figure 19. WARNING! WATCH FINGER PLACEMENT! BE CAREFUL NOT TO PINCH YOUR FINGERS! 2. Lower the frame onto the drivetrain until the drivetrain release lever engages. You should hear an audible click.
- Page 30 VIII. ASSEMBLY Raise the Tiller 4. Loosen the tiller adjustment knob and raise the tiller. See figure 22. 5. Tighten the tiller adjustment knob at the desired position. Tiller Basket Headlight On/Off Switch Tiller Adjustment Knob Tiller Lock Knob Figure 22.
- Page 31 VIII. ASSEMBLY Install the Seat 7. Hold the seat on an angle so you can see the seat swivel post underneath. 8. Place the seat swivel post into the seat post as shown in figure 23. 9. Push down on the seat to lock the seat in place. Move the seat from side to side to make sure it is locked in place.
-
Page 32: Transporting Your Buzzaround Xl
IX. TRANSPORTING YOUR Buzzaround XL™ Figure 24. Buzzaround XL™ (Model GB117SHD) All Golden Buzzaround XL scooters can be equipped with docking devices for loading onto a vehicle by means of a mechanical lift or hoist. Contact your Golden Technologies, Inc. provider for more information concerning docking devices and scooter lift devices. -
Page 33: Care And Maintenance
X. CARE AND MAINTENANCE ROUTINE MAINTENANCE Your scooter requires a minimal amount of care and maintenance. If you do not feel confident in your ability to perform the maintenance listed below, you can schedule an inspection and maintenance with your provider. ... -
Page 34: Batteries And Charging
X. CARE AND MAINTENANCE IMPORTANT! New batteries MUST be fully charged prior to the initial use of your scooter. Charge new batteries for 12 hours even if the battery gauge already shows a full charge. This is to condition your new batteries for maximum performance. WARNING! Corrosive chemicals contained inside the battery. -
Page 35: If Your Buzzaround Xl™ Does Not Operate
• Recharge your Buzzaround XL’s batteries. See “Charger and Batteries” in this section of this manual. • If the problem continues, have your authorized Golden Technologies, Inc. provider load test the batteries. • If the batteries are good, the charger may be the problem. Consult your authorized Golden Technologies, Inc. -
Page 36: Diagnostics
If the main circuit breaker continues to trip, there is probably an underlying electrical fault that needs attention. • Contact your authorized Golden Technologies, Inc. provider. • Do not keep resetting the main circuit breaker without correcting the underlying electrical problem. - Page 37 Remedy: • Turn off your Buzzaround XL’s key switch and allow the scooter to sit for 10 minutes. • Consult your authorized Golden Technologies, Inc. provider. 5 Flashes/Beeps • Indicates a brake problem. • The freewheel lever may be in the disengaged position. See page 21.
- Page 38 8 Flashes/Beeps • Indicates a motor voltage problem. • Your scooter will not operate until the problem is corrected. Remedy: Contact your authorized Golden Technologies, Inc. provider. 9 Flashes/Beeps • Indicates other internal errors or faults • Your scooter will not operate until the problem is corrected Remedy: Contact your authorized Golden Technologies, Inc.
-
Page 39: Warranty
GL109, GL111, GL141 Lifetime Limited Warranty: For the life of the scooter, from the date of purchase from an authorized Golden Technologies’ dealer, in the event of defective materials or workmanship, Golden Technologies will repair or replace at our option any... - Page 40 Seat Swivel Mechanism Items not listed are covered at the discretion of Golden Technologies. Any accessories, standard or optional, supplied by Golden Technologies, are covered for a period of one year from the date of purchase with the particular unit.
-
Page 41: Warranty/Registration Card
41 ... - Page 42 Fold Here First Place Stamp Here Golden Technologies 401 Bridge St. Old Forge, PA 18518 Fold Here Second 42 ...
- Page 43 43 ...
- Page 44 GB117SHD GB147SHD 401 Bridge Street Old Forge, PA 18518 Tel: 800-624-6374 Fax: 800-628-5165 www.goldentech.com ...
