Fresh air intake

In a well-insulated house, the air used up by the burning process has
to be replaced. This particularly applies to houses with mechanical
ventilation. There are different ways of making sure that an air
exchange takes place. The most important thing is to ensure that
there is a supply of air to the room where the wood stove is located.
The external wall vent must be located as close to the wood stove
as possible, and you must be able to close it when you are not using
the wood stove.
There are two kinds of air supply:
Air that enters the room from outside (fresh-air connection piece).
Air that is led directly into the stove's combustion chamber (external
combustion air).
National and local building regulations must be followed with
regard to the connection of fresh-air intake.

External combustion air

You can install the Scan 53 with external combustion air. This
requires a ventilation pipe with a diameter of at least 100 mm.
The ventilation pipe is not permitted to be closable using a valve.
• Ø100 mm ventilation pipe, max. length: 6 m with max. 1
bend.
A S S E M B LY

Fitting the fresh-air connection piece

The Scan 53 og Scan 53 wall-hung model can be connected using a
fresh-air connection piece. Installation of the fresh-air connection
piece is shown below.

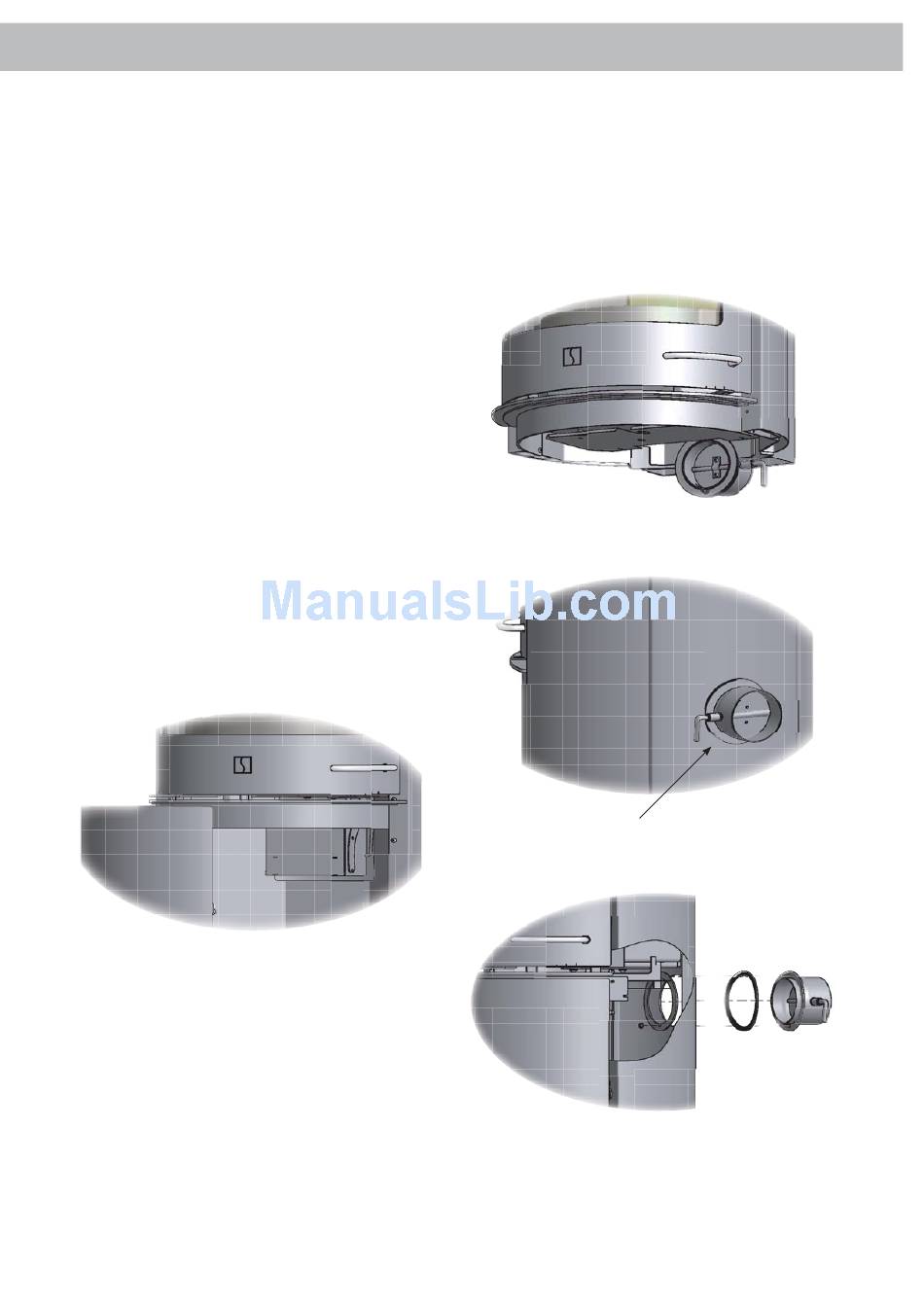

fresh-air connection piece
