A S S E M B LY- A N D I N S T R U C T I O N S M A N U A L

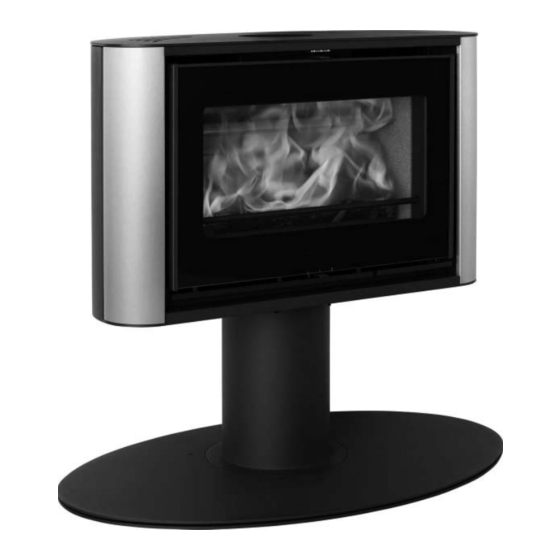

Scan 57
Congratulations on your new Scan wood-burning stove
You have purchased a product by one of Europe's leading manufacturer's of wood-burning stoves, and we are sure that you will have years of
pleasure with your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
Please read this Assembly- and instructions manual before you start to assemble your stove.
Make a note of your stove's product
registration number here so that you
have it available if you need to contact
us.
Test in compliance with
EN 13240
The EC declaration of conformity is available from www.scan.dk
Version:
GB 90157500-5
19.04.2010

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 57 and is the answer not in the manual?

Questions and answers

Related Manuals for SCAN 57

Summary of Contents for SCAN 57

  • Page 1 Test in compliance with EN 13240 Make a note of your stove’s product registration number here so that you have it available if you need to contact Version: GB 90157500-5 19.04.2010 The EC declaration of conformity is available from www.scan.dk...

  • Page 2: Table Of Contents

    TA B L E O F C O N T E N T S Table of contents Installation ....................... 3 Installation Technical data and dimensions Assembly ......................4 Dimension sketch Scan 57 Scan 57 variants Unpacking Service package Accessories Load bearing underlay...

  • Page 3: Installation

    Flue outlet flow: 7,5 g/sek To ensure best-possible functionality and safety for your installa- tion, we advise you to call a professional fitter. Our Scan Dealer will Recommended vacuum in flue collar: 16 Pa be able to recommend a qualified fitter in your area. For information...

  • Page 4: Assembly

    Service package The service package contains the following: • Fitting for flue collar (not used for this Scan model) • Seal • Safety fitting (not used for this Scan model) • Plastic plugs for transport safety hole at the bottom of the stove (not used for this Scan model) •...

  • Page 5: Load Bearing Underlay

    112: “Top mounted steel chimney” If you opt for the Scan 57 revolving base note the size and shape of points 3 and 4 and page 13 for an illustration.

  • Page 6: Positioning Your Wood-Burning Stove

    Parallel rear wall installation Revolving base If you have chosen the Scan 57 with revolving base, the wood-burning stove is delivered with restricted rotation (45°). Distance to furniture: 1100 mm But please check to avoid furniture or other furnishings being dried out due to being too close to the stove.

  • Page 7: Type Plate

    Type plate All Scan wood-burning stoves are fitted with a type plate, that If you have chosen to connect the Scan 57 with a rotating base, the specifies the approval standards and the distance to flammable accompanying brake must be fitted to control the rotation of the materials.

  • Page 8: Assembling The Base

    A S S E M B LY Assembling the base Rivets are used only if you have chosen to connect the Scan 57 with fixed base. Turn the pedestal joint to the rear. 4 x guide bushes 6 x axles for deep groove ball bearings...

  • Page 9: Adjusting Screws

    Adjusting screws The Scan 57 is equipped with 6 adjusting screws under the base of the wood-burning stove. The adjusting screws are fitted from above and are used to ensure the oven is level (use the key from the service pack provided). The regulating screws are used to ensure that the foot of the base lies flat to the surface.

  • Page 10: Fitting The Wood-Burning Stove To The Base

    Fitting the wood-burning stove to the base Fitting the flue collar The Scan 57 is equipped with 2 pointed screws on the bottom of the Lift the top plate from the stove and fit the flue collar, seal and oven. These may be used to guide the stove into place on the base.

  • Page 11: Fresh Air Intake

    National and local building codes must be followed with regard to the connection of a fresh air intake. Fresh air solution through base The Scan 57 can be connected to fresh air through the base. This is fitted as shown below. The label of the fresh air solution is fitted to the rear of the base.

  • Page 12: Chimney Connection, Revolving Base

    C H I M N E Y C O N N E C T I O N , R E V O LV I N G B A S E Best-possible working of your wood-burning stove with rotating plinth, will depend to a great extent on having the stove carefully installed by a properly trained fitter.
  • Page 13 C H I M N E Y C O N N E C T I O N , R E V O LV I N G B A S E Fig. 1 Fig. 2 Notches in the elbow bend / uninsulated first chimney section Max.

  • Page 14: Instruction For Use

    I N S T R U C T I O N F O R U S E CB Technology (Clean Burning) Secondary air Your wood-burning stove is fitted with CB technology. To ensure Secondary air is pre-heated and fed indirectly to the fire. At the same optimum burning of the gases released by the burning process, air time, the secondary airflow cleans the glass pane to avoid soot build- is guided by a specially developed system.

  • Page 15: Instructions For Heating

    We recommend the use of fire starters, or similar products, which setting the primary airflow to full power. Running the stove at too are available from your Scan dealer. Using fire starters helps to light low a temperature and with too little primary air can lead to defla- the wood quicker, and keeps the burning process clean.

  • Page 16: Handling Fuels

    I N S T R U C T I O N S F O R H E AT I N G Handling fuels While the stove is not in use you can close the damper to avoid drafts through the stove. Selecting Wood/Fuel After longer breaks you should check the smoke outlet paths for blockages before lighting.

  • Page 17: Maintenance

    Even if you follow all of our instructions, a slight film of soot can build up on the glass. You can easily remove this build up by cleaning with a dry cloth and glass cleaner. Your authorised Scan dealer stocks a special glass cleaner for this purpose.

  • Page 18: Troubleshooting

    Scan dealer with a warranty claim. • Check if the smoke gas pipe/chimney are blocked The warranty covers all parts which in the opinion of Scan A/S require • Is the chimney the right height for its surroundings? repair or replacement due to manufacturing or construction error •...
  • Page 20 Scan A/S - DK-5492 Vissenbjerg...
