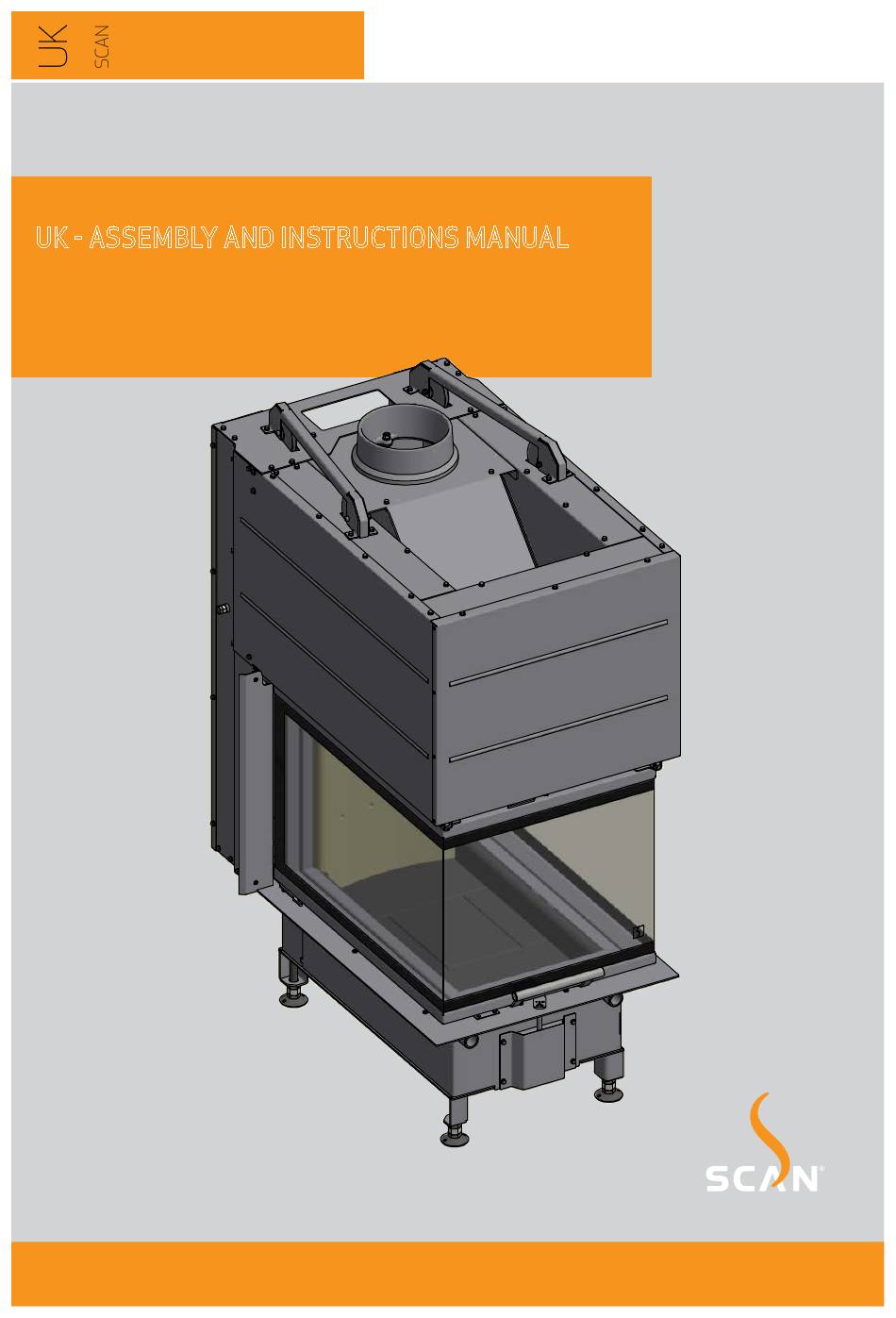

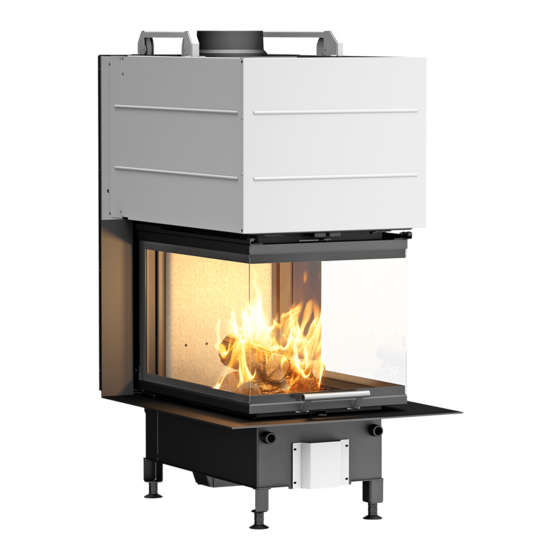

- Page 1 5005 FRL UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 5005 FRL ASSEMBLY AND INSTRUCTION MANUAL SCAN 5005 FRL...
- Page 2 5005 FRL CONGRATULATIONS ON YOUR NEW SCAN BUILT-IN STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-bur- ning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.
-
Page 3: Table Of Contents
CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch Scan 5005 FRL Safety Type plate Technical data and dimensions Product registrationumber ¬ ¬ ASSEMBLY Additional accessories Building into flammable material with fire wall Disposal of packaging Using the handling set Load-bearing foundation... -
Page 4: Technical Data
Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed. -
Page 5: Technical Data And Dimensions
Max. log length 50 cm No x @ 13% O mg/Nm Weight Scan 5005 FRL 280 kg Efficiency Weight Scan 5005 FRL w/ frame 320 kg Energy efficiency index 111,4 Flue conn. piece internal diameter 175 mm Energy efficiency class Flue conn. -
Page 6: Dimension Sketch Scan 5005 Frl
DIMENSION SKETCH SCAN 5005 FRL For light wall constructions. Height to the beginning of flue connecting piece at top outlet Height to the beginning of flue connecting piece at rear outlet Centre of fresh air intake - Inside measure: 132 mm, Outside measure: 149 mm Flue conn. - Page 7 DIMENSION SKETCH SCAN 5005 FRL WITH SUPPORT CONSTRUCTION For heavy wall constructions or wide non combustible fireplaces, that are thicker than 50 mm. Height to the beginning of flue connecting piece at top outlet Height to the beginning of flue connecting piece at rear outlet Centre of fresh air intake - Inside measure: 132 mm, Outside measure: 149 mm Flue conn.
-
Page 8: Type Plate
PRODUCT REGISTRATIONUMBER All Scan built-in stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S. -
Page 9: Assembly
EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating. -
Page 10: Requirements For Chimney
REQUIREMENTS FOR CHIMNEY The chimney must have a minimum internal diameter of 190 mm and have a T400 designation, with G for the soot fire test. The length must be min. 5 metres. If you opt to connect the built-in stove with an elbow pipe, you should use a curved elbow, as this gives a better draught. If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the horizontal part can be cleaned through here. -
Page 11: Building Into Flammable Material With Fire Wall
BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL Building in the Scan 5005 FRL against a flammable wall protected by a fire wall. Flammable material Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick or other material with corresponding fireproof and insulating abilities All distances are in mm. - Page 12 Lower convection opening Floor Installation with an insulated, vertical flue pipe - open structure/surround Opstillingsafstand Scan 5005 NAVN: EMNE: TG.NR: 95005004 Ceiling 19-02-2019 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005004.idw STI:...
-
Page 13: Using The Handling Set
USING THE HANDLING SET (ACCESSORY) You can buy a handling kit as an accessory. Install the four tubes through the holes in order to lift the built-in stove. Løftestangssæt, Scan 5005 FRL Scan 5005 FRL 95005027 NAVN: EMNE: TG.NR: DATO:... -
Page 14: Before Building The Insert
CLIPS FOR NORWAY (LARGE ROOMS) DATO: 19-08-2019 ATERIALE: VÆGT: SIGN: NB: Norway only! 3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005006.idw G ( 1 : 2 Mount the clips Scan 5005 Bolte i siden NAVN: EMNE: TG.NR: 95005006 DATO: 19-08-2019 MATERIALE: VÆGT:... -
Page 15: Fresh Air Intake
FRESH AIR BOX FOR FLOOR (ACCESSORY) A fresh air box is available as an accessory. For this box, you need a connection pipe (Ø 150 mm) which can be purchased in most D.I.Y.-stores. 335,5 Drawing Friskluftsadapter Scan 5005 01-02-2019 95005003 Stove: Name: Date: number:... -
Page 16: Door (Self-Closing)
14-11-2018 95005008 Stove: Name: Date: number: Constructed/Changed by: Material: Weight: Articlenumber: Area: SCAN A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005008.idw Path: Remove the disc from the counter- weight. Drawing Låge med selvluk Scan 5005 14-11-2018 95005008 Stove: Name: Date: number: Constructed/Changed by:... -
Page 17: Mounting Of The Heat Shields/Convection Covers
Place the heat shield on top of the stove Constructed/Changed by: and fasten it with the screws Weight: Area: SCAN A/S DK-5492 Vissenbjerg© Folder\Designs\Scan 5005\95005021.idw Ovn med varmeskjold Scan 5005 FRL Stove: Name: Date: Constructed Material: Weight: Articlenumber: Area: C:\Working Folder\Designs\Scan 5005\95005021.idw... -
Page 18: Frames
FRAMES (ACCESSORY) Scan 5005 FRL Item nr. 50054930... - Page 19 FRAMES (ACCESSORY) Scan 5005 FRL Item nr. 50054931...
- Page 20 FRAMES (ACCESSORY) Scan 5005 FRL Item nr. 50054932 Only for Scan 5005 FRL with support construction.
- Page 21 FRAMES (ACCESSORY) Scan 5005 FRL Item nr. 50054933 Only for Scan 5005 FRL with support construction.
-
Page 22: Convection Air
Fasten the metal frame with the six screws. Then mount the six magnets on the screws and place the convection grate on the magnets Montage af konventionsrist, Scan 5004 FR/FL og Scan 5004 95004039 TG.NR: NAVN: EMNE:... -
Page 23: Instructions For Use
When lighting the fire, the combustion air should be fully open. Closed Open Spjældregulering Scan 5005 95005011 NAVN: EMNE: TG.NR: 19-08-2019 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005011.idw STI:... -
Page 24: Instructions For Heating
LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan.dk or scan the QR-code. Please note that this Scan the QR-code video is only intended as a guide. -
Page 25: Continuous Operation
CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane. -
Page 26: General Notes
GENERAL NOTES PLEASE NOTE! Parts of the wood-burning stove, especially the outer surfaces, become hot during use. Due care should be exercised. ¬ Never empty ashes into a flammable container. Ashes can contain glowing embers long after you finish operating the stove ¬... -
Page 27: Selecting Wood/Fuel
HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st. -
Page 28: Sweeping The Chimney And Cleaning The Stove
CHECKING THE STOVE Scan A/S recommends that you check your stove thoroughly after sweeping/cleaning. Check all visible surfaces for cracks. Check that all joints are tight and that the gaskets are correctly seated. Worn or deformed gaskets should be replaced. -
Page 29: Gaskets
95005019 number: Articlenumber: Weight: Area: SCAN A/S Constructed/Changed by: Material: DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005018.idw Path: Weight: Articlenumber: Area: SCAN A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005019.idw Path: Place baffle fitting #3a on the edge of the chamotte plate #2. Place baffle fittings #3b and #3c on the inside of the... -
Page 30: Disposal Of Stove Parts
DISPOSAL OF STOVE PARTS Steel/cast iron Send for recycling Glass Dispose of as ceramic waste Combustion chamber lining Vermiculite and chamotte are not recyclable. Dispose of as waste Baffle plates Vermiculite and chamotte are not recyclable. Dispose of as waste Gaskets Dispose of as waste CLEANING THE GLASS... - Page 31 DK-5492 Vissenbjerg© EMNE: esigns\Scan 5005\95005023.idw MATERIALE: VÆGT: M3 NR.: DIM.: AREAL: Rengøring af glas Scan 5005 95005022 NAVN: EMNE: TG.NR: C:\Working Folder\Designs\Scan 5005\95005023.idw STI: DATO: 19-08-2019 MATERIALE: VÆGT: SIGN: 30052587 M3 NR.: DIM.: AREAL: Scan A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5005\95005022.idw...
- Page 32 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the built-in stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬...
- Page 33 You must quote your stove‘s product registration number when you contact us or your authorised Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
- Page 34 NOTES...
- Page 36 Product registration number Quote this number at all enquiries Edition: UK 95005500 10058385-P01 SCAN A/S Damsbovej 1 DK-5492 Vissenbjerg www.scan-stoves.com 23.09.2020...
