Positioning your wood-burning stove

The wood-burning stove must be set up so that the stove itself, the
flue pipe, and the chimney can all be cleaned.

Position in relation to non-flammable walls

When positioning near a non-flammable wall, keep a minimum
distance of 50mm between the rear of the product and the wall.

Distance to flammable walls

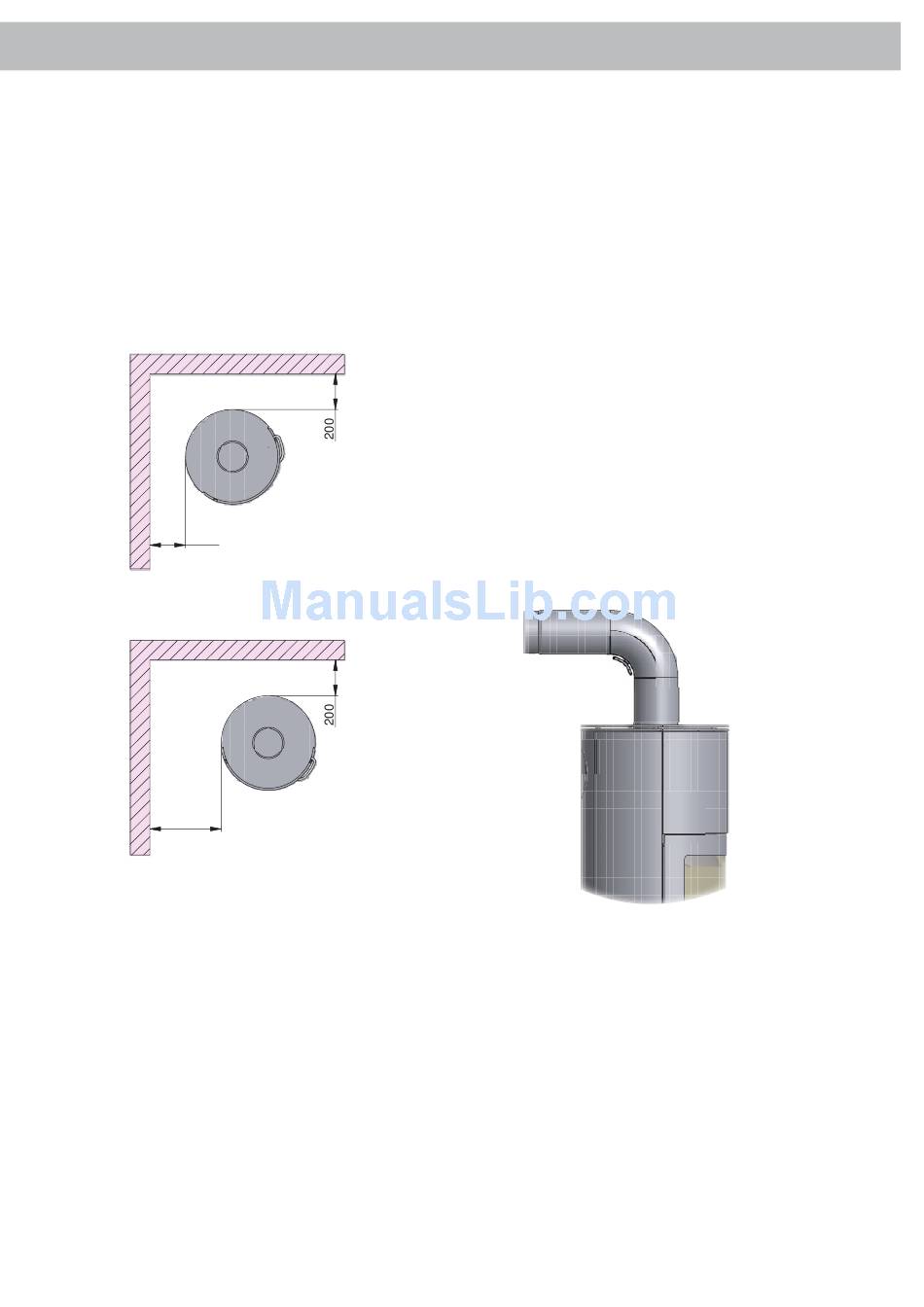

45° Corner installation
200
Parallel rear wall installation
400
Wall-hung model
Installation must be planned and executed in accordance with
national and local building regulations.
To ensure correct installation we recommend that a building expert
be commissioned to plan and outline the installation with a view to
subsequent approval.
For wall installation we recommend using the wall brackets sup-
plied.
If a chimney is installed on top of a wall-hung model, the chimney
must be fully self-supporting. It must not rest on the wood-burning
stove. Please consult a specialist.
Krog Iversen & Co. A/S disclaims all liability for the installation of
wall-hung wood-burning stoves.
Distance to furniture: 800 mm
But please check to avoid furniture or other furnishings being dried
out due to being too close to the stove.
A S S E M B LY

Connection between stove and steel chimney

Your Scan dealer, or local chimney sweep, can advise you on choosing
a make and type of steel chimney. This ensures that the chimney will
match your wood-burning stove. As a general rule, the length of the
flue should not be less than 3,5 m measured from the top of the
wood-burning stove.
Choosing the wrong length or diameter of steel chimney could
impair functionality.
Always observe the chimney vendor's instructions precisely.

Requirements for chimney

The chimney must be labelled T400 and G for soot testing.
Connection with 90° elbow pipe
If you intend to use an elbow pipe with the Scan 53 and Scan 53
wall-hung model, we recommend the use of a curved elbow pipe to
improve the draft.
The cleansing lid on the elbow pipe must be located in the verti-
cal section of the pipe to allow cleaning of the horizontal section
through the access cover.
