5004 FR
FL
/
UK - ASSEMBLY AND INSTRUCTIONS MANUAL

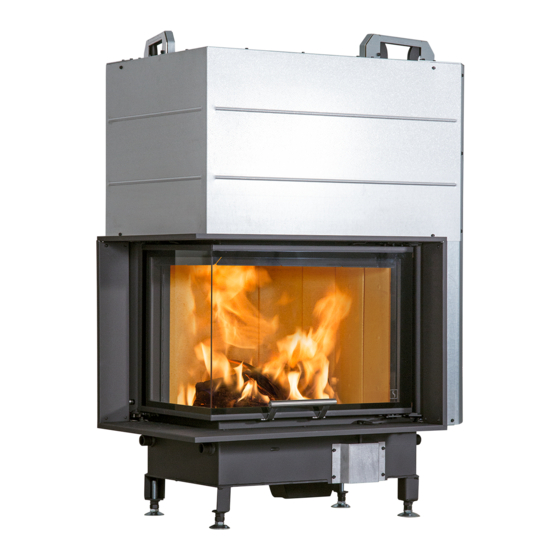

SCAN 5004 FR
FL
/
ASSEMBLY AND INSTRUCTION MANUAL SCAN 5004 FR
FL
/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5004 FR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SCAN 5004 FR

Summary of Contents for SCAN 5004 FR

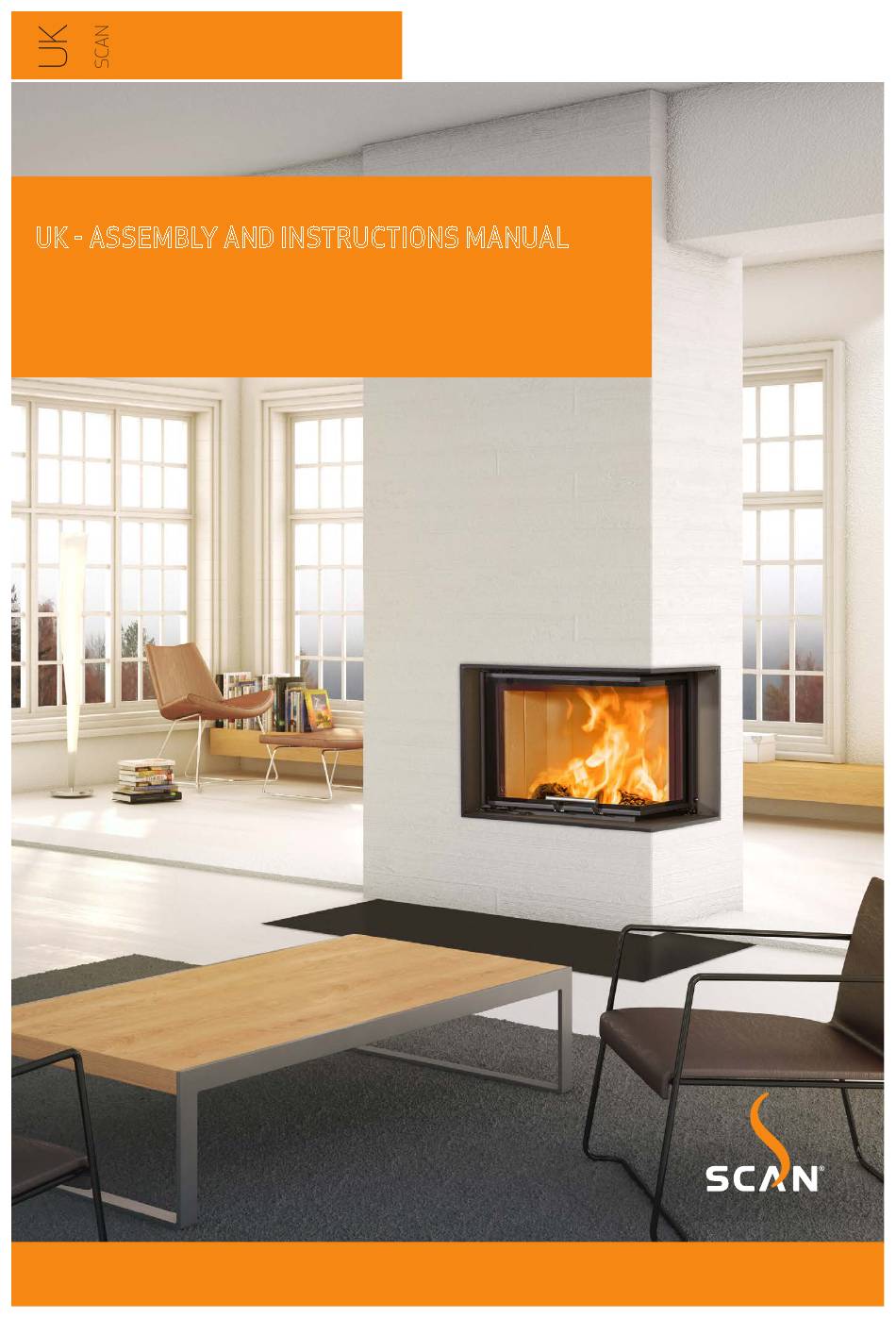

  • Page 1 5004 FR UK - ASSEMBLY AND INSTRUCTIONS MANUAL SCAN 5004 FR ASSEMBLY AND INSTRUCTION MANUAL SCAN 5004 FR...
  • Page 2 5004 FR CONGRATULATIONS ON YOUR NEW SCAN BUILT-IN STOVE You have purchased a product by one of Europe’s leading manufacturers of wood-bur- ning stoves, and we are sure that you will have years of pleasure from your purchase. To make the best possible use of your stove, it is important that you follow our advice and instructions.

  • Page 3: Table Of Contents

    CONTENTS ¬ ¬ TECHNICAL DATA Installation Dimension sketch Scan 5004 FR/FL Safety Type plate Technical data and dimensions Product registrationumber ¬ ¬ ASSEMBLY Additional accessories Before building the insert Disposal of packaging Fresh air intake Load-bearing foundation Closed combustion system...

  • Page 4: Technical Data

    Any changes made to the product by the dealer, fitter or user could result in the product and safety functions not functioning as intended. The same applies to the fitting of accessories or extra equipment not supplied by Scan A/S. This could also be the case if parts that are necessary for the operation and safety of the stove are dismantled or removed.

  • Page 5: Technical Data And Dimensions

    Surface treatment Senotherm Dust @ 13% O mg/Nm Max. log length 45 cm No x @ 13% O mg/Nm Weight Scan 5004 FR/FL 230 kg Efficiency Weight Scan 5004 FR/FL Energy efficiency index 114,3 241 kg w/heat shield Energy efficiency class Flue conn.

  • Page 6: Dimension Sketch Scan 5004 Fr/Fl

    DIMENSION SKETCH SCAN 5004 FR/FL Height to the beginning of flue connecting piece at top outlet Centre of fresh air intake - Inside measure: 133 mm, Outside measure: 149 mm Flue conn. piece - Inside measure: 175 mm, Outside measure: 200 mm All measures are in mm *NB –...

  • Page 7: Type Plate

    PRODUCT REGISTRATIONUMBER All Scan built-in stoves are provided with a product registration number. Please make a note of this number at the rear page of this manual; you will always need to quote it when contacting your dealer or Scan A/S.

  • Page 8: Assembly

    EXISTING CHIMNEY AND PRE-FABRICATED ELEMENT CHIMNEY If you intend to connect your stove to an existing chimney, it makes sense to contact an authorised Scan dealer, or a local chim- ney sweep, for advice. These experts will also let you know if your chimney needs renovating.

  • Page 9: Requirements For Chimney

    REQUIREMENTS FOR CHIMNEY The chimney must have a minimum internal diameter of 190 mm and have a T400 designation, with G for the soot fire test. The length must be min. 3,5 metres. If you opt to connect the bulit-in stove with an elbow pipe, you should use a curved elbow, as this gives a better draught. If you connect the stove with a sharp elbow pipe, the cleansing lid must be placed in the vertical part so that the horizontal part can be cleaned through here.

  • Page 10: Building Into Flammable Material With Fire Wall

    BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL Building in the Scan 5004 FR/FL with radiation shields against a flammable wall protected by a fire wall. Installation with an insulated, vertical flue pipe Flammable material - structure/surround to ceiling Fire wall, e.g. 50 mm Jøtul Firewall, 110 mm brick...

  • Page 11: Before Building The Insert

    BUILDING INTO FLAMMABLE MATERIAL WITH FIRE WALL The two cover plates in the front must be removed, when you build the stove into a flammable wall. L ( 1 : 6 ) Indbygning i brandmur,Scan 5004 FR/FL Scan 5004 95004016...

  • Page 12: Fresh Air Intake

    FRESH AIR INTAKE In a well-insulated house the air used for the combustion process has to be replaced. This particularly applies to houses with mechanical ventilation. There are different ways of making sure that air is exchanged. The most important thing is to ensure that there is a supply of air to the room where the built-in stove is located.

  • Page 13: Door (Self-Closing)

    14-11-2017 MATERIALE: VÆGT: DATO: SIGN: DIMENSION: AREAL: Krog Iversen & Co A/S DK-5492 Vissenbjerg© C:\Working Folder\Designs\Scan 5004\95004021.idw STI: Låge med selvluk, Scan 5004 FR/FL Scan 5004 95004022 NAVN: EMNE: TG.NR: Remount the cover plates with the screws. 14-11-2017 MATERIALE: VÆGT:...

  • Page 14: Clips For Norway (Large Rooms)

    Heat-storage stones are made from a special material with a high heat capacity. The stones are heated when the stove is on, A ( 1 : 3 ) re-releasing heat once it is off. This extends the time over which the stove remains warm. Spjæld clips til Norge,Scan 5004 FR/FL Scan 5004 95004017...

  • Page 15: Mounting Of The Heat Shields/Convection Covers

    MOUNTING OF THE HEAT SHIELDS/CONVECTION COVERS (ACCESSORY) Dismount the screws on the side of the fireplace Drawing Montage af varmeskjold, Scan 5004 FR Stove: Scan 5004 Name: Date: 03-01-2018 95004045 A ( 1 : number: Material: Constructed/Changed by: Weight: Articlenumber:...
  • Page 16 MOUNTING OF THE HEAT SHIELDS/CONVECTION COVERS (ACCESSORY) Dismount the screws at the rear of the stove Drawing Montage af varmeskjold, Scan 5004 FR 95004057 an 5004 03-01-2018 Name: Date: number: Constructed/Changed by: Weight: SCAN A/S Area: DK-5492 Vissenbjerg© Working Folder\Designs\Scan 5004\95004057.idw...
  • Page 17 MOUNTING OF THE HEAT SHIELDS/CONVECTION COVERS (ACCESSORY) Place the metal plate #2 at the rear of the stove Fasten metal plate #2 with the screws Drawing Montage af varmeskjold, Scan 5004 FR Scan 5004 03-01-2018 95004050 Stove: Name: Date: number:...
  • Page 18 MOUNTING OF THE HEAT SHIELDS/CONVECTION COVERS (ACCESSORY) Place the metal plate #3 at the rear of the stove Fasten metal plate #3 with the screws Drawing Montage af varmeskjold, Scan 5004 FR Scan 5004 03-01-2018 95004052 Stove: Name: Date: number:...

  • Page 19: Frames

    FRAMES (ACCESSORY)
  • Page 20 FRAMES (ACCESSORY) Scan 5004 FR Item nr. 50053077...
  • Page 21 FRAMES (ACCESSORY) • • Scan 5004 FR Item nr. 50053078 � 4 l!I 95004067 Scan 5004 FR FRAME, Item 04 FR FRAME, Item nr. 50053078 • • • • • • • • � � � 4 l!I...
  • Page 22 FRAMES (ACCESSORY) Scan 5004 FL Item nr. 50053079...
  • Page 23 FRAMES (ACCESSORY) Scan 5004 FL Item nr. 50053080...

  • Page 24: Braces

    BRACES (ACCESSORY)
  • Page 25 1 : 2 BRACES (ACCESSORY) Scan 5004 FR INSTALLATION HOLDER, Item nr. 50053081 <X) Scan 5004 FR Item nr. 50053081 • 1 : 1 1 : 2 � 1 : 1 � • Scan 5004 FR I • Scan 5004 FR INS Scan 5004 FR I 1 0 .
  • Page 26 "v- "v- Scan 5004 FR INSTALLATION HOLDER, BRACES (ACCESSORY) Item nr. 50053082 � Scan 5004 FR Item nr. 50053082 1 : 1 1 : 1 Scan 5004 FR Scan 5004 FR I Scan 5004 FR 1 0 . 5 95004069 1 0 .
  • Page 27 � � � � � 04 FR INSTALLATION HOLDER, Item nr. 50053083 BRACES (ACCESSORY) Scan 5004 FR Item nr. 50053083 � � � �� 1 • 1 � � Scan 5004 FR INSTALLATION HOLDE Scan 5004 FR INSTALLATION H 95004070 Scan 5004 FR INSTALLATIO 1 0 .
  • Page 28 5 31 . 8 � 1 : 2 BRACES (ACCESSORY) Scan 5004 FL • INSTALLATION HOLDER, 1026 Item nr. 50053084 Scan 5004 FL Item nr. 50053084 1 0 . 5 x"o � � � 1 : 2 1 : 1 •...
  • Page 29 5 31 . 8 � 1 : 2 � BRACES (ACCESSORY) Scan 5004 FL 1026 INSTALLATION HOLDER, Scan 5004 FL Item nr. 50053085 Item nr. 50053085 1 0 . 5 5 31 . 8 � 1 : 1 1 : 2 �...
  • Page 30 1 : 2 BRACES (ACCESSORY) Scan 5004 FL INSTALLATION HOLDER, Item nr. 50053086 Scan 5004 FL Item nr. 50053086 'Y"o 1 : 2 5004 FL INSTALLATION HOLDER, nr. 50053086 1 : 1 0 Scan 5004 FL INSTALLATION HOLDER, Item nr. 50053086 95004075 'Y"o...

  • Page 31: Convection Air

    Fasten the metal frame with the six screws. Then mount the six magnets on the screws and place the convection grate on the magnets Montage af konventionsrist, Scan 5004 FR/FL og Scan 5004 95004039 TG.NR: NAVN: EMNE:...

  • Page 32: Instructions For Use

    At the same time, the air flow cleans the glass pane to prevent buid-up of soot. If there is a soot formation on the glass, this is often due to the fact that the combustion air is turned too much down. When lighting the fire, the combustion air should be fully open. Closed Open Spjældregulering, Scan 5004 FR Scan 5004 95004013 NAVN: EMNE: TG.NR:...

  • Page 33: Instructions For Heating

    LIGHTING We recommend the use of fire lighters, or similar products, which are available from your Scan dealer. Using fire lighters helps light the wood more quickly and keeps the combustion process clean. See our video about correct firing on www.scan.dk or scan the QR-code.

  • Page 34: Continuous Operation

    CONTINUOUS OPERATION It is important to obtain as high a temperature as possible in the combustion chamber. This results in best possible use of the stove and fuel, as well as achieving clean combustion. In this way you will avoid build-up of soot on the combustion chamber lining and glass pane.

  • Page 35: Selecting Wood/Fuel

    HANDLING OF THE FUEL SELECTING WOOD/FUEL You can use any type of wood as fuel. However harder woods, such as beech or ash, are generally better for heating, as they burn more evenly and create less ash. Other woods, such as maple, birch and spruce, are excellent alternatives. PREPARATION The best fuel is obtained where the tree has been felled and the wood sawn and split before May 1st.

  • Page 36: Sweeping The Chimney And Cleaning The Stove

    CHECKING THE STOVE Scan A/S recommends that you check your stove thoroughly after sweeping/cleaning. Check all visible surfaces for cracks. Check that all joints are tight and that the gaskets are correctly seated. Worn or deformed gaskets should be replaced.

  • Page 37: Gaskets

    Place the chamotte plates #4a, #4b, #4c and #4d place the fittings for chamotte plate #2a, #2b, #2C and #2d 2a 2b Place the chamotte plates #3a and #3b Place baffle fitting #9 and the upper baffle plate #8 Scan 5004 FR/FL Brandkammerforing NAVN: EMNE: TG.NR: 95004085...

  • Page 38: Disposal Of Stove Parts

    The glass cleaner must not come into contact with the painted surfaces, as these can be damaged. In order to be able to clean the glass on the inside, you must first pull out the glass frame. Pull out the two dampers over the glass Rengøring af glas Scan 5004 NAVN: EMNE: MATERIALE:...
  • Page 39 CLEANING THE GLASS Pull out the two levers over and under the front glass. F ( 1 : 3 ) F ( 1 : 3 ) Rengøring af glas, Scan 5004 FR Scan 5004 95004078 NAVN: EMNE: TG.NR: 05-01-2018 MATERIALE: VÆGT:...
  • Page 40 TROUBLESHOOTING SMOKE ESCAPING ¬ Damp wood ¬ Chimney not drawing properly ¬ Chimney is not properly dimensioned for the built-in stove ¬ Check if the smoke gas pipe/chimney are blocked ¬ Is the chimney the right height for its surroundings? ¬...
  • Page 41 You must quote your stove‘s product registration number when you contact us or your authorised Scan dealer with a warranty claim. The warranty covers all parts which in the opinion of Scan A/S require repair or replacement due to manufacturing or construc- tion error The warranty applies to the original purchaser of the product only, and is not transferable (except on prior sale).
  • Page 42 NOTES...
  • Page 44 Product registration number Quote this number at all enquiries Edition: UK 95004501 SCAN A/S Glasvænget 3-9 DK-5492 Vissenbjerg www.scan.dk 10.10.2018...
