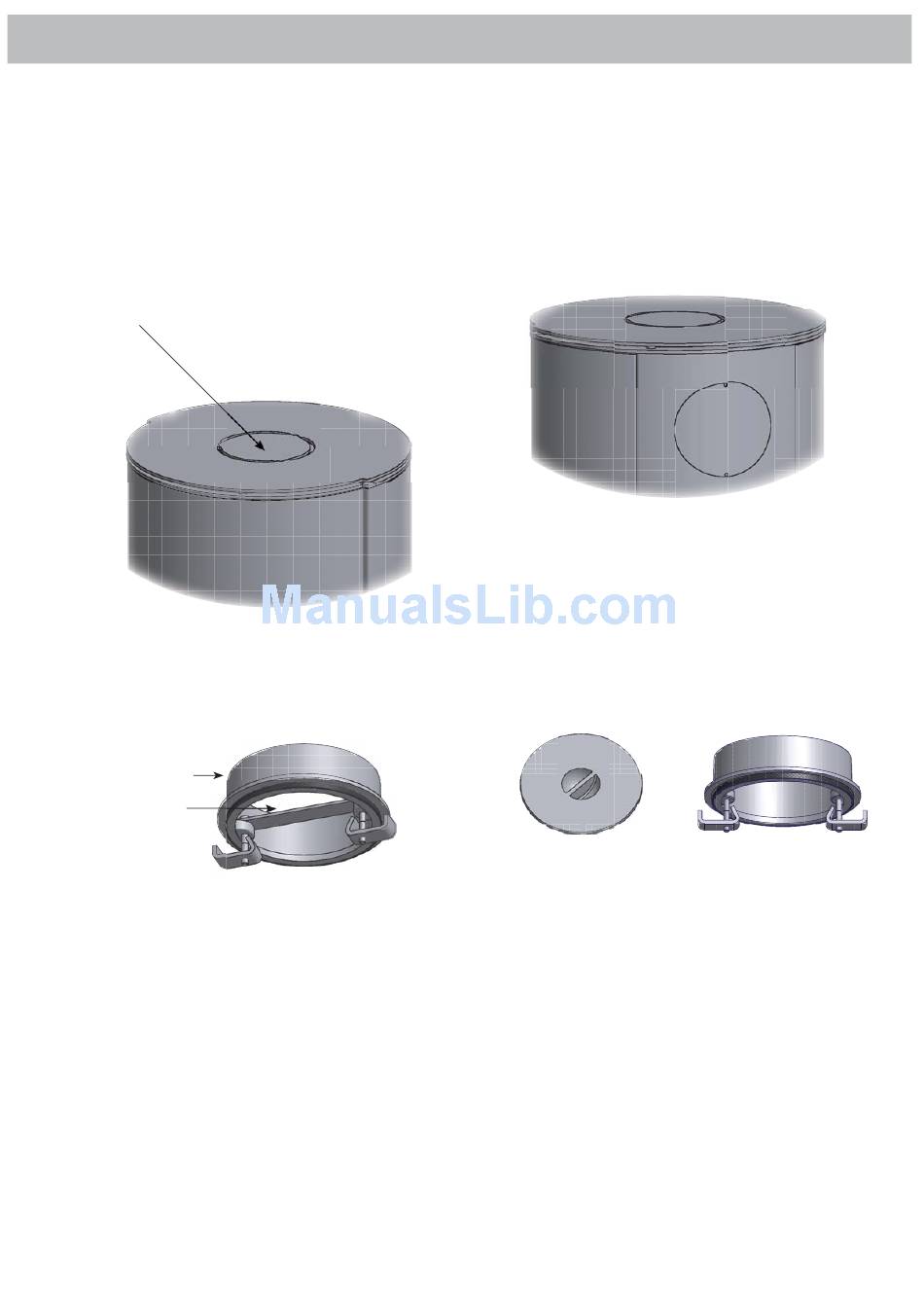

Flue collar top outlet

Your wood-burning stove has been prepared for a top outlet by the
manufacturer. Remove the cover plate from the top plate, and fit
the flue collar, the enclosed seal, and the fittings from the service
package. At the same time, fix the safety fitting crosswise to prevent
damage to the smoke deflector plate when sweeping the chimney.
Cover plate
Flue collar
Safety fitting
A S S E M B LY

Preparing the stove for rear outlet

To connect the flue pipe, remove the cover plate as follows:
1. Tilt the cover plate back and forth a couple of times to release
and remove.
2. Loosen the internal cover
(boiler plate) from the
inside and remove.
You will need this plate
later as a seal and a cover
for the top outlet.
Insert the cover plate into the hole in the top plate.
4.
7
3. Attach the loose collar
from the outside and use
the enclosed fittings and
the seal from the service
package to fix in place.
