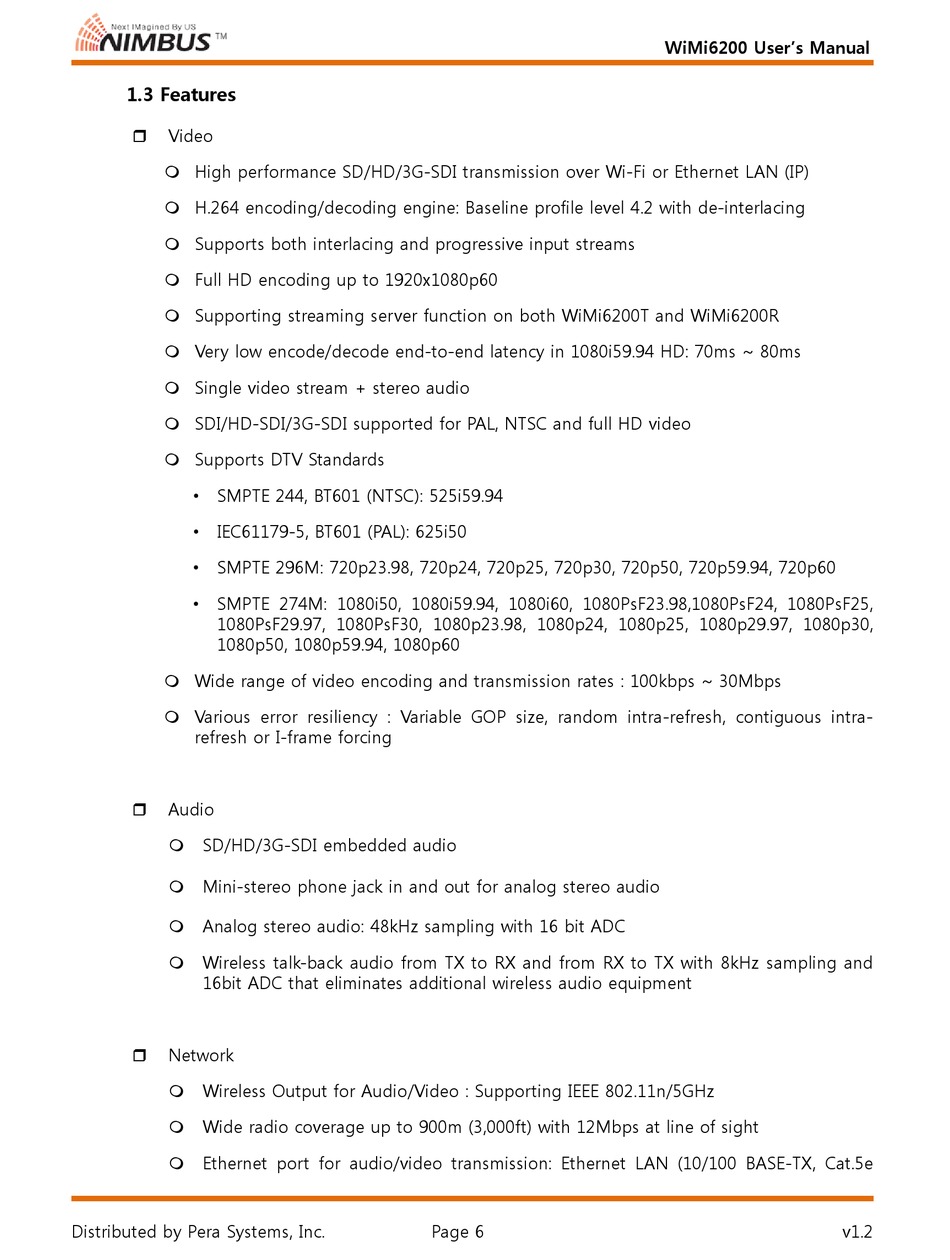

1.3 Features
 Video
 High performance SD/HD/3G-SDI transmission over Wi-Fi or Ethernet LAN (IP)
 H.264 encoding/decoding engine: Baseline profile level 4.2 with de-interlacing
 Supports both interlacing and progressive input streams
 Full HD encoding up to 1920x1080p60
 Supporting streaming server function on both WiMi6200T and WiMi6200R
 Very low encode/decode end-to-end latency in 1080i59.94 HD: 70ms ~ 80ms
 Single video stream + stereo audio
 SDI/HD-SDI/3G-SDI supported for PAL, NTSC and full HD video
 Supports DTV Standards
• SMPTE 244, BT601 (NTSC): 525i59.94
• IEC61179-5, BT601 (PAL): 625i50
• SMPTE 296M: 720p23.98, 720p24, 720p25, 720p30, 720p50, 720p59.94, 720p60
• SMPTE 274M: 1080i50, 1080i59.94, 1080i60, 1080PsF23.98,1080PsF24, 1080PsF25,
1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080p50, 1080p59.94, 1080p60
 Wide range of video encoding and transmission rates : 100kbps ~ 30Mbps
 Various error resiliency : Variable GOP size, random intra-refresh, contiguous intra-
refresh or I-frame forcing
Audio

 SD/HD/3G-SDI embedded audio
Mini-stereo phone jack in and out for analog stereo audio

Analog stereo audio: 48kHz sampling with 16 bit ADC

Wireless talk-back audio from TX to RX and from RX to TX with 8kHz sampling and

16bit ADC that eliminates additional wireless audio equipment
Network

 Wireless Output for Audio/Video : Supporting IEEE 802.11n/5GHz
 Wide radio coverage up to 900m (3,000ft) with 12Mbps at line of sight
Ethernet port for audio/video transmission: Ethernet LAN (10/100 BASE-TX, Cat.5e

