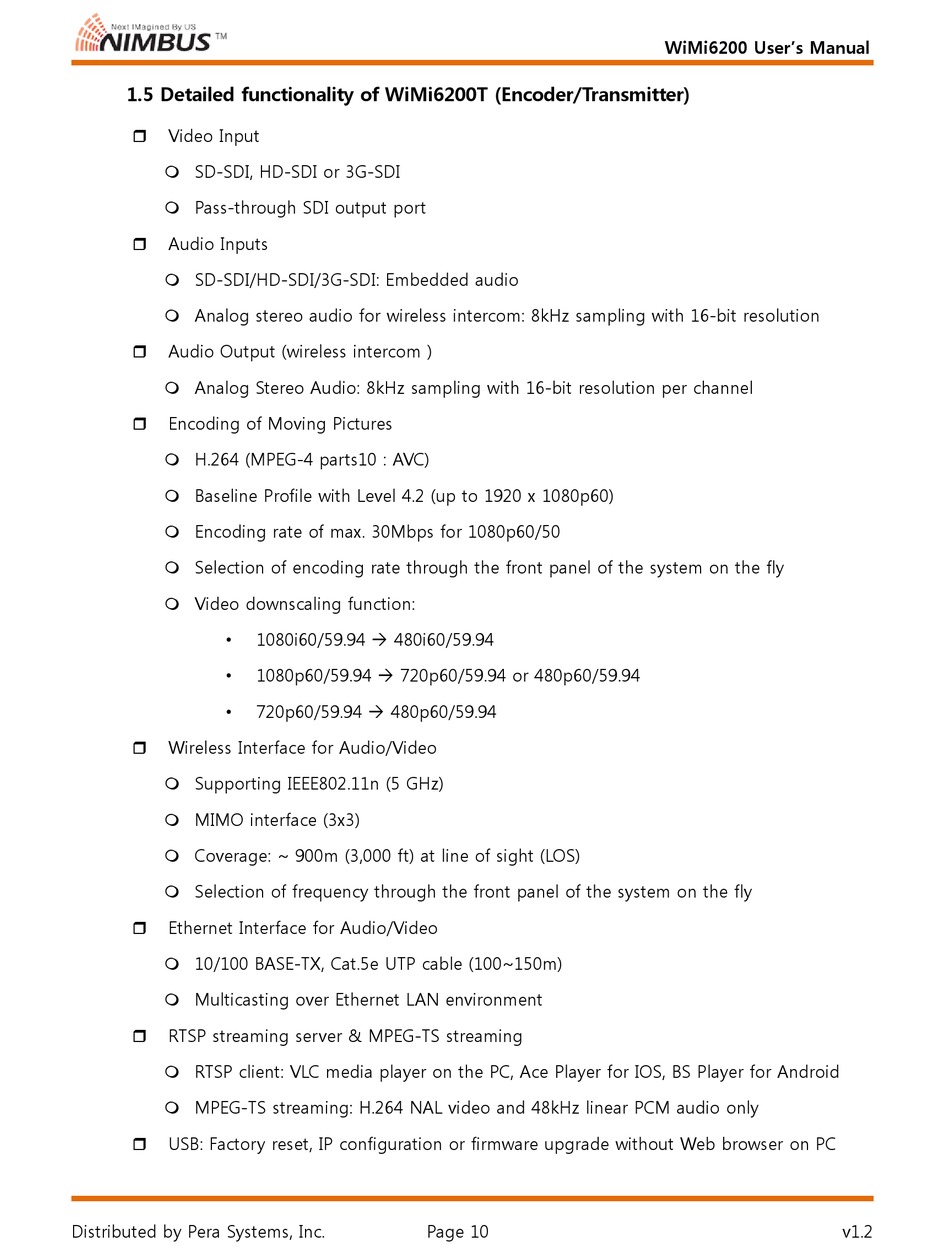

1.5 Detailed functionality of WiMi6200T (Encoder/Transmitter)
 Video Input
 SD-SDI, HD-SDI or 3G-SDI
 Pass-through SDI output port
Audio Inputs

 SD-SDI/HD-SDI/3G-SDI: Embedded audio
 Analog stereo audio for wireless intercom: 8kHz sampling with 16-bit resolution
Audio Output (wireless intercom )

 Analog Stereo Audio: 8kHz sampling with 16-bit resolution per channel
Encoding of Moving Pictures

 H.264 (MPEG-4 parts10 : AVC)
 Baseline Profile with Level 4.2 (up to 1920 x 1080p60)
 Encoding rate of max. 30Mbps for 1080p60/50
 Selection of encoding rate through the front panel of the system on the fly
 Video downscaling function:
•
•
•
Wireless Interface for Audio/Video

 Supporting IEEE802.11n (5 GHz)
 MIMO interface (3x3)
 Coverage: ~ 900m (3,000 ft) at line of sight (LOS)
 Selection of frequency through the front panel of the system on the fly
Ethernet Interface for Audio/Video

 10/100 BASE-TX, Cat.5e UTP cable (100~150m)
 Multicasting over Ethernet LAN environment
RTSP streaming server & MPEG-TS streaming

 RTSP client: VLC media player on the PC, Ace Player for IOS, BS Player for Android
 MPEG-TS streaming: H.264 NAL video and 48kHz linear PCM audio only
 USB: Factory reset, IP configuration or firmware upgrade without Web browser on PC
Distributed by Pera Systems, Inc.
1080i60/59.94  480i60/59.94
1080p60/59.94  720p60/59.94 or 480p60/59.94
720p60/59.94  480p60/59.94
