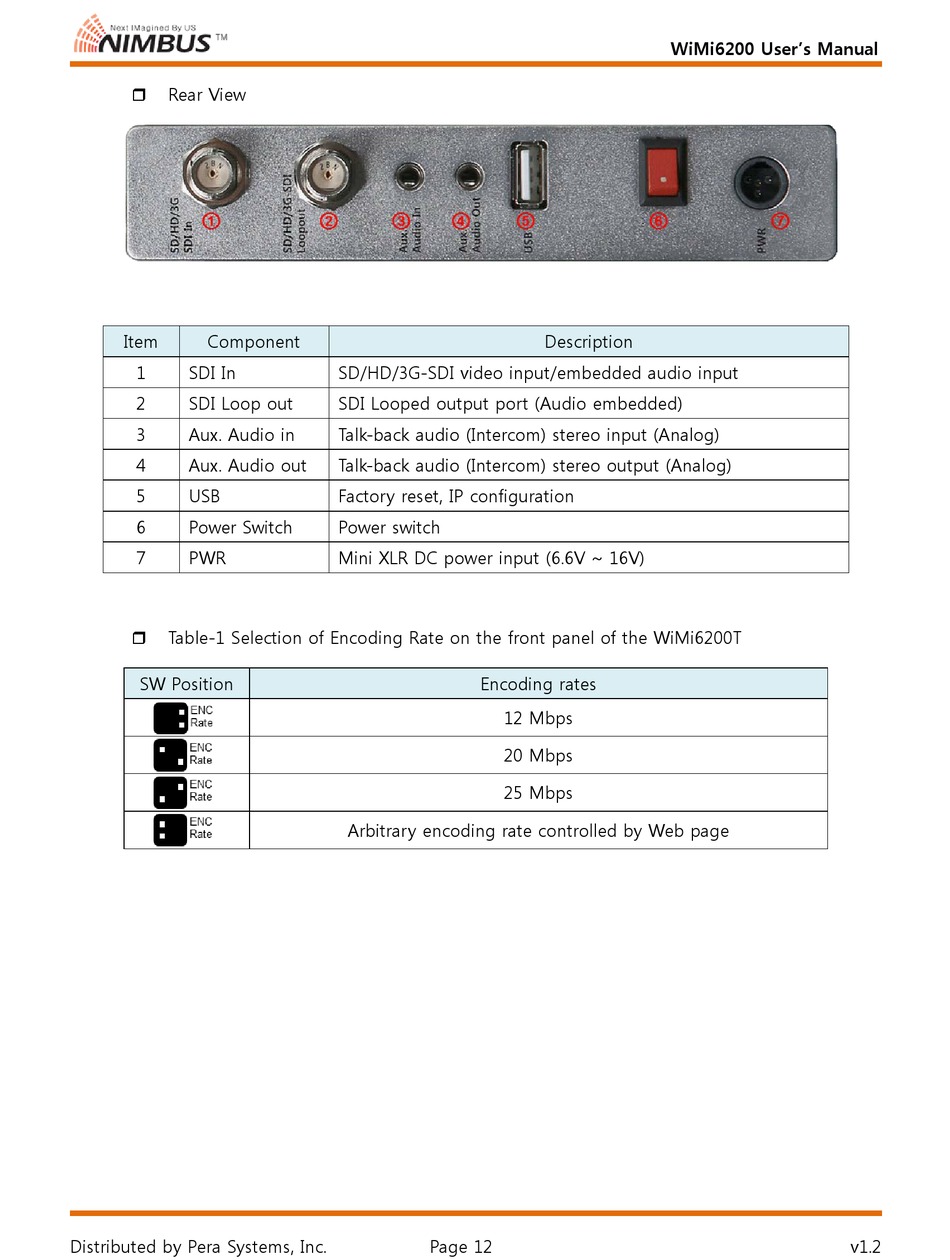

 Rear View
Item Component
1 SDI In
2 SDI Loop out
3 Aux. Audio in
4 Aux. Audio out
5 USB
6 Power Switch
7 PWR
Table-1 Selection of Encoding Rate on the front panel of the WiMi6200T

SW Position
Distributed by Pera Systems, Inc.
SD/HD/3G-SDI video input/embedded audio input
SDI Looped output port (Audio embedded)
Talk-back audio (Intercom) stereo input (Analog)
Talk-back audio (Intercom) stereo output (Analog)
Factory reset, IP configuration
Power switch
Mini XLR DC power input (6.6V ~ 16V)
Encoding rates
12 Mbps
20 Mbps
25 Mbps
Arbitrary encoding rate controlled by Web page
