 This LED is lighting after valid Wi-Fi link is established.
 The number of lights indicates the intensity of the received radio signal.
 RJ-45 LED:
 When the Ethernet LAN link is up, then green LED will light, and the link is
 When the RX is transmitting/receiving data over Ethernet LAN, the yellow
3.3 Connecting the WiMi6200T and WiMi6200R
The WiMi6200T/R provides full HD video transmitter and receiver solution over wireless or

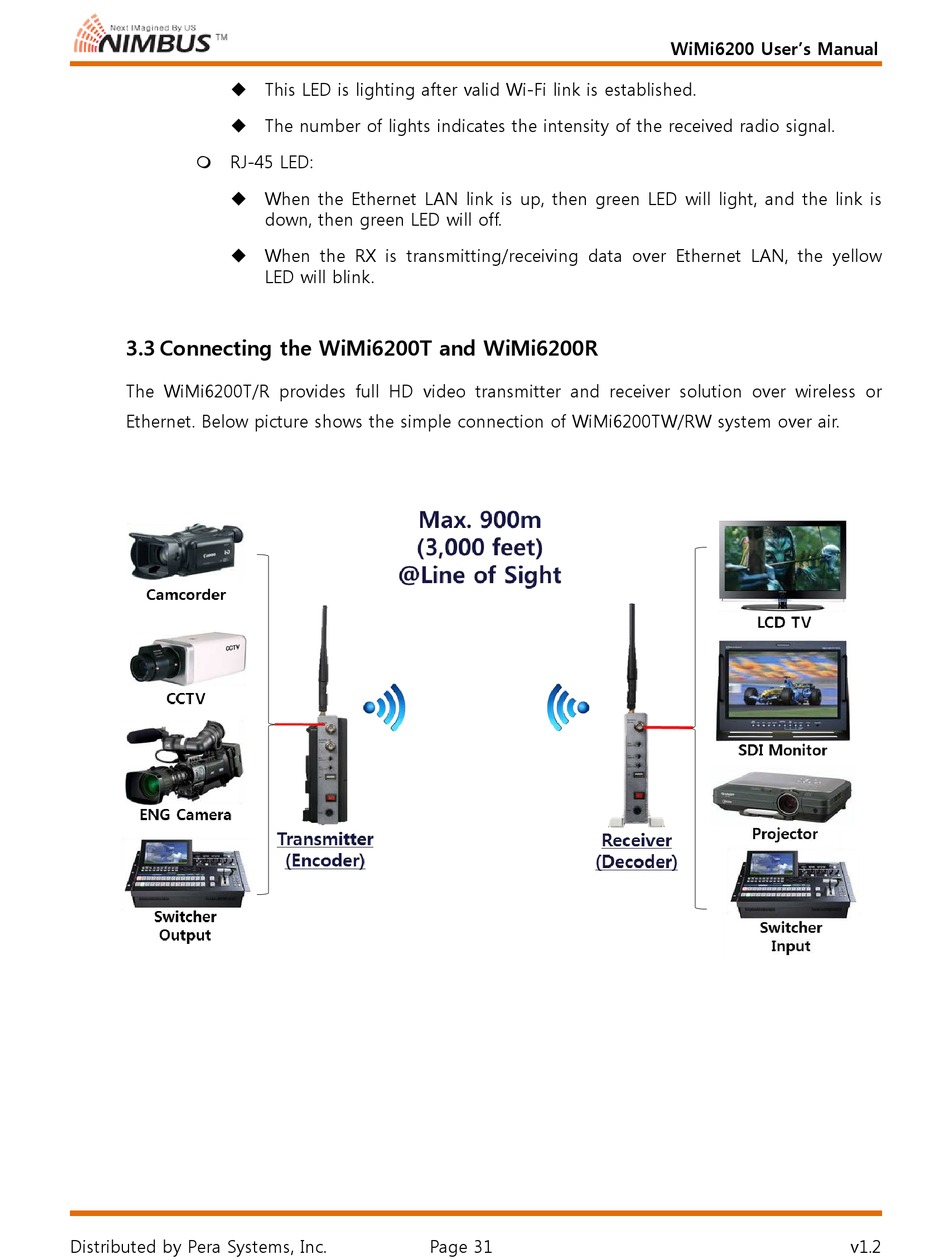

Ethernet. Below picture shows the simple connection of WiMi6200TW/RW system over air.
Distributed by Pera Systems, Inc.
down, then green LED will off.
LED will blink.
