RS422 serial port for bi-directional external control

 Inter-operable with WiMi4000R and WiMi6400R (version 303.00.3 or later) over LAN

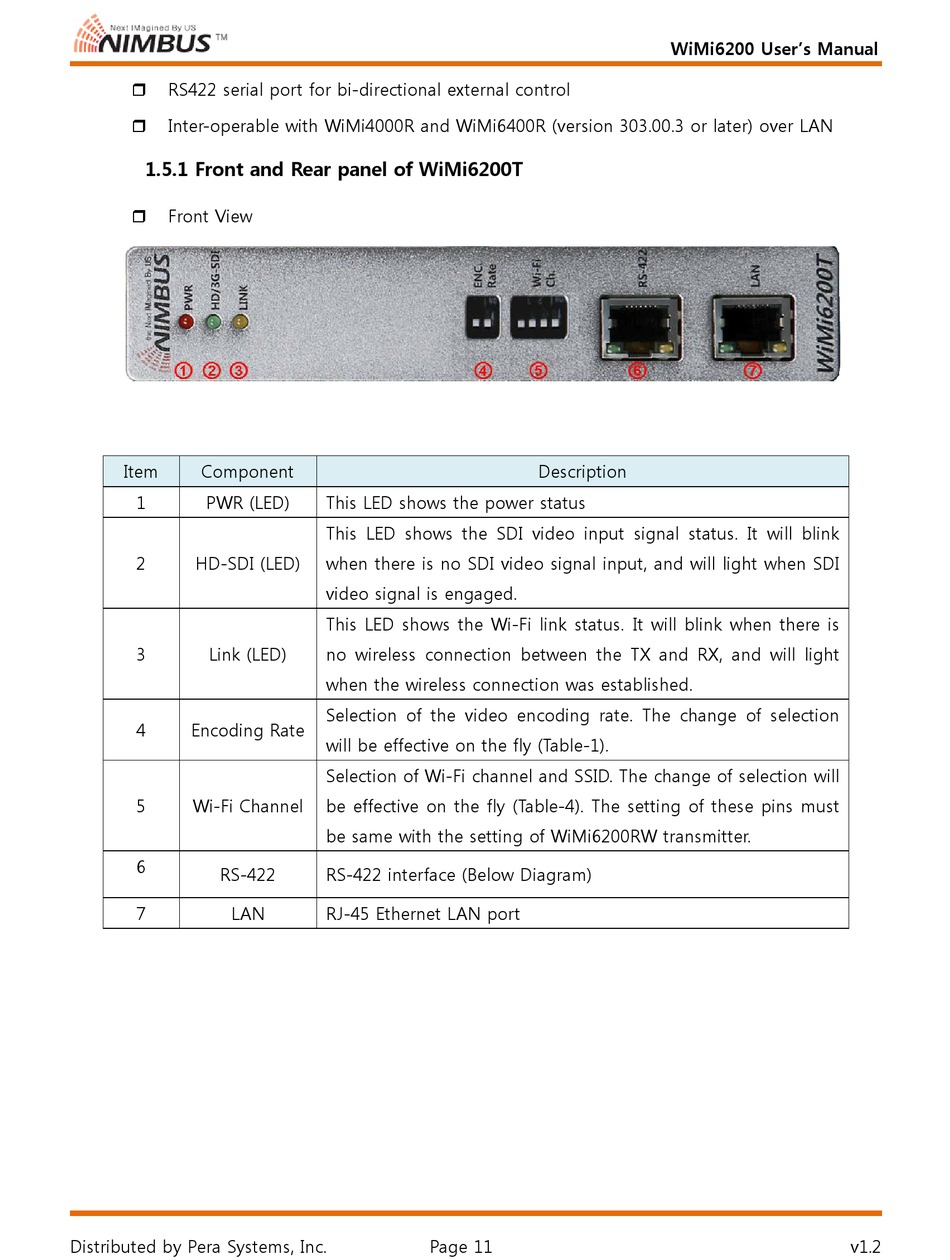

1.5.1 Front and Rear panel of WiMi6200T
 Front View
Item Component
1 PWR (LED)
2 HD-SDI (LED)
3 Link (LED)
4 Encoding Rate
5 Wi-Fi Channel
6
RS-422
7 LAN
Distributed by Pera Systems, Inc.
This LED shows the power status
This LED shows the SDI video input signal status. It will blink
when there is no SDI video signal input, and will light when SDI
video signal is engaged.
This LED shows the Wi-Fi link status. It will blink when there is
no wireless connection between the TX and RX, and will light
when the wireless connection was established.
Selection of the video encoding rate. The change of selection
will be effective on the fly (Table-1).
Selection of Wi-Fi channel and SSID. The change of selection will
be effective on the fly (Table-4). The setting of these pins must
be same with the setting of WiMi6200RW transmitter.
RS-422 interface (Below Diagram)
RJ-45 Ethernet LAN port
