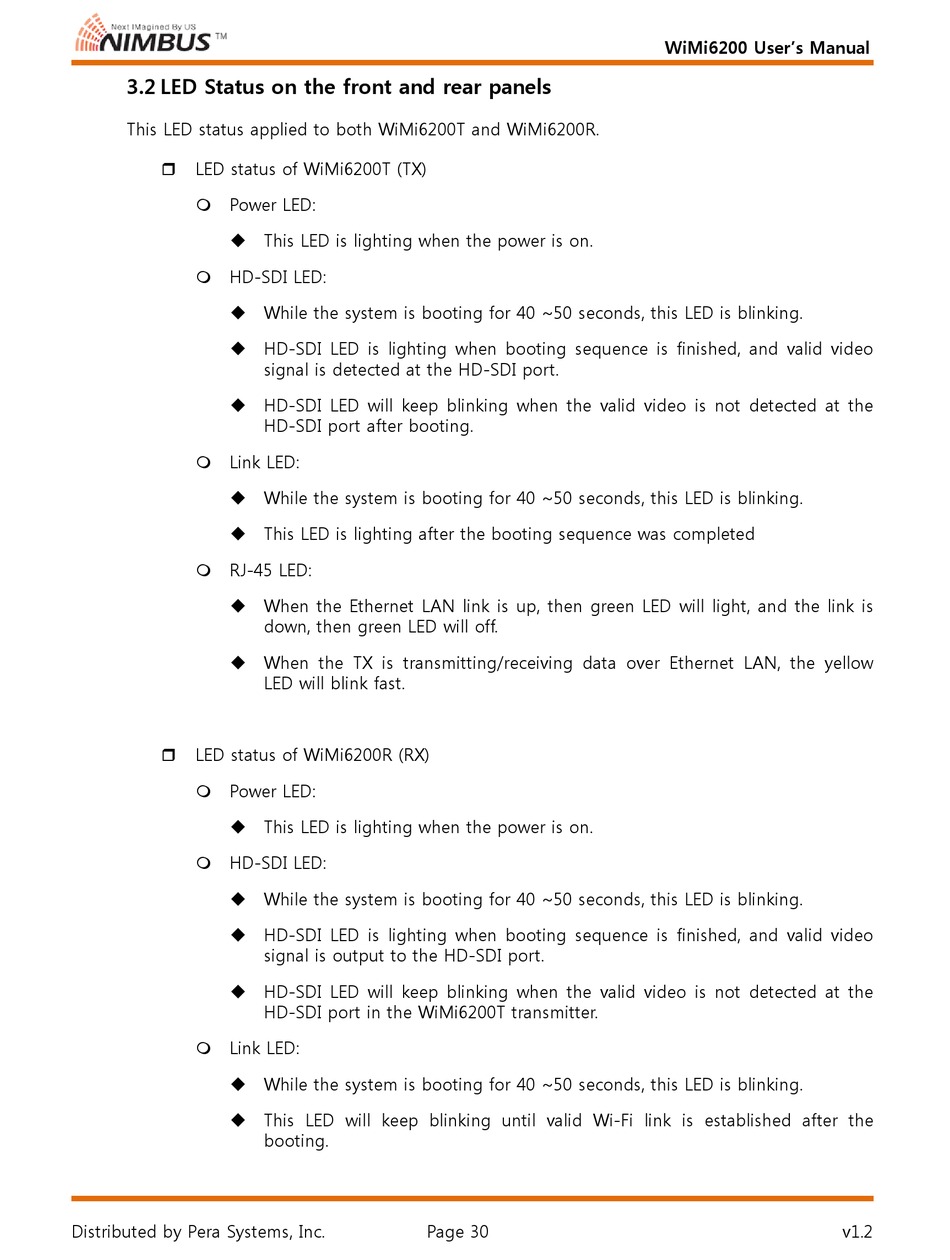

3.2 LED Status on the front and rear panels
This LED status applied to both WiMi6200T and WiMi6200R.
LED status of WiMi6200T (TX)

 Power LED:
 This LED is lighting when the power is on.
 HD-SDI LED:
 While the system is booting for 40 ~50 seconds, this LED is blinking.
 HD-SDI LED is lighting when booting sequence is finished, and valid video
 HD-SDI LED will keep blinking when the valid video is not detected at the
 Link LED:
 While the system is booting for 40 ~50 seconds, this LED is blinking.
 This LED is lighting after the booting sequence was completed
 RJ-45 LED:
 When the Ethernet LAN link is up, then green LED will light, and the link is
 When the TX is transmitting/receiving data over Ethernet LAN, the yellow
 LED status of WiMi6200R (RX)
 Power LED:
 This LED is lighting when the power is on.
 HD-SDI LED:
 While the system is booting for 40 ~50 seconds, this LED is blinking.
 HD-SDI LED is lighting when booting sequence is finished, and valid video
 HD-SDI LED will keep blinking when the valid video is not detected at the
 Link LED:
 While the system is booting for 40 ~50 seconds, this LED is blinking.
 This LED will keep blinking until valid Wi-Fi link is established after the
Distributed by Pera Systems, Inc.
signal is detected at the HD-SDI port.
HD-SDI port after booting.
down, then green LED will off.
LED will blink fast.
signal is output to the HD-SDI port.
HD-SDI port in the WiMi6200T transmitter.
booting.
