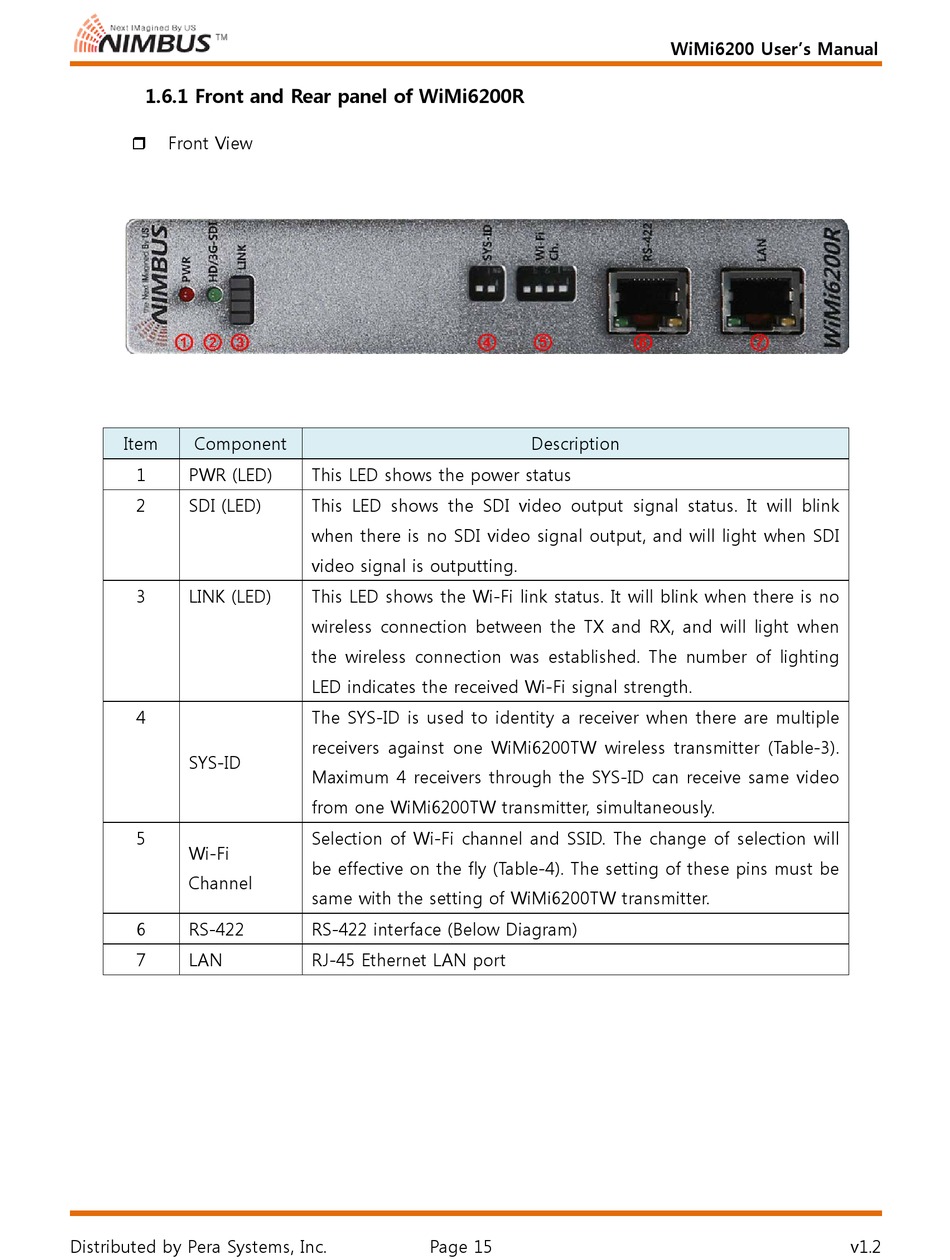

1.6.1 Front and Rear panel of WiMi6200R
Front View

Item Component
1 PWR (LED)
2 SDI (LED)
3 LINK (LED)
4
SYS-ID
5
Wi-Fi
Channel
6 RS-422
7 LAN
Distributed by Pera Systems, Inc.
This LED shows the power status
This LED shows the SDI video output signal status. It will blink
when there is no SDI video signal output, and will light when SDI
video signal is outputting.
This LED shows the Wi-Fi link status. It will blink when there is no
wireless connection between the TX and RX, and will light when
the wireless connection was established. The number of lighting
LED indicates the received Wi-Fi signal strength.
The SYS-ID is used to identity a receiver when there are multiple
receivers against one WiMi6200TW wireless transmitter (Table-3).
Maximum 4 receivers through the SYS-ID can receive same video
from one WiMi6200TW transmitter, simultaneously.
Selection of Wi-Fi channel and SSID. The change of selection will
be effective on the fly (Table-4). The setting of these pins must be
same with the setting of WiMi6200TW transmitter.
RS-422 interface (Below Diagram)
RJ-45 Ethernet LAN port
