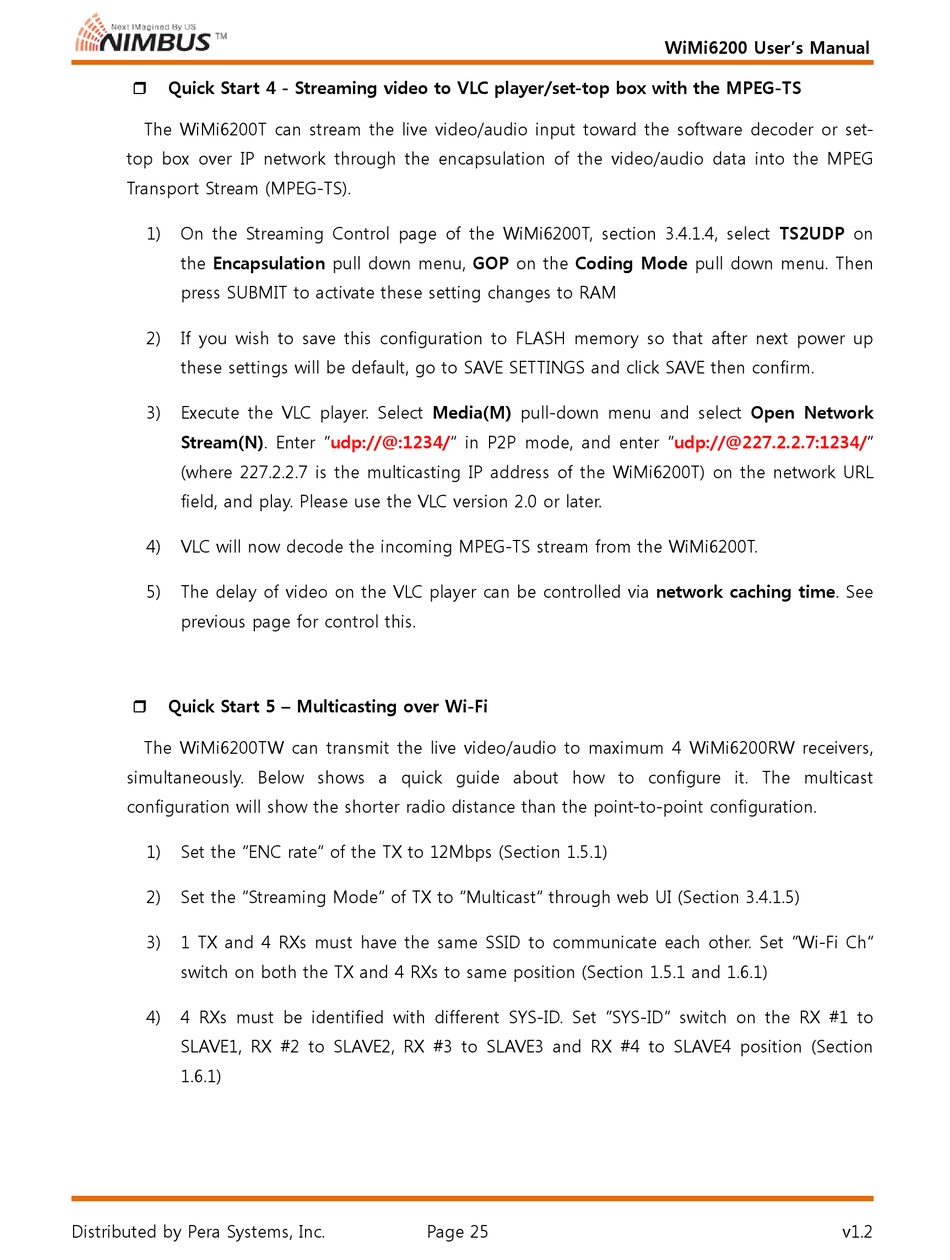

Quick Start 4 - Streaming video to VLC player/set-top box with the MPEG-TS

The WiMi6200T can stream the live video/audio input toward the software decoder or set-
top box over IP network through the encapsulation of the video/audio data into the MPEG
Transport Stream (MPEG-TS).
1) On the Streaming Control page of the WiMi6200T, section 3.4.1.4, select TS2UDP on
the Encapsulation pull down menu, GOP on the Coding Mode pull down menu. Then
press SUBMIT to activate these setting changes to RAM
2) If you wish to save this configuration to FLASH memory so that after next power up
these settings will be default, go to SAVE SETTINGS and click SAVE then confirm.
3) Execute the VLC player. Select Media(M) pull-down menu and select Open Network
Stream(N). Enter "udp://@:1234/" in P2P mode, and enter "udp://@227.2.2.7:1234/"
(where 227.2.2.7 is the multicasting IP address of the WiMi6200T) on the network URL
field, and play. Please use the VLC version 2.0 or later.
4) VLC will now decode the incoming MPEG-TS stream from the WiMi6200T.
5) The delay of video on the VLC player can be controlled via network caching time. See
previous page for control this.
Quick Start 5 – Multicasting over Wi-Fi

The WiMi6200TW can transmit the live video/audio to maximum 4 WiMi6200RW receivers,
simultaneously. Below shows a quick guide about how to configure it. The multicast
configuration will show the shorter radio distance than the point-to-point configuration.
1) Set the "ENC rate" of the TX to 12Mbps (Section 1.5.1)
2) Set the "Streaming Mode" of TX to "Multicast" through web UI (Section 3.4.1.5)
3) 1 TX and 4 RXs must have the same SSID to communicate each other. Set "Wi-Fi Ch"
switch on both the TX and 4 RXs to same position (Section 1.5.1 and 1.6.1)
4) 4 RXs must be identified with different SYS-ID. Set "SYS-ID" switch on the RX #1 to
SLAVE1, RX #2 to SLAVE2, RX #3 to SLAVE3 and RX #4 to SLAVE4 position (Section
1.6.1)
