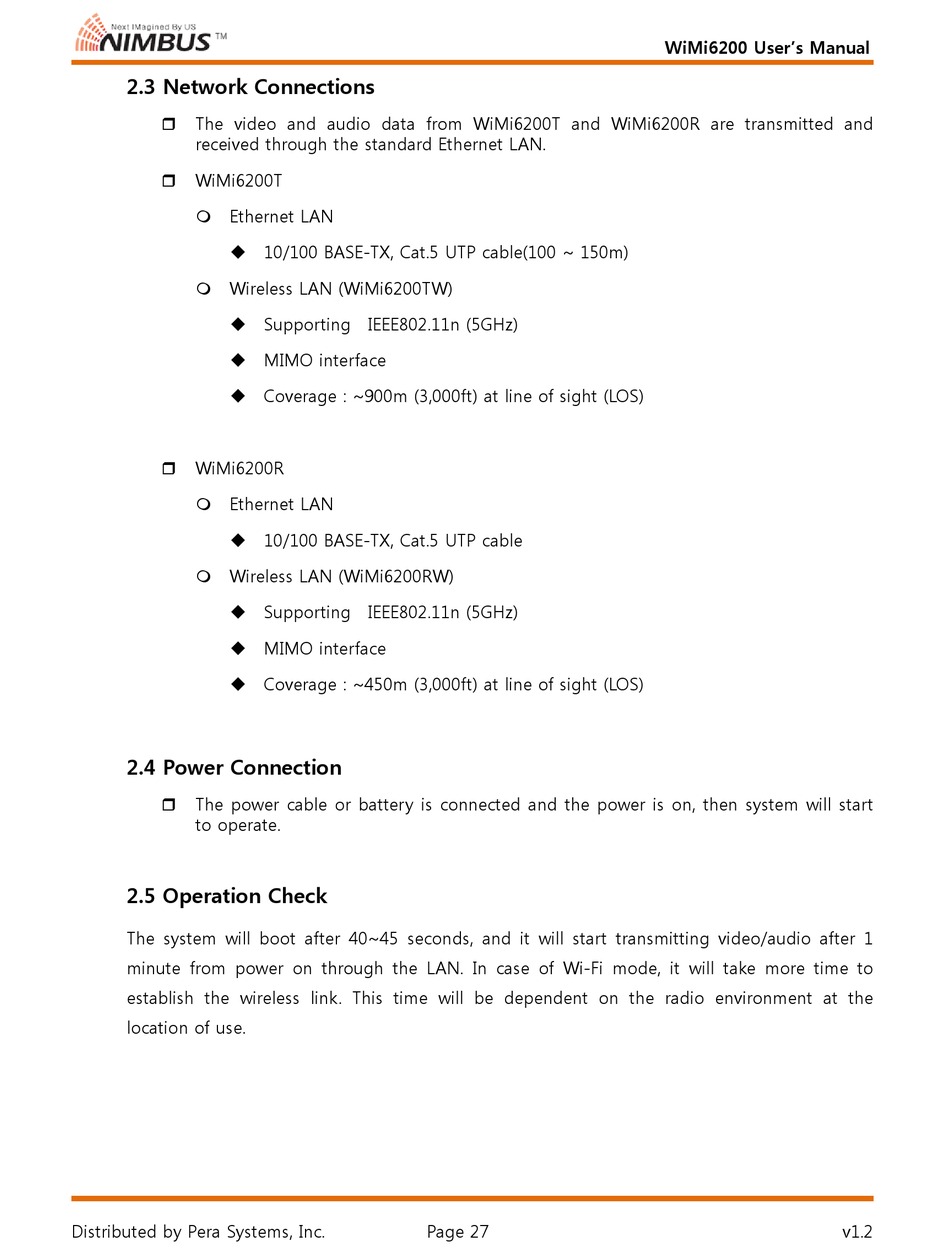

2.3 Network Connections

 The video and audio data from WiMi6200T and WiMi6200R are transmitted and
received through the standard Ethernet LAN.
 WiMi6200T
 Ethernet LAN
 10/100 BASE-TX, Cat.5 UTP cable(100 ~ 150m)
 Wireless LAN (WiMi6200TW)
 Supporting IEEE802.11n (5GHz)
 MIMO interface
 Coverage : ~900m (3,000ft) at line of sight (LOS)
WiMi6200R

 Ethernet LAN
 10/100 BASE-TX, Cat.5 UTP cable
 Wireless LAN (WiMi6200RW)
 Supporting IEEE802.11n (5GHz)
 MIMO interface
 Coverage : ~450m (3,000ft) at line of sight (LOS)
2.4 Power Connection
The power cable or battery is connected and the power is on, then system will start

to operate.
2.5 Operation Check
The system will boot after 40~45 seconds, and it will start transmitting video/audio after 1
minute from power on through the LAN. In case of Wi-Fi mode, it will take more time to
establish the wireless link. This time will be dependent on the radio environment at the
location of use.
