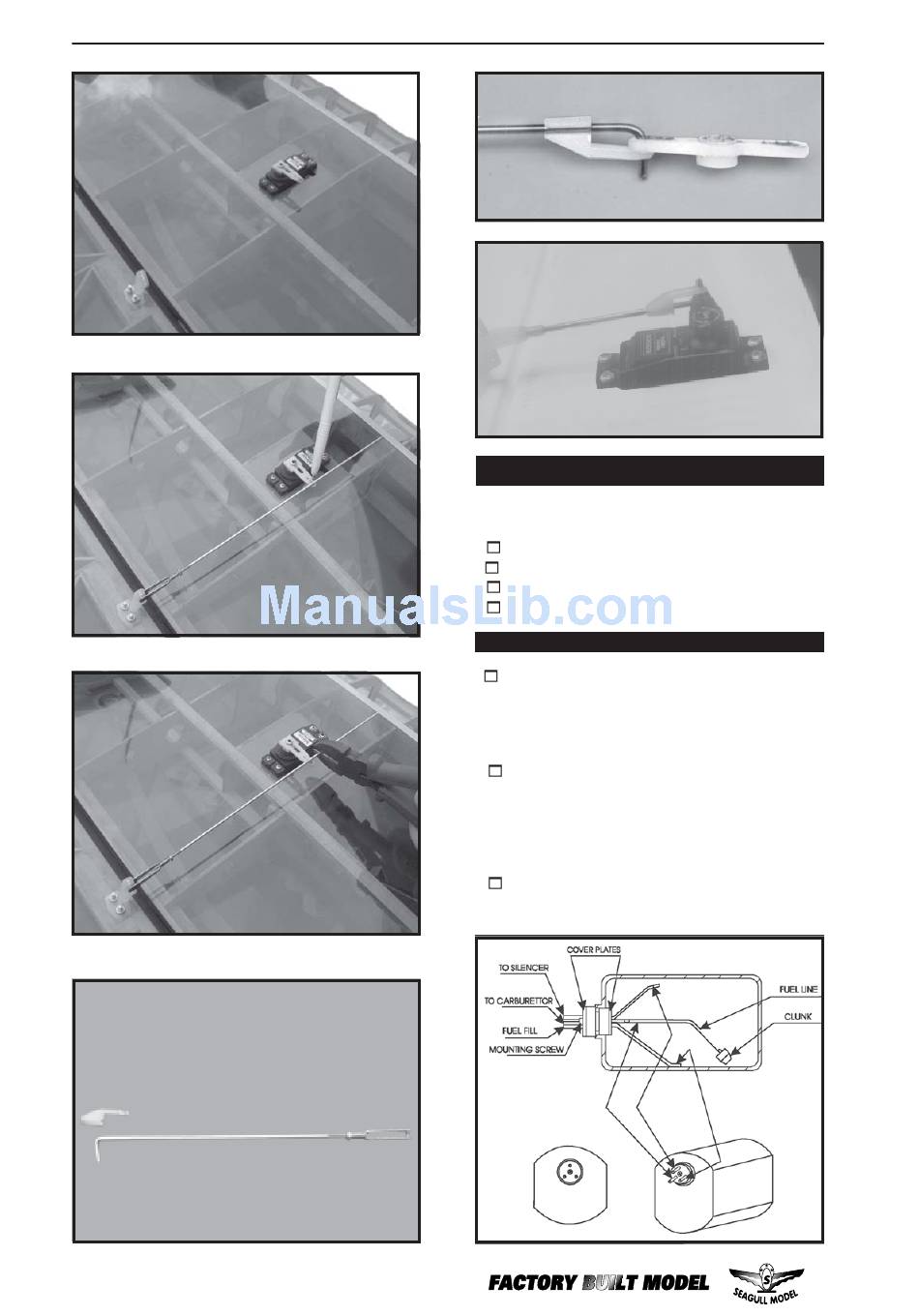

Installing The Stopper Assembly - Seagull Models HARRIER 3D Assembly Manual

HARRIER 3D
8
Instruction Manual
FUEL TANK
PARTS REQUIRED
{1} Molded Nylon Fuel Tank
{1} Preassembled Stopper Assembly
{1} Metal Weighted Pick-Up
{1} Silicon tube

INSTALLING THE STOPPER ASSEMBLY

1) Using a modeling knife, carefully cut off
the rear portion of one of the 3 nylon tubes
leaving 1/2" protruding from the rear of the
stopper. This will be the fuel pick up tube.
2) Using a modeling knife, cut one length
of silicon fuel line. Connect one end of the
line to the weighted fuel pickup and the other
end to the nylon pickup tube.
3) Carefully bend the second nylon tube
up at a 45º angle. This tube is the vent tube.
