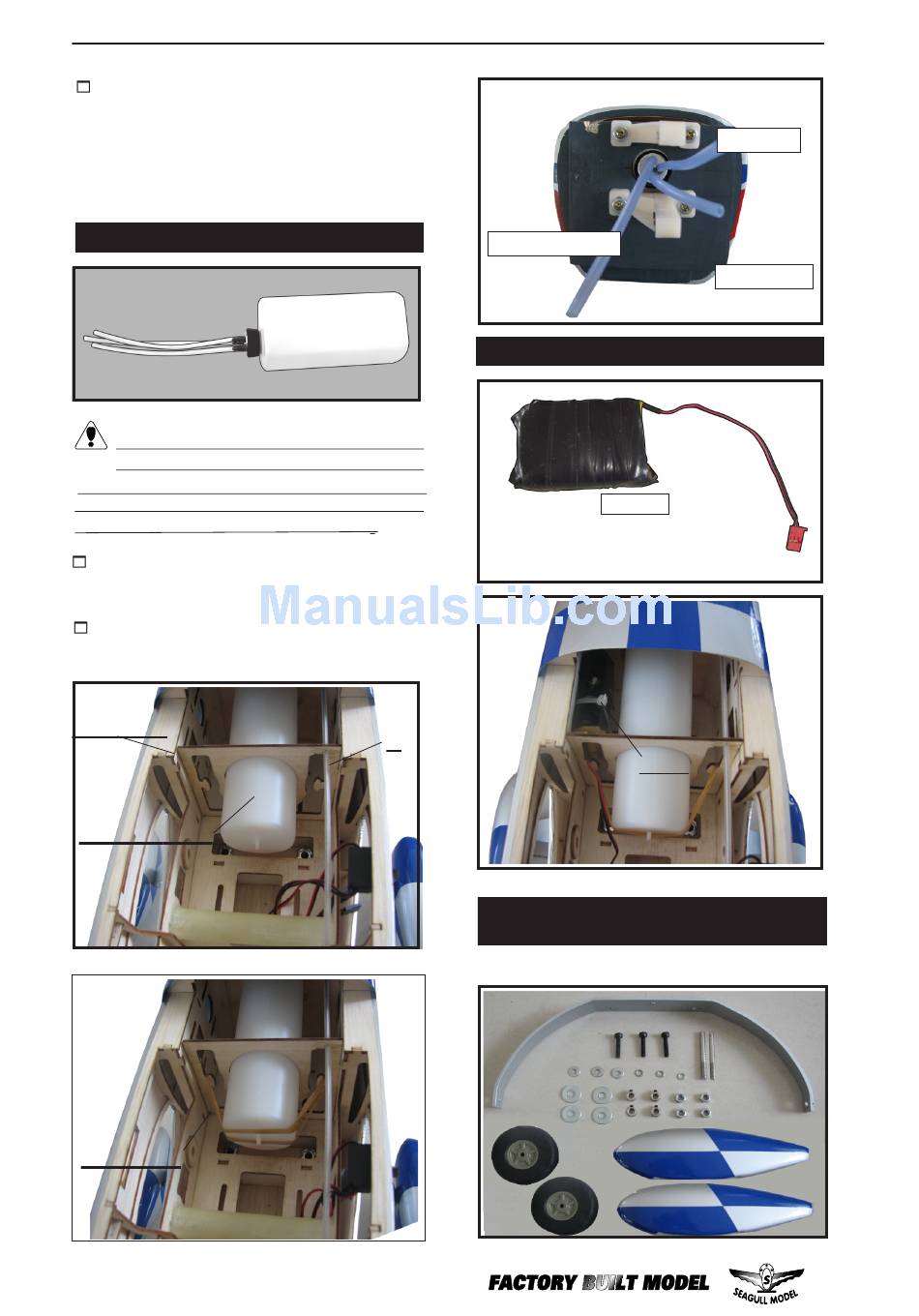

6) When satisfied with the alignment of
the stopper assembly tighten the 3 x 20mm
machine screw until the rubber stopper ex-
pands and seals the tank opening. Do not
overtighten the assembly as this could cause
the tank to split.

FUEL TANK INSTALLATION.

You should mark which tube is the vent
and which is the fuel pickup when you attach
fuel tubing to the tubes in the stopper. Once
the tank is installed inside the fuselage, it may
be difficult to determine which is which.
7) Slide the fuel tank into the fuselage. Guide
the lines from the tank through the hole in the
firewall.
8) Use balsa plywood to help prevent
moveable from transferring to the fuel tank as
shown.
C/A glue
Fuel Tank
Rubber
8
.
A
Instruction Manual.
Fuel pick up

INSTALLING THE BATTERY.

Battery.
Battery
INSTALLING THE MAIN LANDING GEAR
TO FUSELAGE.
Vent tube.
Fuel fill tube.
