Inserting and Removing the PCS Connection Card

Inserting the PCS Connection Card
To insert the PCS Connection Card into a Pocket PC:
If the PCMCIA jacket accessory is not already attached, slide the
1.
Pocket PC bottom first into the jacket. It should click into place.
Connect the battery pack to the PCS Connection Card.
2.
Remove the protective rubber cover from the back of the PCS Connection
Card to expose the device's metal contacts and battery receptors.
Insert the tabs on the swiveling battery pack head into the receptors
on the card at a 45-degree angle. Make sure you align the metal
contacts on the battery pack and the card.
Press the battery pack into place and secure it to the card by pressing
in the battery release button until the pack is in place and then
releasing the button. The battery pack will click into place.
PCS Connection Card
Caution: You MUST connect the battery pack when using the PCS Connection
Card with a Pocket PC. If not, fatal damage may occur to the Pocket PC.
Section 2: Installing the PCS Connection Card
36 2B: Installation on Pocket PCs

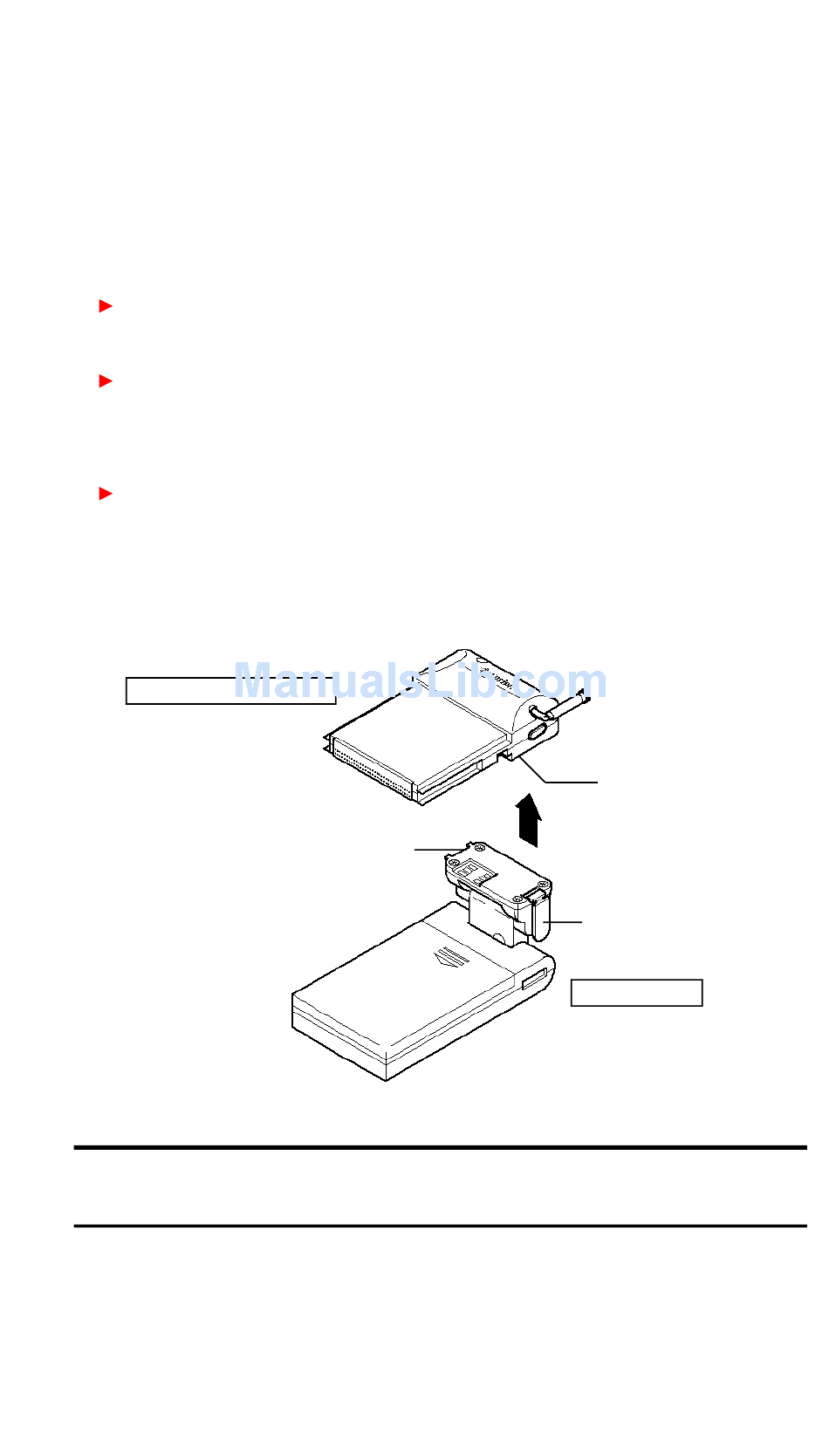

tabs
battery receptor
area/contacts
battery release button
Battery Pack
