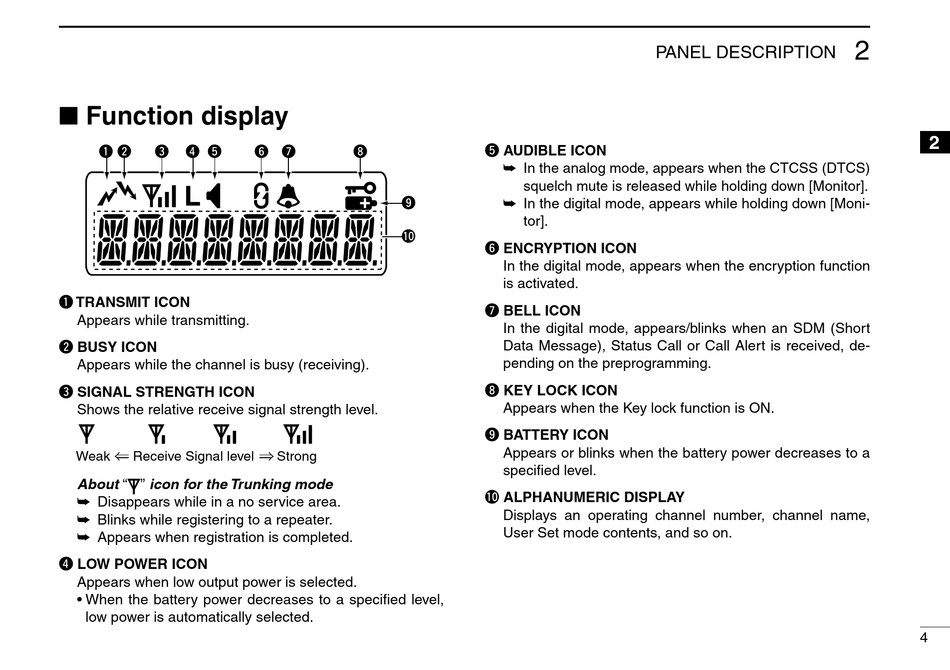

Function Display - Icom iF3230D Series Instruction Manual

Function display

■
q w e r t
q TRANSMIT ICON
Appears while transmitting.
w BUSY ICON
Appears while the channel is busy (receiving).
e SIGNAL STRENGTH ICON
Shows the relative receive signal strength level.
Weak Receive Signal level
About " " icon for the Trunking mode
Disappears while in a no service area.
➥
Blinks while registering to a repeater.
➥
Appears when registration is completed.
➥
r LOW POWER ICON
Appears when low output power is selected.
• When the battery power decreases to a specified level,
low power is automatically selected.
y u i
o
!0
Strong
PANEL DESCRIPTION
t AUDIBLE ICON
In the analog mode, appears when the CTCSS (DTCS)
➥
squelch mute is released while holding down [Monitor].
In the digital mode, appears while holding down [Moni-
➥
tor].
y ENCRYPTION ICON
In the digital mode, appears when the encryption function
is activated.
u BELL ICON
In the digital mode, appears/blinks when an SDM (Short
Data Message), Status Call or Call Alert is received, de-
pending on the preprogramming.
i KEY LOCK ICON
Appears when the Key lock function is ON.
o BATTERY ICON
Appears or blinks when the battery power decreases to a
specified level.
!0 ALPHANUMERIC DISPLAY
Displays an operating channel number, channel name,
User Set mode contents, and so on.
