Accessories - Icom iF3230D Series Instruction Manual

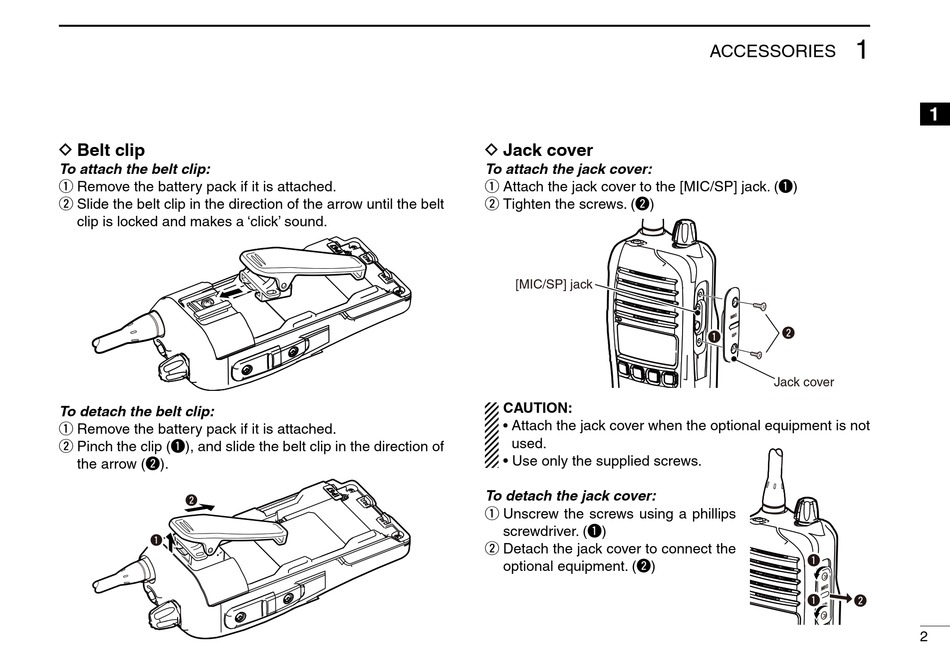

D Belt clip
To attach the belt clip:
Remove the battery pack if it is attached.
q
w Slide the belt clip in the direction of the arrow until the belt
clip is locked and makes a 'click' sound.
To detach the belt clip:
Remove the battery pack if it is attached.
q
Pinch the clip ( q), and slide the belt clip in the direction of
w
the arrow (w).
w
q
D Jack cover
To attach the jack cover:
Attach the jack cover to the [MIC/SP] jack. (
q
Tighten the screws. (
w w)
[MIC/SP] jack
CAUTION:
• Attach the jack cover when the optional equipment is not
used.
• Use only the supplied screws.
To detach the jack cover:
Unscrew the screws using a phillips
q
screwdriver. (q)
Detach the jack cover to connect the
w
optional equipment. (w)
1

ACCESSORIES

q)
