BATTERY CHARGING

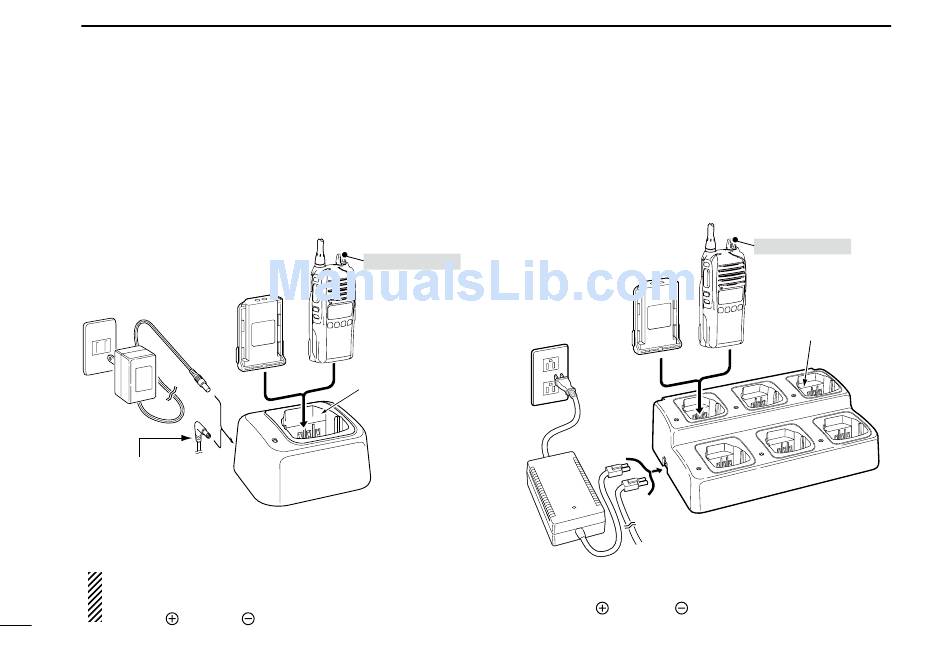

D Rapid charging with the BC-119N+AD-106
The optional BC-119N rapidly charges the Li-ion battery pack.
The following items are additionally required.
• AD-106 charger adapter
• An AC adapter (may be supplied with the BC-119N, de-
pending on the version) or the DC power cable (OPC-515L/
CP-23L).
AC adapter
(Not supplied with
some versions.)
*
Optional OPC-515L
(for 13.8 V power
source) or CP-23L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
CAUTION: NEVER connect the OPC-
*
515L to a power source using reverse
polarity. This will ruin the battery charger.
White line: Black line :
15
Transceiver
Turn power OFF
Battery
pack
AD-106 charger
adapter is installed
in BC-119N.
D Rapid charging with the BC-121N+AD-106
The optional BC-121N can simultaneously charge up to 6
Li-ion battery packs. The following items are additionally re-
quired.
• Six AD-106 charger adapters
• An optional AC adapter or the DC power cable (OPC-656)
Battery
pack
AC adapter
(Purchased
separately)
DC power cable (OPC-656)
(Connect with the DC power supply; 13.8 V/at least 7 A)
*Abou the OPC-656
Red line : Black line :
Transceiver
Turn power OFF
AD-106 charger
adapters are installed
in each slot.
