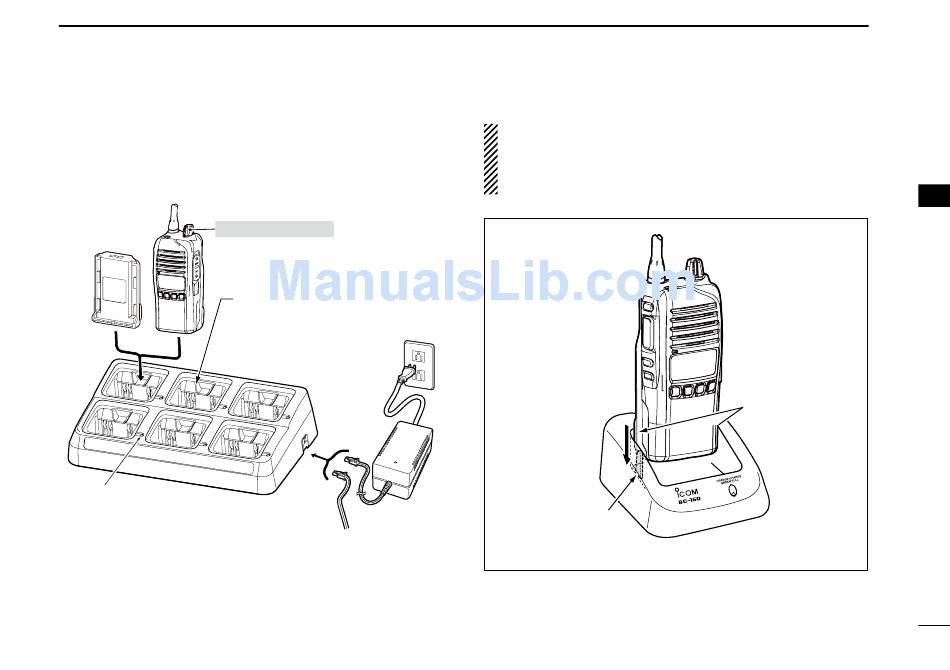

Rapid charging with the BC-197
The optional BC-197 can simultaneously charge up to 6 Li-ion
battery packs. The following items are additionally required.
• An optional AC adapter (not supplied with some versions) or
the DC power cable (OPC-656)
Turn OFF the power
Battery pack
Transceiver
Status indicator
(each indicator independently functions)
The charger adapters are in-
stalled in each slot. The shape
of charger adapter depends
on the version of the BC-197.
AC adapter
(No AC adapt-
er is supplied,
depending on
the version.)
OPC-656 (DC power cable)
(Connect to a DC power supply;
12 to 16 V/at least 7 A)
Red line : + Black line : _
BATTERY CHARGING
IMPORTANT: Battery charging caution
Ensure the guide tabs on the battery pack are correctly
aligned with the guide rails inside the charger adapter.
(This illustration is of the BC-160.)
Guide rail
4
Tabs
16
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
