Battery Case; Bp-240 Optional Battery Case - Icom iF3230D Series Instruction Manual

5

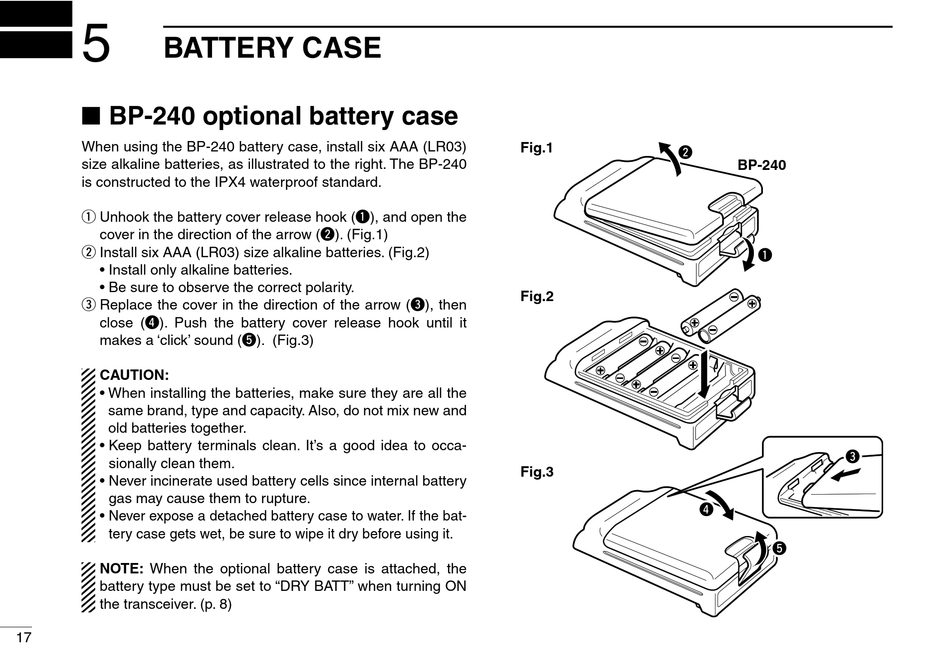

BATTERY CASE

BP-240 optional battery case

■
When using the BP-240 battery case, install six AAA (LR03)
size alkaline batteries, as illustrated to the right. The BP-240
is constructed to the IPX4 waterproof standard.
Unhook the battery cover release hook (
q
cover in the direction of the arrow (w). (Fig.1)
Install six AAA (LR03) size alkaline batteries. (Fig.2)
w
• Install only alkaline batteries.
• Be sure to observe the correct polarity.
Replace the cover in the direction of the arrow (
e
close (r). Push the battery cover release hook until it
makes a 'click' sound (t). (Fig.3)
CAUTION:
• When installing the batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery terminals clean. It's a good idea to occa-
sionally clean them.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose a detached battery case to water. If the bat-
tery case gets wet, be sure to wipe it dry before using it.
NOTE: When the optional battery case is attached, the
battery type must be set to "DRY BATT" when turning ON
the transceiver. (p. 8)
17
Fig.1
q), and open the
Fig.2
e), then
Fig.3
w
BP-240
q
e
r
t
