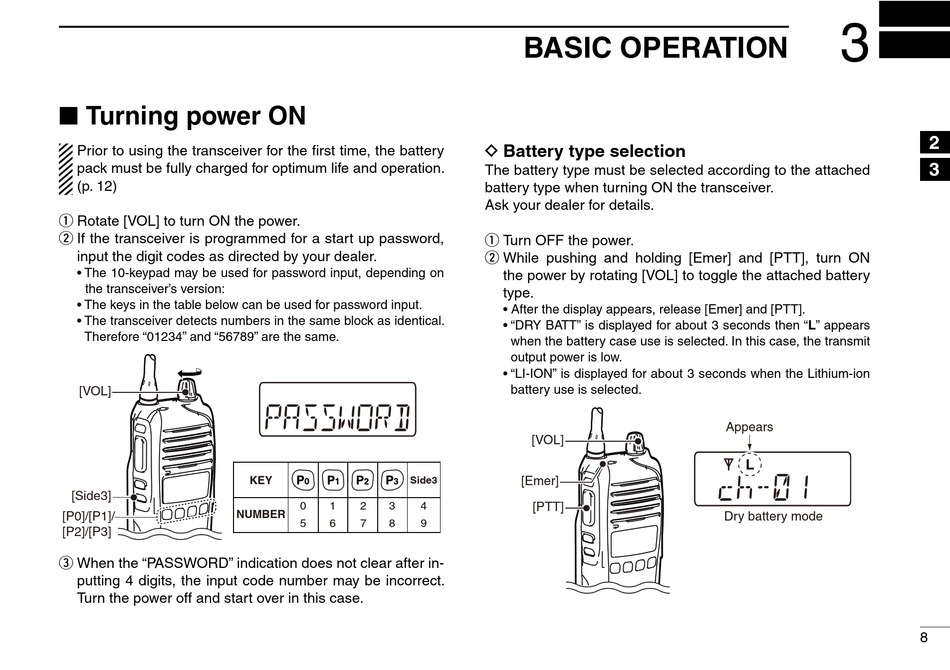

Turning power ON
■
Prior to using the transceiver for the first time, the battery
pack must be fully charged for optimum life and operation.
(p. 12)
Rotate [VOL] to turn ON the power.
q
w If the transceiver is programmed for a start up password,
input the digit codes as directed by your dealer.
• The 10-keypad may be used for password input, depending on
the transceiver's version:
• The keys in the table below can be used for password input.
• The transceiver detects numbers in the same block as identical.
Therefore "01234" and "56789" are the same.
[VOL]
[Side3]
NUMBER
[P0]/[P1]/
[P2]/[P3]
e When the "PASSWORD" indication does not clear after in-
putting 4 digits, the input code number may be incorrect.
Turn the power off and start over in this case.
KEY
Side3
0
1
2
3
4
5
6
7
8
9
BASIC OPERATION
D
Battery type selection
The battery type must be selected according to the attached
battery type when turning ON the transceiver.
Ask your dealer for details.
Turn OFF the power.
q
While pushing and holding [Emer] and [PTT], turn ON
w
the power by rotating [VOL] to toggle the attached battery
type.
• After the display appears, release [Emer] and [PTT].
• "DRY BATT" is displayed for about 3 seconds then "L" appears
when the battery case use is selected. In this case, the transmit
output power is low.
• "LI-ION" is displayed for about 3 seconds when the Lithium-ion
battery use is selected.
[VOL]
[Emer]
[PTT]
3
Appears
Dry battery mode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
8
