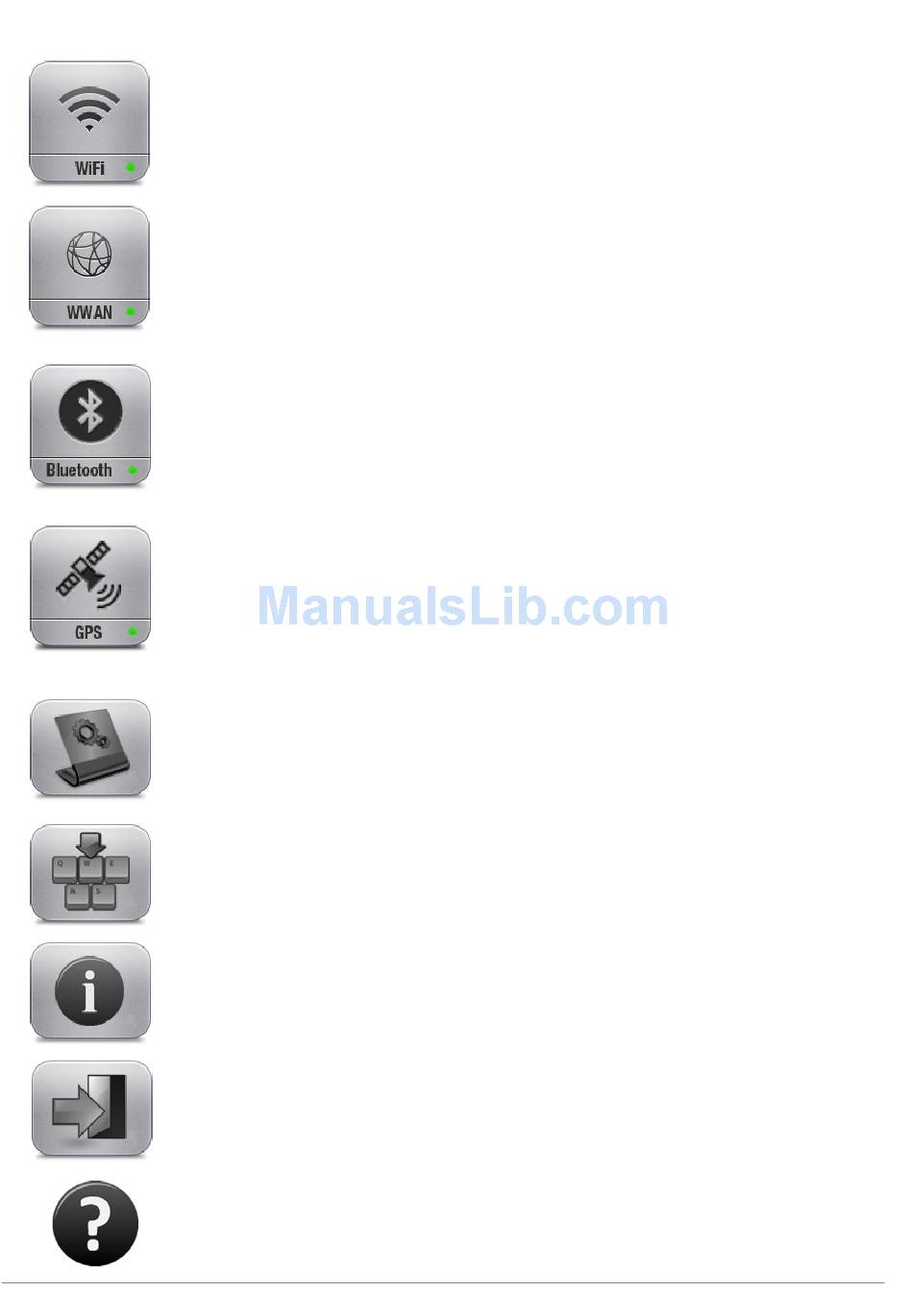

WiFi icon
Tab on the icon to enable / disable the WiFi functionality of the
Fieldbook. To learn how to connect to a WiFi network, please
refer to "Connecting to a WLAN", page 20
WWAN icon
WWAN stands for wireless wide area network and permits mobile access to the internet. To use the
WWAN functionality the a valid SIM card of a telecommunication supplier must have been insert.
Note that WWAN is optional and might not be installed in your Fieldbook.
Tab the icon to enable / disable the WWAN functionality of the Fieldbook. To learn how to connect
to a WWAN and how to insert a SIM card, please refer to "WWAN Module (Optional)", page 22.
Bluetooth icon
Bluetooth is a wireless technology standard for exchanging data with other Bluetooth enabled
devices over short distances.
Tab on the icon to enable / disable the Bluetooth functionality of the Fieldbook. To lear how to
connect to another Bluetooth device, please refer to "Connecting to a Bluetooth device",
page 20.
GPS icon
The Global Positioning System (GPS) is a space-based satellite navigation system that provides
location and time information in all weather conditions, anywhere on or near the Earth where there
is an unobstructed line of sight to four or more GPS satellites. Note that GPS is optional and might
not be installed in your Fieldbook. Tab the icon to enable / disable the GPS functionality of the
Fieldbook.
Admin-Menu icon
Tab on this icon to enter the administrator menu. In the administrator menu you can limit the
access to the wireless components by the user, change the key mapping and the profile settings,
set or change the password, enable / disable the camera functionality. Note that you might need a
password to enter this menu. If you don't have this password, please contact your system
administrator.
Key mapping icon
Tab on this icon to show the current key mapping for your reference. Note that the key mapping can
only be changed in the admin-menu.
System info icon
Tab on this icon to open the FieldControl system information.
There you can find the system's serial number, the FieldControl version and detailed information
about the battery / batteries.
Exit icon
Tab on this icon to exit the FieldControl application.
Question mark icon
Tab on this icon to open the help page.
