1.4 Exploring the Fieldbook I1

1.4.1

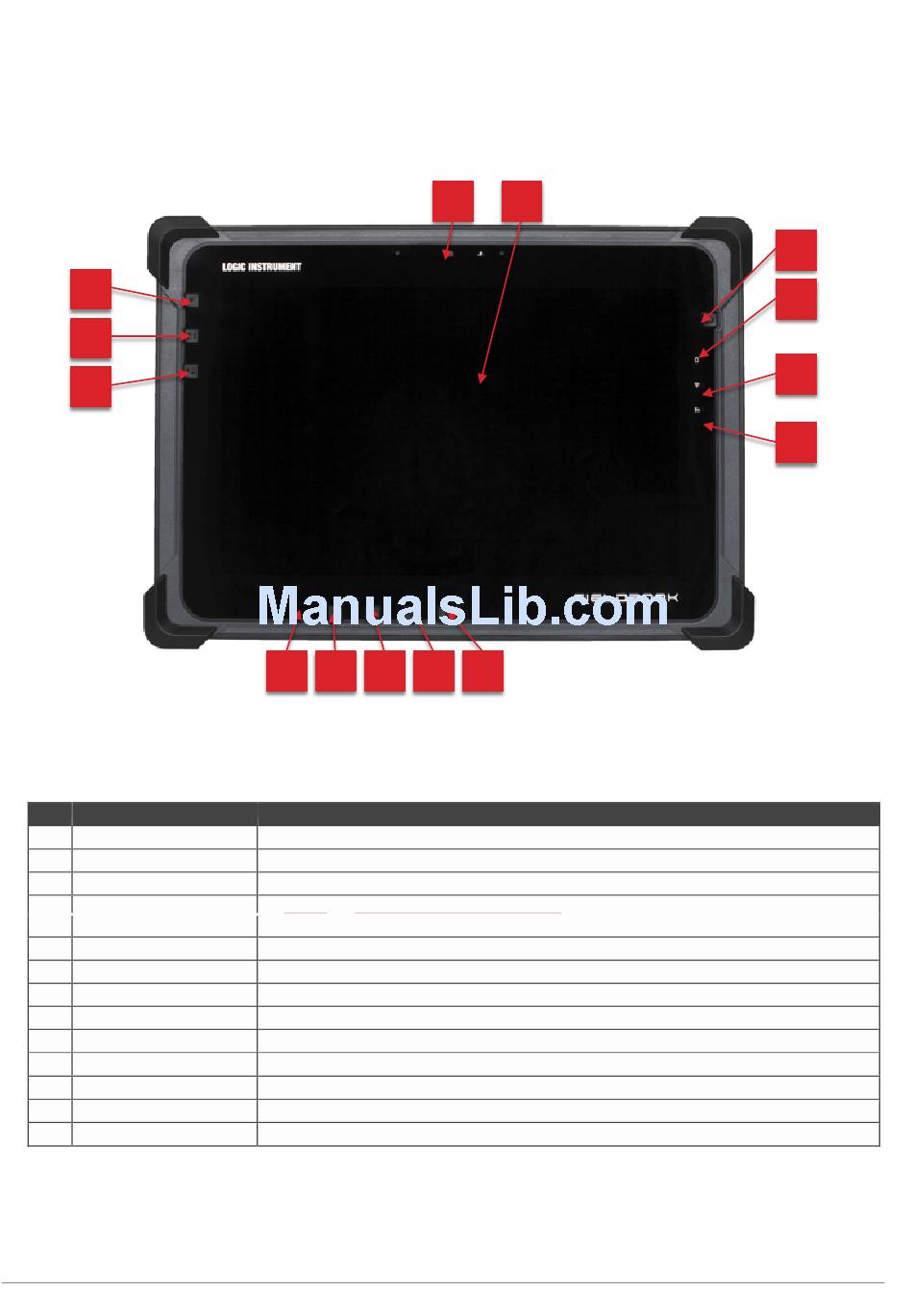

Front View

13
12
11
No Item
1 Front camera
2 Touch screen
3 F3 button
4 Battery LED
5
Wi-Fi LED
6 FN LED
7 Windows button
8 Volume -
9 Volume +
10 Power button
11 F2 button
12 F1 button
13 FN button
14 Power LED
14
10 9 8
Description
2 mega pixels camera
Capacitive 10-point multi-touch screen with digitizer option
Programmable function button
The battery LED indicates the battery charging status
The Wi-Fi LED lights to indicate Wi-Fi is enabled
The F LED lights when the function switches on
To open the Windows start page
Decrease volume
Increase volume
On / Off / Standby
Programmable function key
Programmable function key
Programmable function key
The power LED lights green when the unit is on
1 2
7
3
4
5
6
12
