Getting Started

The Fieldbook I1 is designed and pre-configured for easy setup and use. This section describes the installation steps
you should follow to get the system running as quickly as possible.

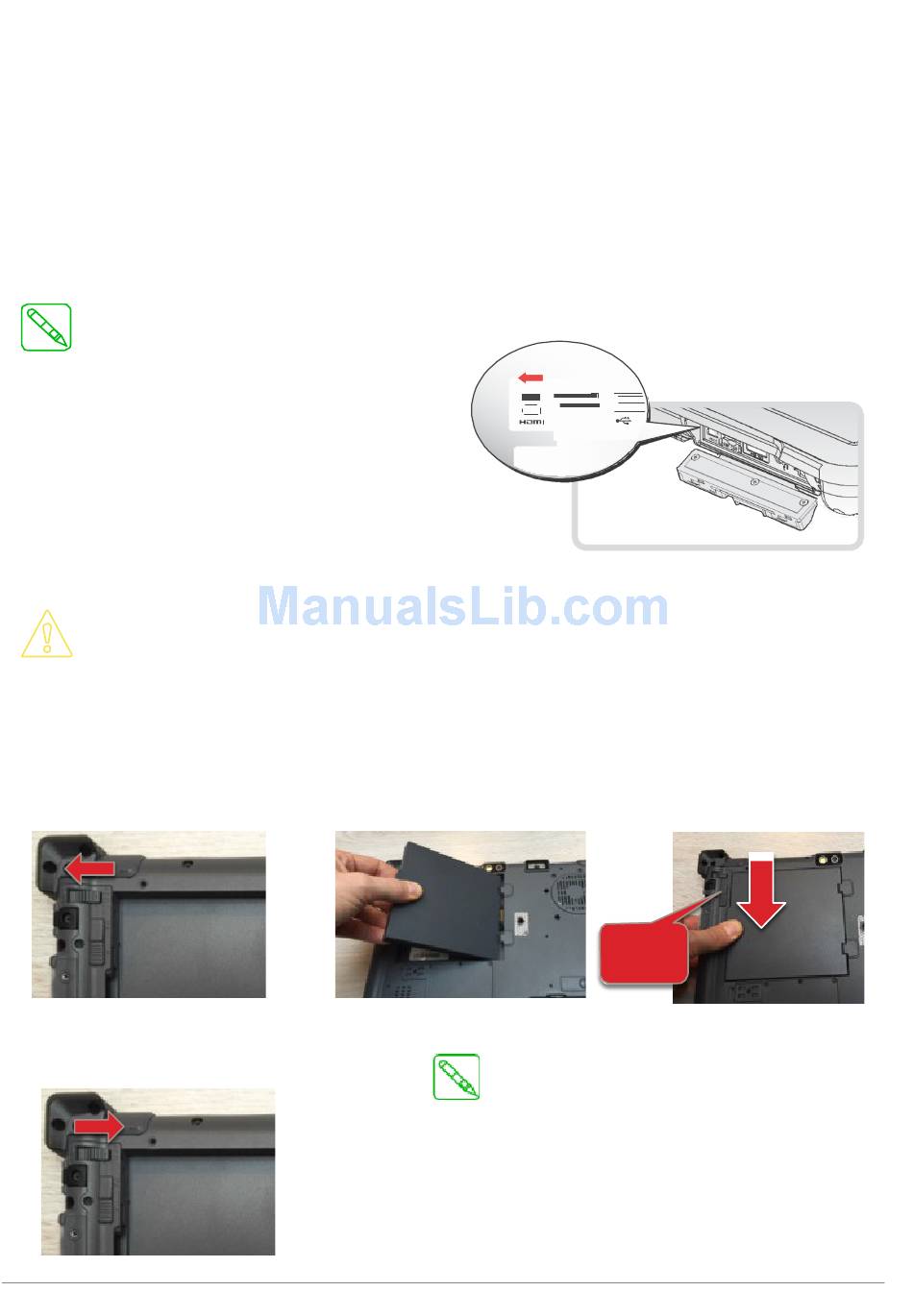

2.1 Switch ON the Backup Battery

For security reasons the backup battery is switched OFF during transit in order to completely cut off power to the device.
Please note that this step is not necessary to run the Fieldbook on battery power but it is necessary to support
hot swapping the main battery.
1. Open the I/O compartment cover on the left
side of the Fieldbook
2. Turn the switch to the ON position
3. Close the I/O compartment cover

2.2 Installing the Main Battery

Only use the battery supplied with your Fieldbook or batteries suggested by Logic Instrument. Using wrong
batteries might harm the device or cause fire and explosions.
a. Place the Fieldbook display side down on a plane and clean surface
b. Make sure that the locking
switch (upper lock) is unlocked
e. Slide the locking switch to the right (LOCK)
c. Align the battery tabs with the
slots on the chassis
If the battery locks are not completely set to
LOCKED the Fieldbook will not run on battery
power.
d. Press down the battery until the
release switch clicks into place
Click
