1.4.4

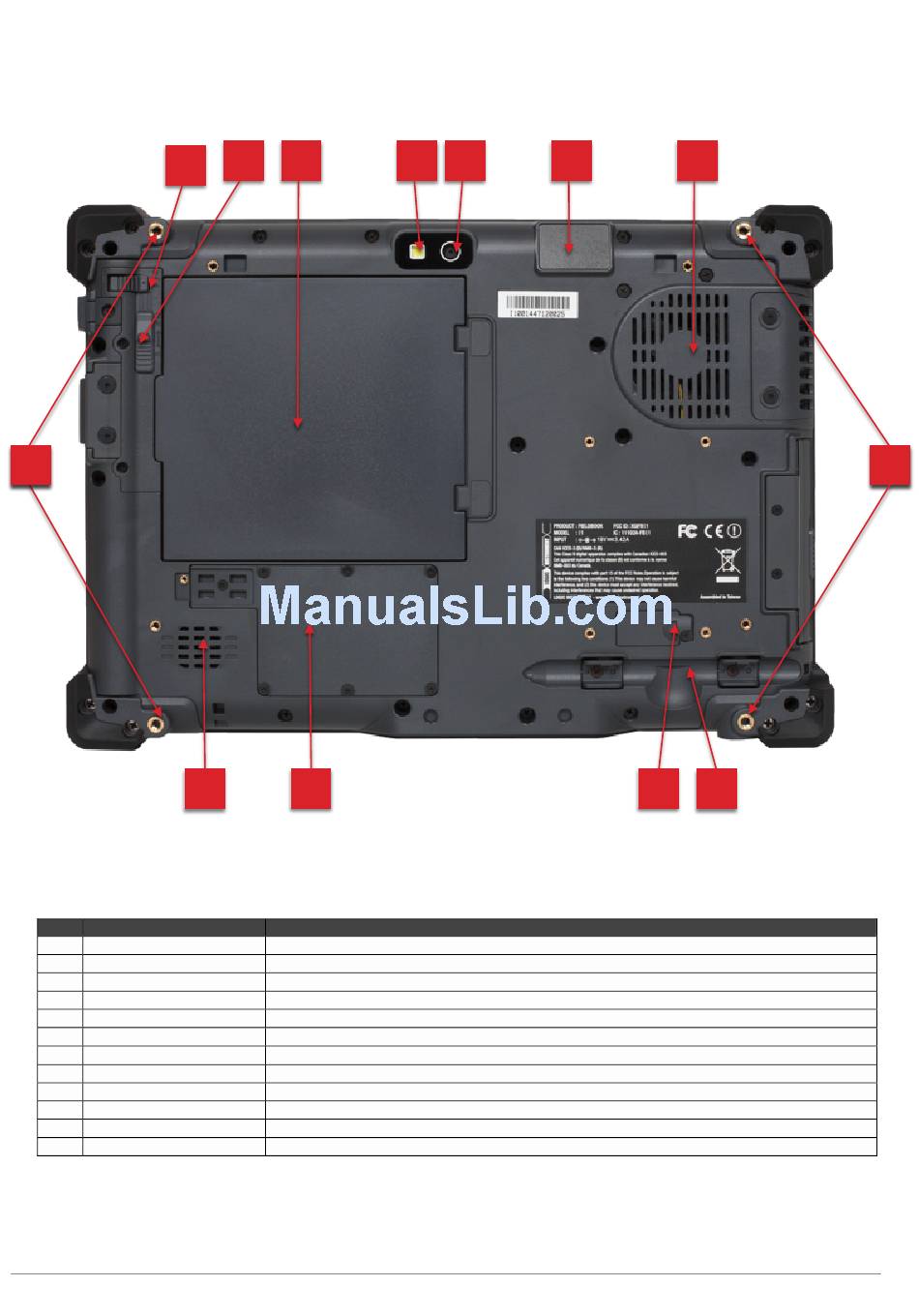

Rear View

29
30
No Item
19 Battery lock
20 Release switch
21 Battery / battery compartment
22 LED light
23 Rear camera
24 Barcode scanner
25
Fan
26 Digitizer holder
27 Expansion connector
28 WWAN compartment
29 Speaker
30 Fixation points
20 21
19
29 28
Description
To lock the battery into place. NOTE, if one is not locked correctly, the Fieldbook will not work on battery.
To eject the main battery
Place to install the main battery
LED light to support the camera in bad lightning conditions
5.0 Mega-Pixels camera with auto focus
Professional built-in Intermec 1D/2D barcode scanner (Option)
Ultra-silent IP65 fan for cooling
Holds the stylus / digitizer pen
Connects the optional expansion box
Place where the optional 3G/4G module is located
IP65 speaker for sound output
Fixation points for the D-rings to fix the hand strap or other optional carrying accessories
22 23 24 25
27 26
29
30
14
