3.6 Installing Accessories

Note: Accessories are optional and may not be included in your shipment.
3.6.1

Installing the D-Rings

Note: You will need a Phillips head screwdriver to fix the D-Rings on the Fieldbook.

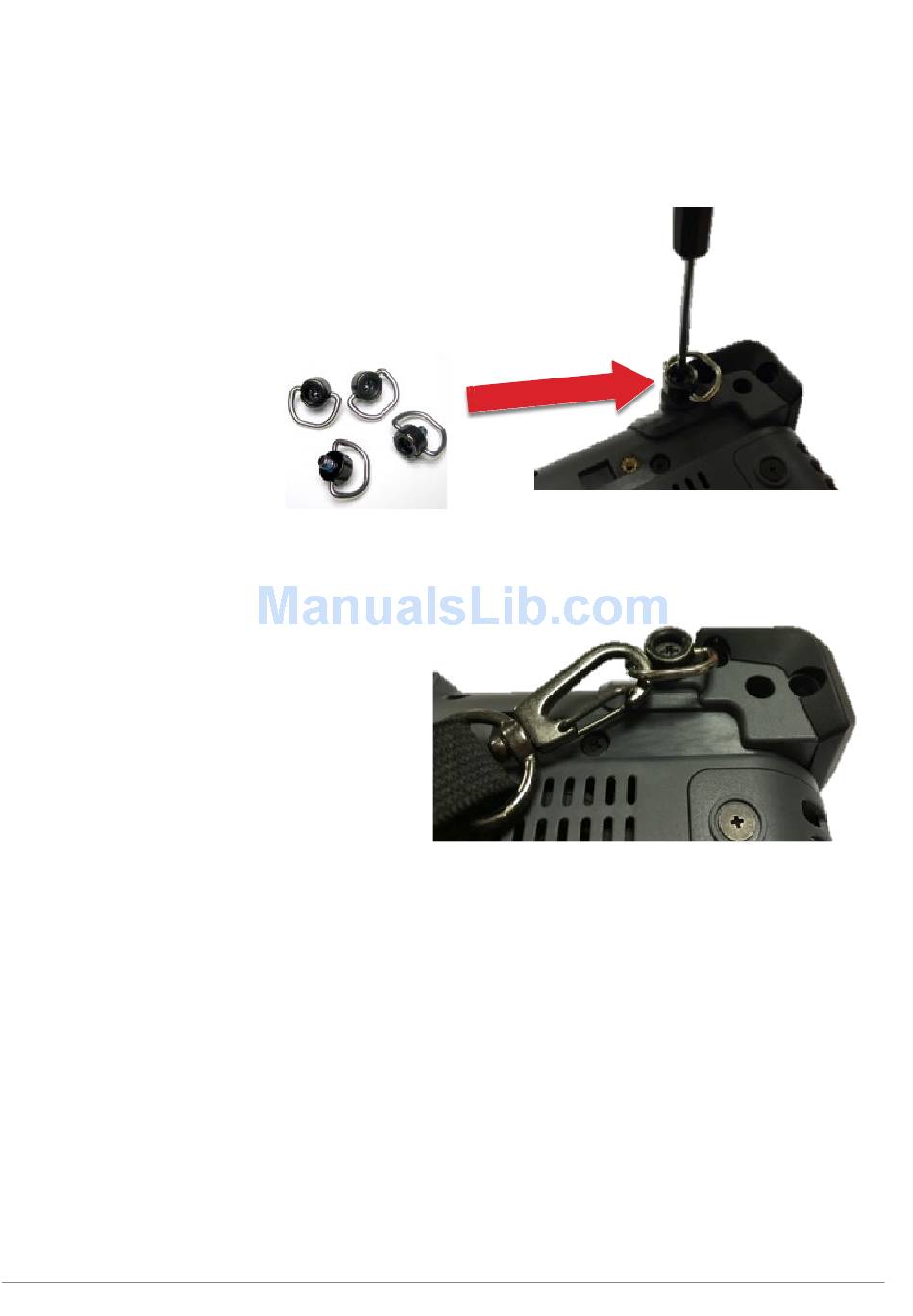

1. Locate the four screw threads for the D-rings on the tablet.
Refer to number 29 on page 14 - chapter 1.4.4 Rear View
2. Screw the four D-Rings tight with the screwdriver
3.6.2

Installing the Handstrap

The Fieldbook can be eqipped with a hand strap for
better handling during operating.
1. To install the hand strap, please install the D-
Rings first.
2. Than clip the four hooks into the D-rings like
shown on the picture on the right.
4x
