5

FieldControl Application

5.1 Introduction

The FieldControl dashboard application is designed to easily and quickly access the main Fieldbook function such as
brightness and volume adjustment, activation and deactivation of the wireless devices or screen orientation.
Due to continuous updates of the FieldControl the show pictures could differ.
5.2 Launch FildControl

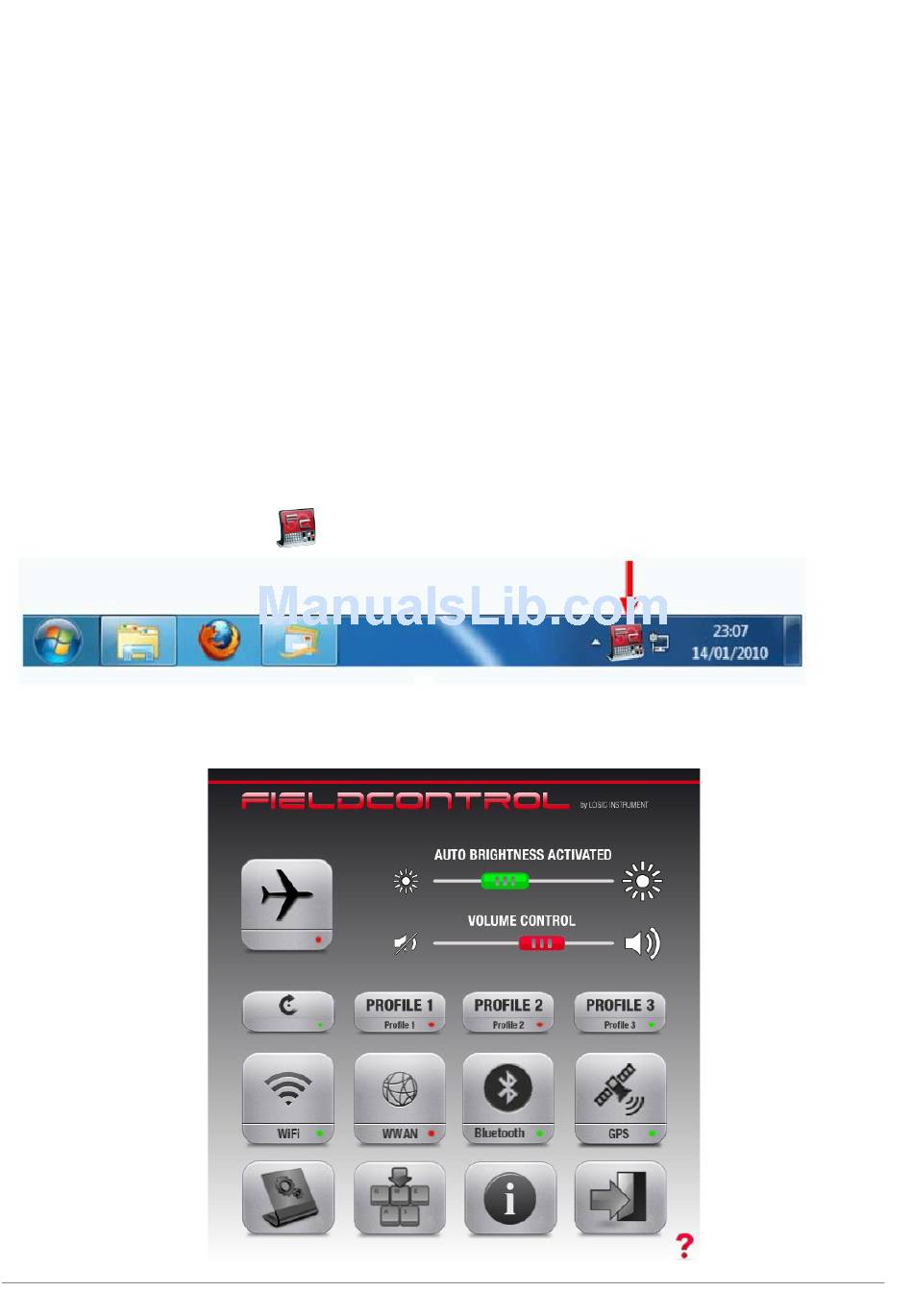

As factory setting, the FieldControl process will automatically be started in the background with the system start. The
started FieldControl software is indicated in task bar.
To bring the FieldControl main window to the top of the screen, there are several possibilities:
F1
1. Press the button located on the left side of the Fieldbook
2. Double click on the desktop icon
3. Click the task bar icon

5.3 Main Menu

31
