1.4.5

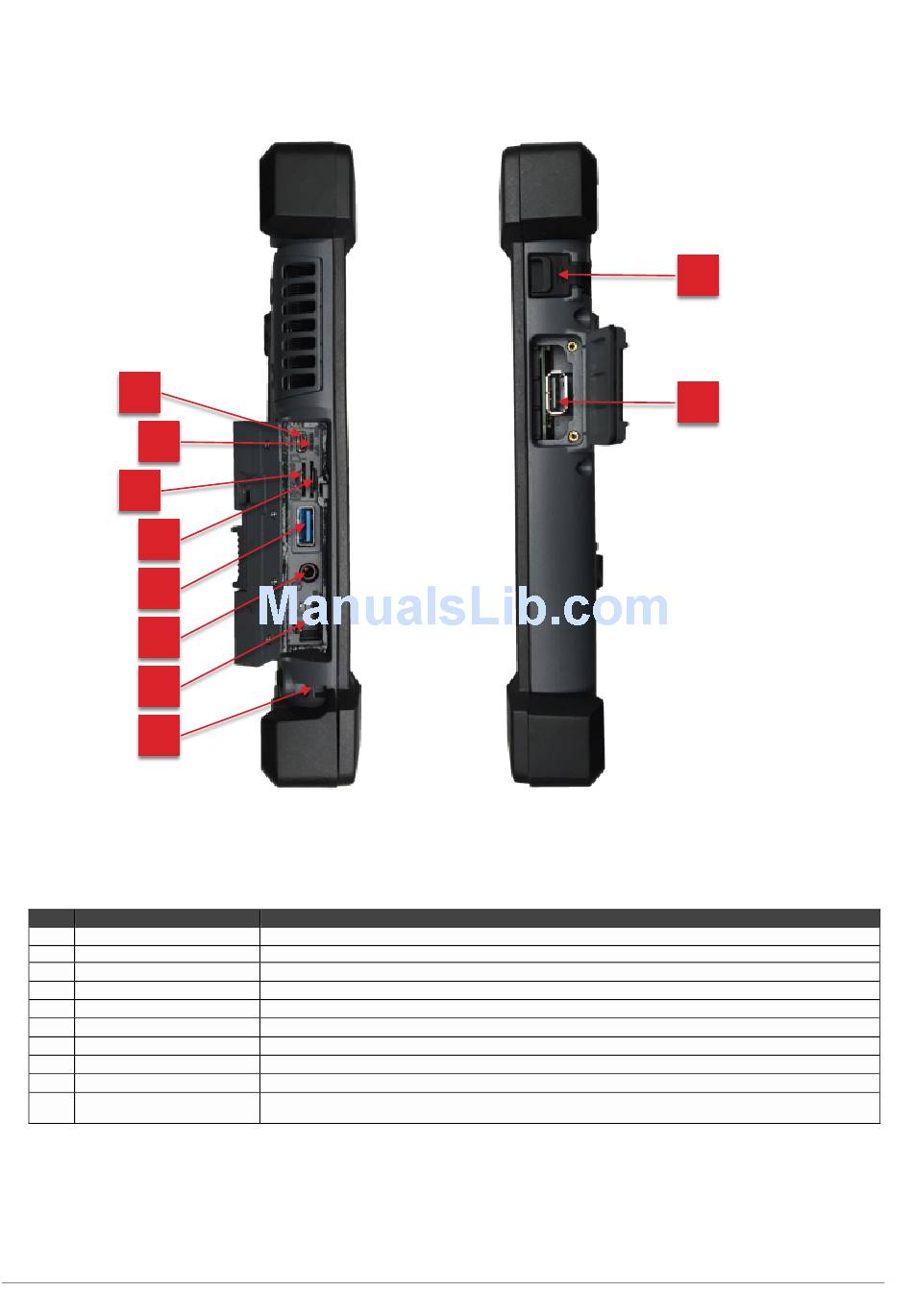

Side Views

39
38
37
36
35
34
33
32
No Item
30 DC-In
31 Multi-Port
32 Tether hole
33 RJ45
34 Audio jack
35 USB port
36 SIM slot
37 SD card slot
38 Backup battery switch
39 Micro HDMI port
Description
Connects the Fieldbook to an external power adapter for operation and battery charging
USB2.0 or RS232 – depends on your configuration
To fix the stylus or digitizer tether
Gigabit Ethernet port to connect the Fieldbook to a LAN
To connect a microphone, a headset or external speakers to the Fieldbook
USB 3.0 port to connect different devices to the Fieldbook
Holds the SIM card that is needed for the WWAN (option)
To insert a micro SD card for memory extension (or other applications)
Connects / interrupts the connection to the internal backup battery
Connects the Fieldbook to an external display device
30
31
