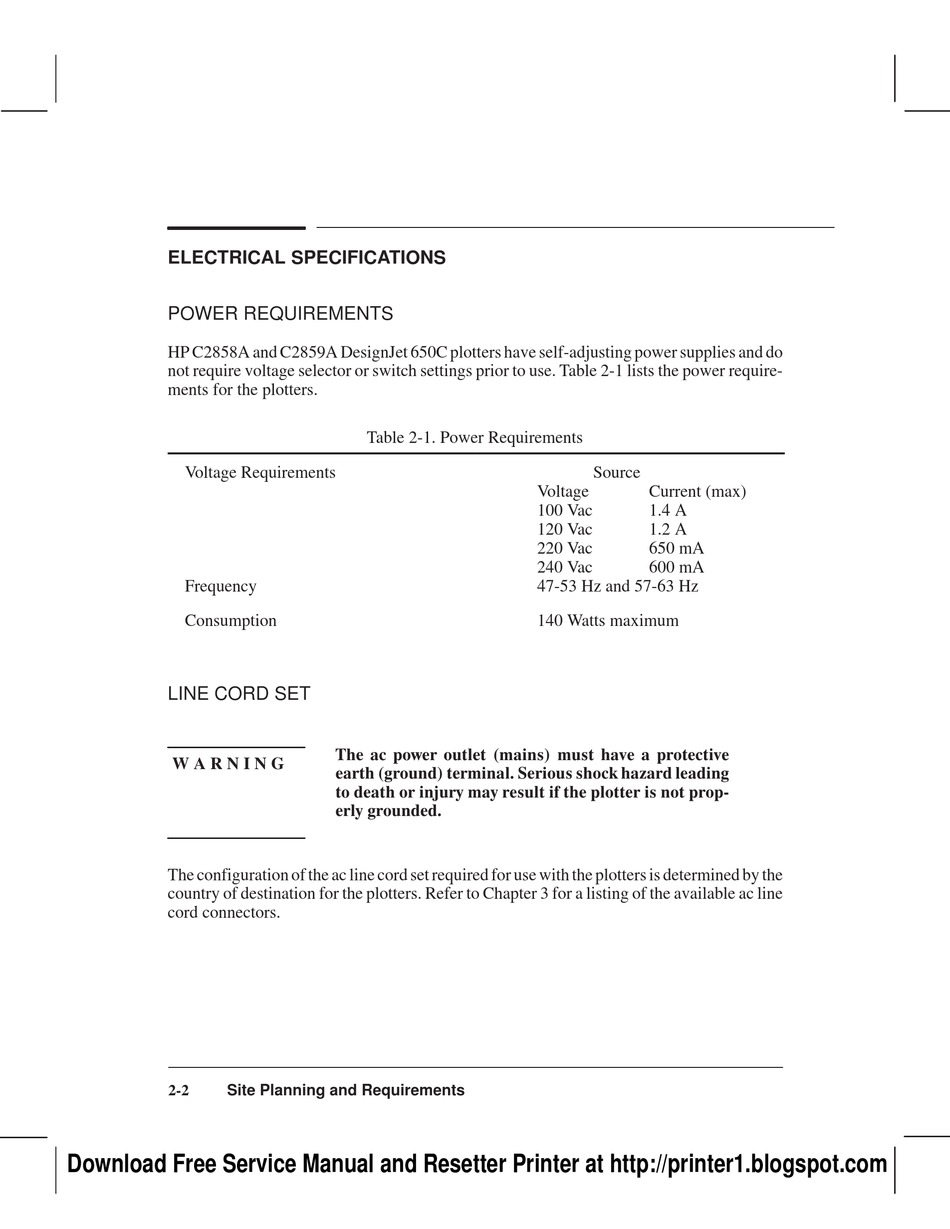

ELECTRICAL SPECIFICATIONS

POWER REQUIREMENTS

HP C2858A and C2859A DesignJet 650C plotters have self-adjusting power supplies and do
not require voltage selector or switch settings prior to use. Table 2-1 lists the power require-
ments for the plotters.
Voltage Requirements
Frequency
Consumption

LINE CORD SET

W A R N I N G
The configuration of the ac line cord set required for use with the plotters is determined by the
country of destination for the plotters. Refer to Chapter 3 for a listing of the available ac line
cord connectors.
Site Planning and Requirements
2-2
Download Free Service Manual and Resetter Printer at http://printer1.blogspot.com
Table 2-1. Power Requirements
The ac power outlet (mains) must have a protective
earth (ground) terminal. Serious shock hazard leading
to death or injury may result if the plotter is not prop
erly grounded.
Source
Voltage
Current (max)
100 Vac
1.4 A
120 Vac
1.2 A
220 Vac
650 mA
240 Vac
600 mA
47-53 Hz and 57-63 Hz
140 Watts maximum
