INSTALLATION

ELECTRICAL INSTALLATION AND SAFETY

DANGER: The output voltage and current of audio power amplifiers are a shock hazard. To minimize
the risk of electric shock from loudspeaker connecting cables, confirm that the power amplifiers are
turned "off" before connecting any loudspeaker cable to the loudspeaker or amplifier. Always follow
local electrical codes and proper electrical safety procedures.
Connections
ENTASYS loudspeakers are equipped with three methods of connecting input signal wires. One is an
industry standard NL4-type locking connector. The second is a standard dual banana jack connector. The third
is a two position barrier strip terminal. All of these connectors are wired in parallel.
Provisions are also made to pass the input signal through the loudspeaker so that it may be easily
routed to other loudspeakers. This can be accomplished two ways. The first is the two position barrier strip thru
terminals. The other is the recessed dual banana plug connector located on the top of the loudspeaker enclo-
sure. These connectors are also wired parallel with the input connectors.
Figures 19 and 20 show the input panel for full-range and low frequency ENTASYS loudspeakers.
Input Barrier Strip
Terminals
NL4-Type Locking
Connector

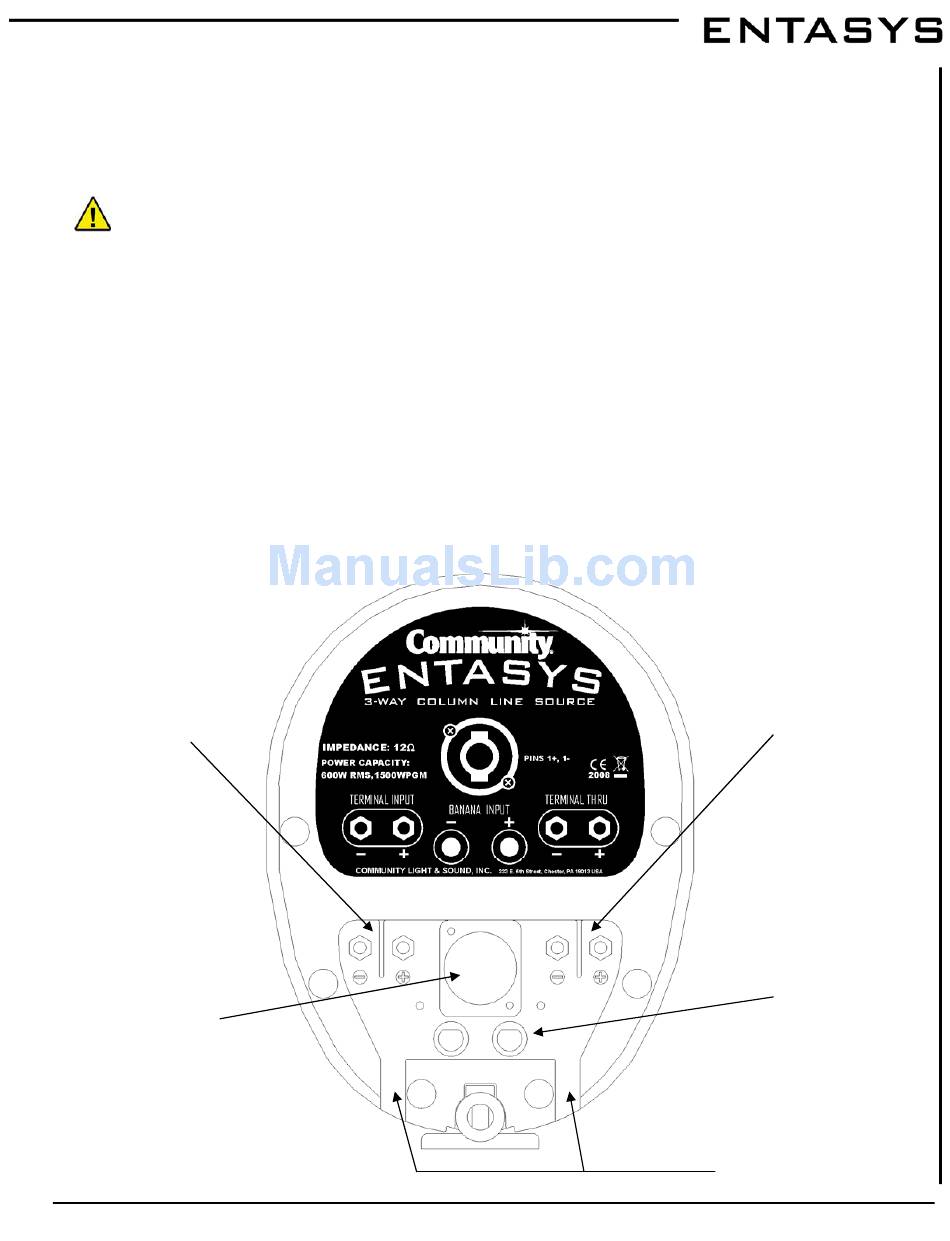

Figure 19: ENTASYS Full-Range Column Input Panel
Community ENTASYS Installation/Operation Manual — Page 35
Thru Barrier Strip
Terminals
Dual Banana Input
Connector
16-2 SJO Cable
Recess Areas
