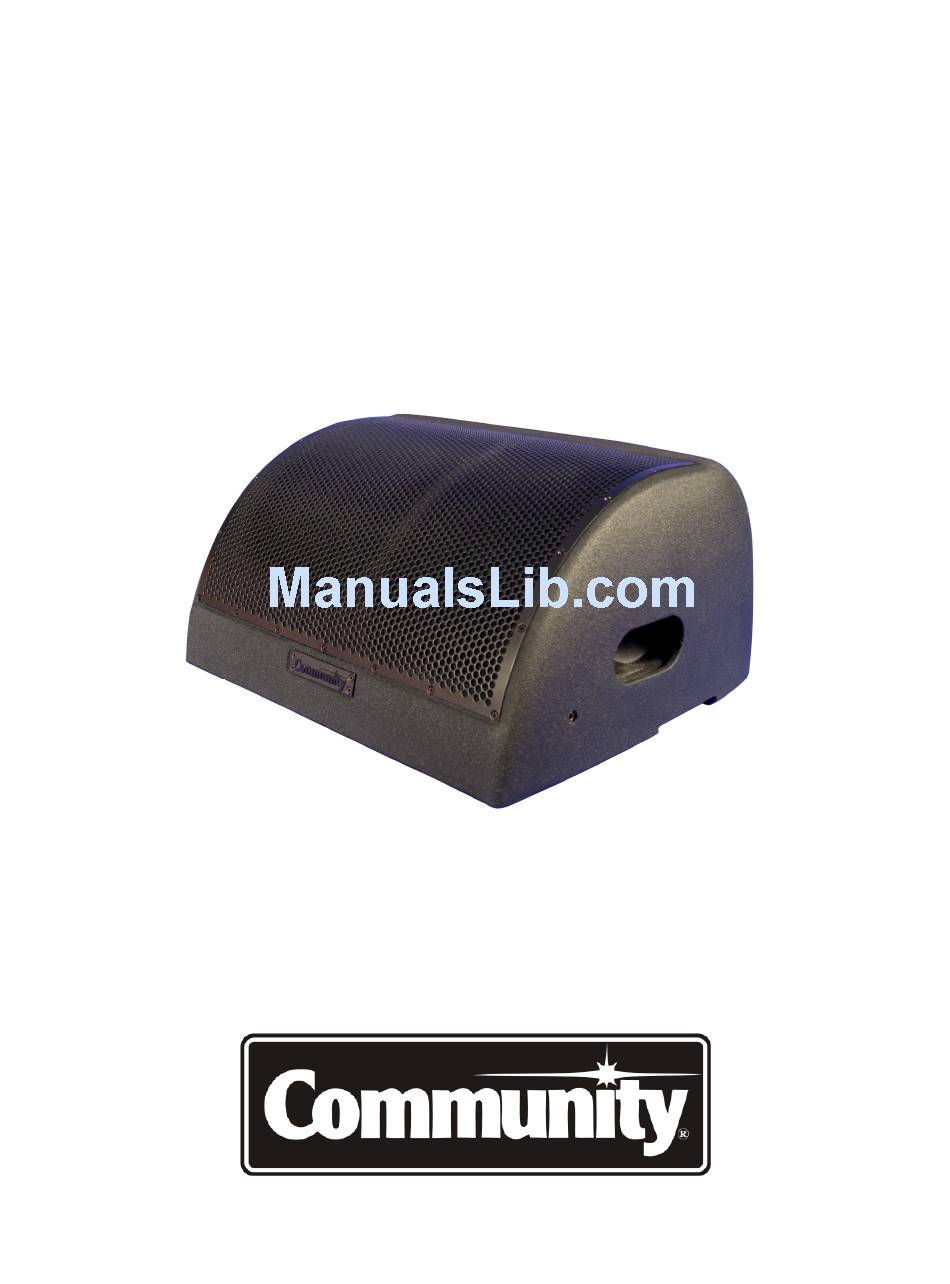

- Page 1 PROFESSIONAL STAGE MONITOR Operation Manual Operation and Installation Manual...
-
Page 2: Community M12 – Installation / Operation Manual
EC STATEMENT OF CONFORMITY This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meet all of the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements. Furthermore, the products comply with the rules and regulations referring to the electromagnetic compatibility of devices from 30-August-1995. -
Page 3: Table Of Contents
USA O ............14 RANSFERABLE ARRANTY IMITED ALID IN THE ..................... 15 BTAINING ARRANTY ERVICE USA ........15 ARRANTY NFORMATION AND ERVICE FOR OUNTRIES THER HAN THE Community M12 – Installation / Operation Manual - Page 3... -
Page 4: Important Safety Information
The Community dealer and the factory will try to help in any way possible, however, please remember it is up to the party receiving the shipment to file the claim. -
Page 5: Introduction
Community, and we will continue to do our best to live up to the reputation we have earned. In order for you to get the most from your Community purchase, we recommend that you take a few minutes and read this manual thoroughly. We have included a great deal of useful information to help you get the best possible performance from the M12 monitor. -
Page 6: Options And Accessories
Figure 2: M12 dispersion pattern The M12 is designed primarily as a performance monitor placed on the stage. Its low profile design makes it suitable for a wide range of stage monitoring situations, including music concerts, TV broadcasts and live theater events. -
Page 7: Mounting
NOTE: Standard portable versions of the M12 include built-in handles, while install versions include mounting points and a wall/ceiling mounting plate. The M12 monitor may also be custom ordered in any variety with or without handles and/or mounting points. Please contact the factory for more information. -
Page 8: Performance Monitoring
Figure 7: M12L with the HF horn molded to the left of the LF driver The M12 is provided with cable channels on the back and side of the loudspeaker, along with clips located on the bottom of the loudspeaker to neatly hold speaker cables, providing a safe and secure cable route to the locking Neutrik NL4 connectors. -
Page 9: Clip
8-ohm loudspeaker, connecting two (2) in this way creates a 4-ohm load across the amplifier, as shown in the top part of Figure 9. If desired, a third M12 can be added the same way, as shown in the lower part of Figure 9. -
Page 10: Permanent Installation
M10 hanging points. Connect the mounting bracket to the M12 using the four provided 40mm hex bolts, 10mm lock washers and 10mm flat washers. The entire assembly can then be mounted to a flat surface. The OmniMount bolt pattern on the back of the bracket is drilled out at the center of gravity for safe and secure mounting. - Page 11 (4) 10mm LOCK WASHER (4) 10mm FLAT WASHER WARNING: The bolts used and wall material into which the M12 and mounting plate assembly is bolted must be capable of supporting the load of the enclosure to be mounted. It is the responsibility of the installer to verify these items.
-
Page 12: Drawings And Specifications
5.813" [147.64] M10 HANG (2) M10 POINT M10 HANG POINT HANG POINT 10.500" [266.70] 2.750" [69.85] 2.750" [69.85] 17.250" [438.15] 11.625" [295.28] LEFT SIDE RIGHT SIDE REAR VIEW RIGHT REAR LEFT Community M12 – Installation / Operation Manual - Page 12... - Page 13 124 dB SPL / 131 dB SPL (peak) Nominal Impedance: 8 ohms LF - 8 ohms HF - 8 ohms Minimum Impedance: 5.3 ohms @ 1.9 kHz Crossover Frequency: 1.5 kHz Community M12 – Installation / Operation Manual - Page 13...
-
Page 14: Recommended Dsp Settings
Transferable Warranty "(Limited)” Valid in the USA Only Community M12 monitor loudspeakers are warranted in the USA to be free from manufacturing defects in materials and workmanship for a period of five years, as determined by one of the following two methods,... -
Page 15: Obtaining Warranty Service
This Community warranty is not extended by the length of time which an owner is deprived of the use of the product. - Page 16 Community Professional Loudspeakers 333 East Fifth Street, Chester, PA 19013-4511 USA Tel: 1-(610) 876-3400 | Fax: 1-(610)874-0190 www.communitypro.com © 2008 All Rights Reserved 20081222...
