The "T" Mounting Bracket may be used to attach a single ENTASYS loudspeaker directly to a wall.
Instructions for Attachment
1. Remove the "T" Mounting Bracket from the ENTASYS column to be mounted. See Figure 4 for instructions
on this removal.
2. Attach the "T" Mounting Bracket to the desired location. Extreme care should be used to assure that the
correct screws are used for the wall material or other substrate onto which the "T" Mounting Bracket is
mounted. As a hypothetical example, a 2x4 wall stud may not yield adequate strength and as a result may
split, whereas a 4x4 stud may be sufficient.
3. Use only screws with the proper countersunk heads as detailed in Figures 5 and 6. Failure to use the cor-
rect size screw head could lead to an unsafe mounting or not allow the ENTASYS enclosure to be placed on
the Mounting Bracket. A #12 screw is the largest size screw head that will fit flush in the countersink and not
interfere with placing the ENTASYS enclosure on the Mounting Bracket.
4. Use a screw in all sixteen (16) of the hole locations in the "T" Mounting Bracket as shown in Figure 7. Fail-
ure to do this may lead to an unsafe mounting.
5. Once the "T" Mounting Bracket has been securely mounted, verify that the Bottom Fitting is securely
fastened to the bottom of the "T" Mounting Bracket with its M6 Set Screw. This is critical as the en-
tire weight of the loudspeaker must be supported by this single Bottom Fitting.
6. Align the tabs on the "T" Mounting Brackets with the larger opening in the slot on the back of the ENTASYS
enclosure. Insert the "T" Mounting Bracket into the mating slot in the enclosure and slide the ENTASYS en-
closure down onto the "T" Mounting Bracket and into position. This is done in the same manner as reat-
taching the "T" Mounting Bracket shown in Figure 4.

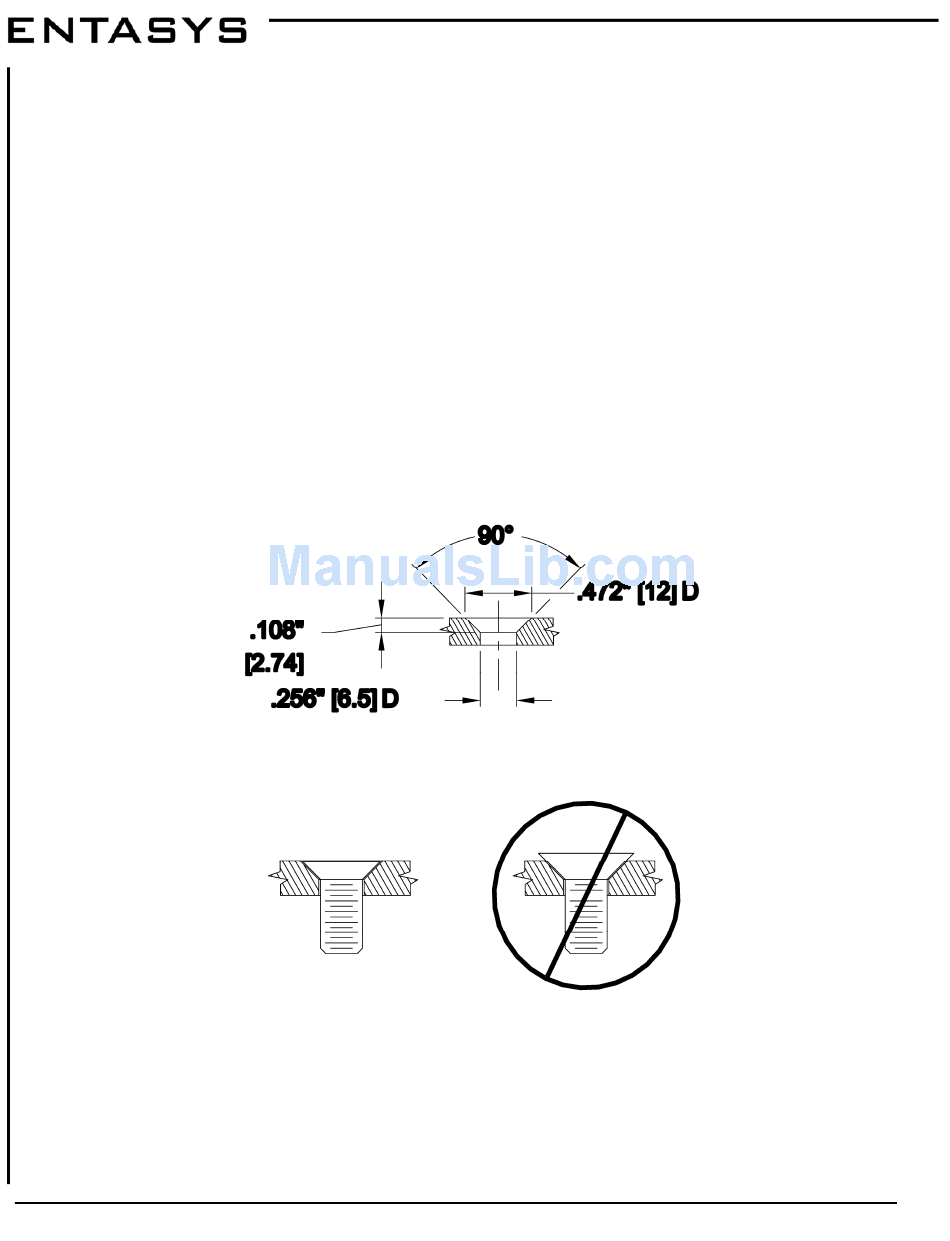

Figure 5: Countersink Detail
Figure 6: Countersink Screw Head Profile
