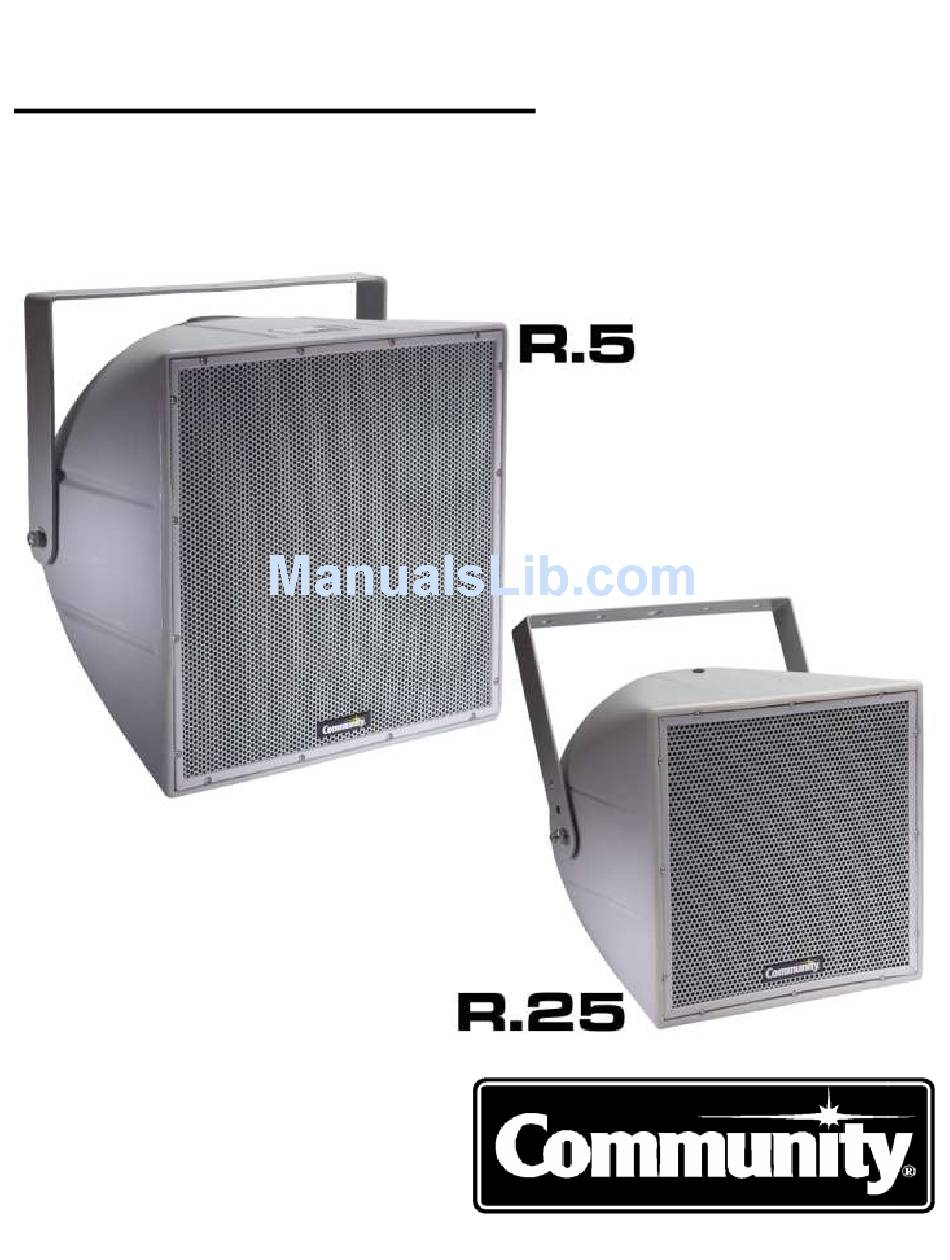

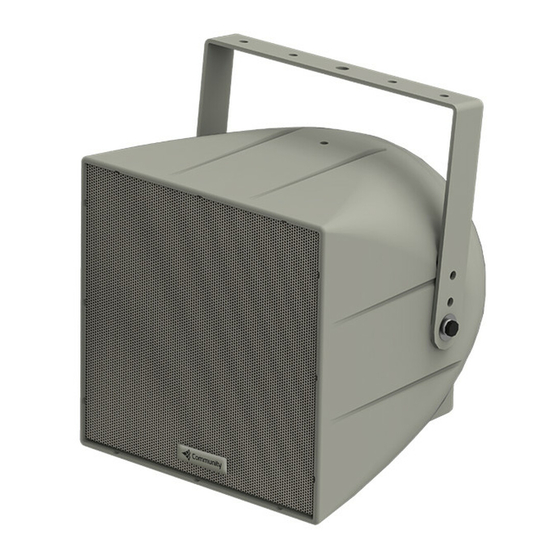

- Page 1 R-SERIES INSTALLATION / OPERATION MANUAL www.communitypro.com...
-
Page 2: Ec Statement Of Conformity
E C S TAT E M E N T O F C O N F O R M I T Y This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meets all of the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements. -
Page 3: Welcome To Community
A T R A D I T I O N O F E X C E L L E N C E A N D I N N O VAT I O N Since the founding of our company in 1968, Community has been a constant developer and innovator of loudspeaker technology. -
Page 4: Table Of Contents
R.5HP Specifications ....................Pages 32 - 33 R.5Z Specifications ...................... Pages 34 - 35 R.5SUB Specifications ....................Pages 36 - 37 Warranty and Service ......................Pages 38 - 39 Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 4... - Page 5 The latest version of this manual and the most recent product information published by Communtiy is always available at http://www.communitypro.com on the world wide web. The publication date can be found on the rear cover or last page. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 5...
-
Page 6: Important Safety Information
The terms IMPORTANT, WARNING, and DANGER are used throughout this manual to alert the reader to important safety considerations. If you have any questions or do not understand the meaning of these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community directly for assistance. These terms are defined below: IMPORTANT: describes an operating condition or user action that may expose the equipment or user to potential damage or danger. -
Page 7: Unpacking And Inspection
Your Community dealer and the factory will try to help in any way they can, but it is the responsibility of the party receiving the shipment to file the damage claim. -
Page 8: Quick Start
On 8-ohm versions the white conductor is positive (+) and the black is negative (-). See “Specifications” for T-Version connection guide. R.5 and R.25 models include an attached Mounting Yoke. R.5 models include a Mounting Yoke Multi-Angle Aiming Strap. R.25 models do not include this strap. -
Page 9: Features Of The
On 8-ohm versions the white conductor is positive (+) and the black is negative (-). See “Specifications” for T-Version connection guide. R.5 and R.25 models include an attached Mounting Yoke. R.5 models include a Mounting Yoke Multi-Angle Aiming Strap. R.25 models do not include this strap. -
Page 10: Electrical Installation And Safety
UV-stabilized polypropylene may be acceptable. See the Specifications section for the recommended amplifier power and the recommended high pass filter for each R.25 and R.5 model. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 10... -
Page 11: Mechanical Installation And Safety
This procedure will make it easier to reinstall the R.5 or R.25 to the yoke without the need to both hold the loudspeaker and align bolts with the mounting points. -
Page 12: Introduction
However, we recommend that you read this manual in its entirety, to ensure that your R-Series installation meets the highest possible standards. While every attempt has been made to ensure this information is correct and up-to-date, Community continuously incorporates worthwhile improvements to each product which may include changes and/or modifications not contained in this manual. - Page 13 Choose the three-way, higher-output R.5HP for medium-throw, full-range applications such as covering the stands at a high-school football stadium. Add the R.5SUB to any R.5 or R.25 system to provide low-frequency support for music.
-
Page 14: R-Series Features
Horn Technology Community is the originator and master of fiberglass horn manufacturing. The horns used in many WET II and R-Series loudspeakers are constructed as one-piece, precision waveguides by hand-crafting on a precision mold using 100% hand-laminated fiberglass. - Page 15 FEATURES Weather-Stop™ Grille Each enclosure is fitted with Community’s proprietary Weather-Stop™ protective grille. The grille consists of a corrosion-resistant outer layer of perforated steel with a proprietary zinc-rich epoxy dual-layer powder coat finish in light grey, a center layer of UV-resistant reticulated foam, and an inner layer of fine-mesh screen made from a UV-resistant synthetic material that blocks rain and fights rusting.
-
Page 16: R-Series Models
The R.5COAX two-way, full-range loudspeaker system provides the same quality sound as the other members of the R.5 family. Its wide range, smooth frequency response and high efficiency ensure both high fidelity music reproduction and superb projection of clear intelligible speech with very low distortion. -
Page 17: R-Series Accessories And Options
R - S E R I E S A C C E S S O R I E S A N D O P T I O N S Mounting Yoke and Multi-Angle Aiming Strap All R.25 and R.5 models include a stainless steel mounting yoke. A Multi-Angle Aiming Strap is included with R.5 models to help keep the loudspeaker aimed in the intended direction. -
Page 18: Installation
Positive voltage applied to the + wire produces positive acoustic pressure at the mouth of the loudspeaker. Impedance R.5 and R.25 loudspeakers are rated at 8-ohms nominal impedance. The impedance of transformer versions (“T” suffix) depends on the tap chosen. -
Page 19: Figure 1: Recommended Cable Gauge
Figure 1: Recommended Cable Gauge Recommended High-Pass Filter Community recommends use of a high-pass filter to prevent over-excursion of the LF driver from lower frequencies that it is not designed to reproduce. See the Specifications section for the recommended high-pass filter for each model. -
Page 20: Figure 2: Protection Capacitor Equation
INSTALLATION Use of Limiters Community recommends use of a limiter to help prevent loudspeaker damage due to sudden transients (dropped microphones, etc.) or amplifier clipping. When used for this purpose, connect the limiter as the last item in the signal chain before the power amplifier (at the input to the power amplifier). Set the limiter’s “threshold”... - Page 21 70-volt lines. For 100-volt lines, use a pair of 10,000-ohm resistors. Bi-amplification R.5 and R.25 products include an internal passive crossover network. They are not designed for biamplification. 70-Volt, 100-Volt Autoformer Transformer versions (“T” suffix) include an internal 200W, 70/100V autoformer or transformer. For 70V lines the input taps are 200W, 100W, 50W and 25W.
-
Page 22: Figure 4: Mounting Point Detail
The second area of responsibility is the loudspeaker itself. Community certifies its loudspeaker systems for suspension when they are properly installed according to our published guidelines. -
Page 23: Figure 5: Use Of The Multi-Angle Aiming Strap
Using Yoke Brackets Community provides one yoke-type mounting bracket with each R.25 or R.5 loudspeaker. In most cases, this will be the preferred hardware for mounting these products. The yoke attaches to the sides of the cabinet with the provided fasteners. - Page 24 Community does offer in its catalog forged, rated eyebolts intended for rigging loudspeakers. However, these eyebolts are not rated for outdoor use and the shank is too long for the threaded inserts on R.25 and R.5 loudspeakers. Using an eyebolt with too long of a shank will not permit the eyebolt shoulder to properly seat against the exterior of the cabinet.
- Page 25 96 dB SPL on the A Scale (speech range). Consider a high-school football stadium where the crowd noise is 86 dBA. At the recommended distance, an R.25 or R.5 would provide 10 dB headroom above the crowd noise. Even if the crowd noise reaches 90 dBA, the R.25 or R.5 would still provide 6 dB of headroom which is acceptable for voice paging and announcement systems (use a limiter to avoid clipping).
-
Page 26: Important Installation Notes
Installation Equipment Manufacturers’ Association (EIEMA). We recommend angling the R.5 or R.25 loudspeaker at least 15 degrees downward so as to reduce the pos- sibility of rain and other precipitation compromising the performance of the loudspeaker. The R.5 or R.25 will maintain an EIEMA rating of IP51 in this orientation. -
Page 27: System Optimization
(or both). Note that R-Series loudspeakers are factory voiced to optimize their speech intelligibility and musical sound quality. For this reason, many designers find they can minimize overall system equalization and still achieve excellent voice intelligibility and musical sound quality. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 27... -
Page 28: R.25 Specifications
20 lbs (9.1 kg) 23 lbs (10.4 kg) * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 28... -
Page 29: R.25 Specifications
Pos. 2 Pos. 3 Pos. 4 R.25-94Z Negative Positive R.25-94TZ (70V) Negative Positive 100W 200W R.25-94TZ (100V) Negative Positive 100W 200W R.25 Dimensions R.25 Yoke Mounting Bracket (included) Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 29... -
Page 30: R.5Coax Specifications
35 lbs (15.9) kg 38.5 lbs (17.4 kg) * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 30... -
Page 31: R.5Coax Specifications
200W 100W “T” Models 100V Negative Positive 200W 100W R.5COAX Dimensions 15.94" 16" (404.88mm) (406.4mm) 16" (406.4mm) R.5COAX Yoke Mounting Bracket (included) SIDE VIEW FRONT VIEW REAR VIEW Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 31... -
Page 32: R.5Hp Specifications
42.3 lbs (19.2 kg) 45.5 lbs (20.6 kg) * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 32... - Page 33 Version Black White Brown Orange Yellow R.5HP (6 ohm) Negative Positive R.5HPT, 70V Negative 200W 100W R.5HPT, 100V Negative 200W 100W R.5HP Dimensions R.5HP Yoke Mounting Bracket (included) Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 33...
-
Page 34: R.5Z Specifications
Weight “TZ” Suffix: 37 lbs / 16.8 kg * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 34... - Page 35 Positive 200W 100W R.5-xxTZ (100V) Negative Positive 200W 100W R.5Z Dimensions 15.94" 16" (404.88mm) (406.4mm) 16" (406.4mm) SIDE VIEW FRONT VIEW REAR VIEW R.5Z Yoke Mounting Bracket (included) Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 35...
-
Page 36: R.5Sub Specifications
35 lbs (15.9) kg 39 lbs (17.7 kg) * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 36... - Page 37 Negative 200W 100W R.5 SUB-T 100V Negative 200W 100W R.5SUB Dimensions 15.94" 16" (404.88mm) (406.4mm) 16" (406.4mm) SIDE VIEW FRONT VIEW REAR VIEW R.5SUB Yoke Mounting Bracket (included) Community R-Series Installation/Operation Manual for Models R.5 and R.25 — Page 37...
-
Page 38: Warranty And Service
Any driver or crossover service required is done from the front of the enclosure by removing the screws around the edge of the grille. For warranty repair, contact Community directly or ask us for the location of your nearest Author- ized Service Center. - Page 39 This Community warranty is not extended by the length of time which an owner is deprived of the use of the product. Repairs and replacement parts provided under the terms of this warranty shall carry only the remaining portion of the warranty.
- Page 40 Community Professional Loudspeakers 333 East Fifth Street Chester, PA 19013-4511 USA TEL: 1-(610) 876-3400 FAX: 1-(610) 874-0190 www.communitypro.com © 2013 All Rights Reserved 28JUN2013...
