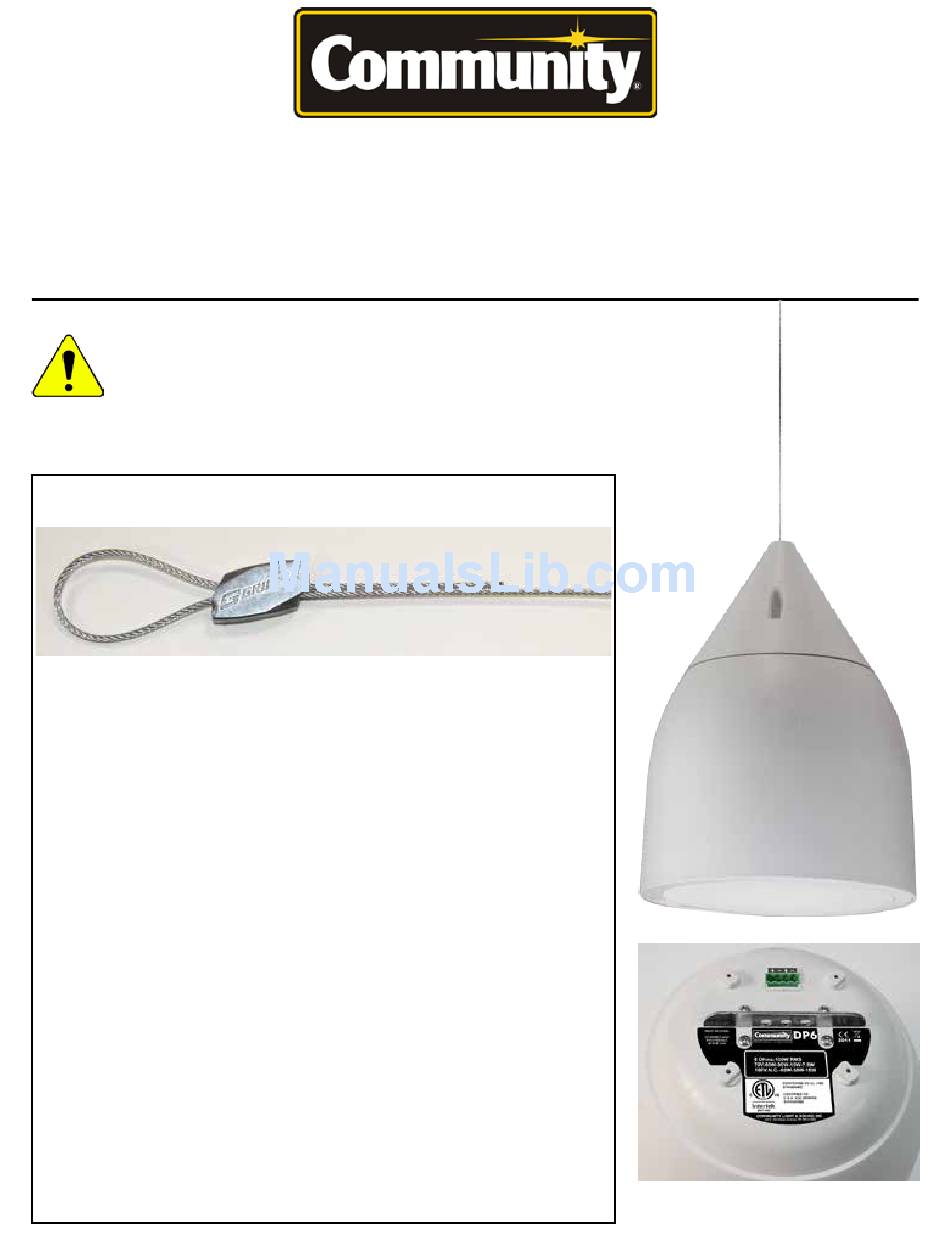

Community DP6 Installation Manual

Distributed Design Series
DP6 and DP8 Pendant Loudspeaker
CAUTION: Installation of DP6 and DP8 loudspeakers should
only be performed by trained and qualified personnel. It is
strongly recommended that a licensed and certified professional
structural engineer approve the mounting. Severe injury and/or
loss of life may occur if this product is improperly installed.
Gripple Manufacturer's Recommendations and Important Notes
®
Gripple manufactures the speed clamps provided with this product. To ensure
maximum safety, it is essential to follow their recommendations as listed below.
• For indoor use in a dry environment.
• Do not apply lubricant to any part of the assembly as this will alter the surface
of the cable, attracting dirt and debris to adhere and possibly reducing the load
capacity due to lubricant-induced slippage.
• Do not use on lifting applications; for static loads only.
• Do not use for loads outside the stated range of the product. The Gripple
wedges work by using the weight of the load to draw the wedge into the cable,
creating a secure grip. If used with too light a load, the wedge may not be able
to securely grip the cable.
• Do not exceed the Safe Working Load (SWL) of the product. Each product is
load rated and incorporates a minimum safety factor of 5:1. The SWL takes into
account the specification criteria of the Gripple, the cable and the pressed ferule.
• The #2 Gripple products supplied have the suitable minimum load and
the maximum SWL specifications to be used with Community's pendant
loudspeakers.
• Do not use on coated wire rope. Prior to assembly, it is essential to strip off
any coating on the length of cable to be inserted into the Gripple. It is important
to maintain the metal-to-metal contact between the locking wedges in the Gripple
and the cable.
• When applying paint or other coating, ensure that a dedicated Gripple decor
cover is used to cover the Gripple. This will ensure that the movement of the
locking wedges inside the assembly is not impaired. After painting, the Gripple
should not be repositioned on the cable.
• Do not use standard zinc galvanized Gripple products in chlorinated
environments. Use only Stainless Steel Gripple products in these environments.

Installation Guide

™
Suspension bracket and input jack detail
