Summary of Contents for Community Entasys

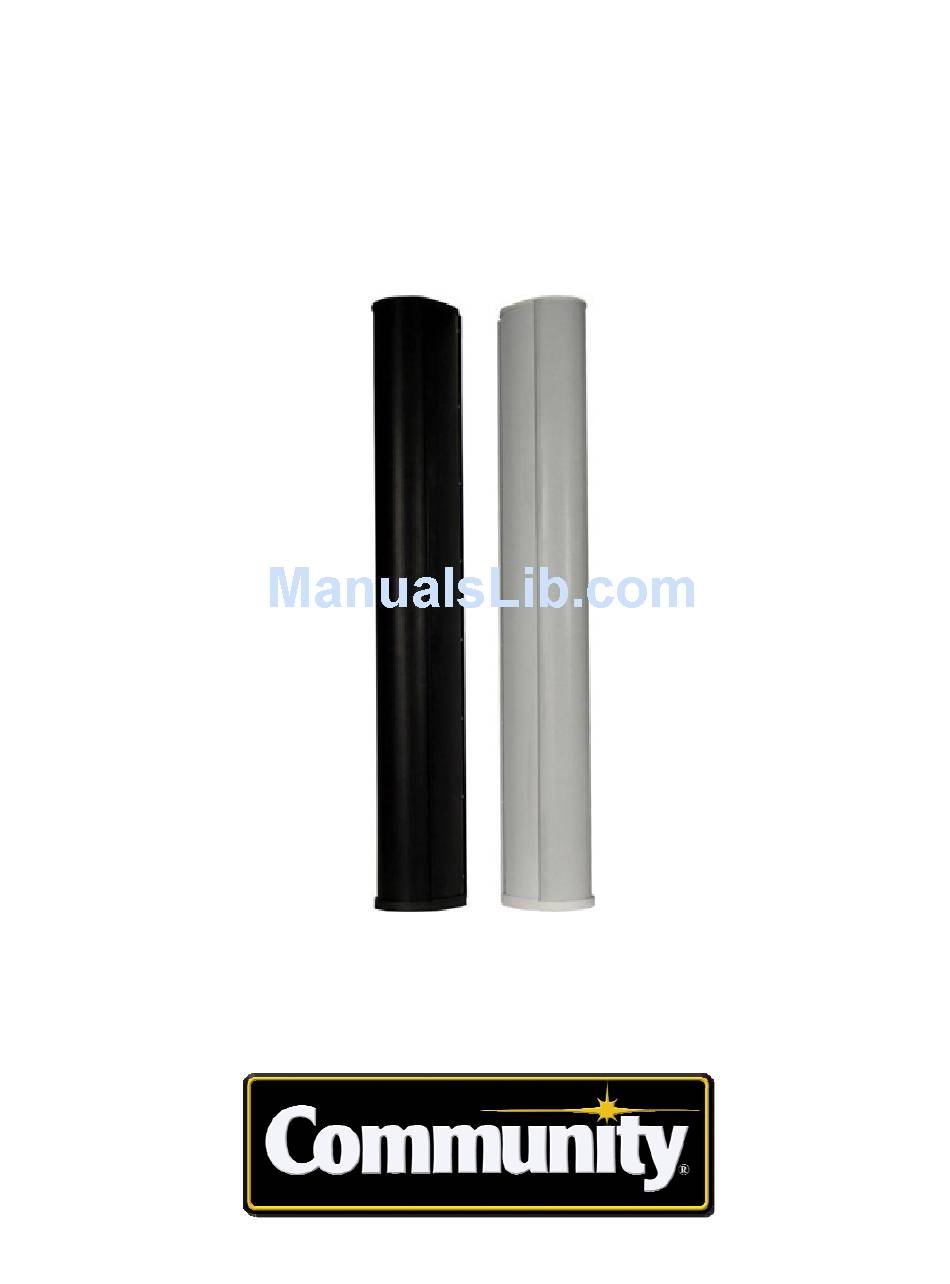

- Page 1 ENTASYS HIGH-PERFORMANCE COLUMN LINE-ARRAY SYSTEM INSTALLATION/OPERATION MANUAL www.communitypro.com...
-
Page 2: Ec Statement Of Conformity
E C S TAT E M E N T O F C O N F O R M I T Y This document confirms that the range of products of Community Professional Loudspeakers bearing the CE label meets all of the requirements in the EMC directive 89/336/EEC laid down by the Member States Council for adjustment of legal requirements. -
Page 3: Welcome To Community
A T R A D I T I O N O F E X C E L L E N C E A N D I N N O VAT I O N Since the founding of our company in 1968, Community has been a constant developer and innovator of loudspeaker technology. -
Page 4: Table Of Contents
Figure 4: ENTASYS Mounting Bracket Removal ................Page 17 Figure 5: ENTASYS Mounting Bracket Countersink Detail ............. Page 18 Figure 6: ENTASYS Mounting Bracket Countersink Screw Head Profile ........Page 18 Figure 7: Wall Mounted ENTASYS “T” Mounting Bracket ............... Page 19 Figure 8: ENTASYS Coupler Bracket .................... - Page 5 Figure 21: NL4 Connection Detail ....................Page 36 Figure 22: ENTASYS Bottom Cover Panel with NPT Knock-Out ........... Page 37 Figure 23: ENTASYS Top Recess with Dual Banana Plug Jumper ..........Page 40 Figure 24: ENTASYS MF/HF Module Screw Locations ..............Page 43 Figure 25: ENTASYS Full-Range Curved &...
-
Page 6: Important Safety Information
If you have any questions or do not understand the meaning of these terms, do not proceed with installation. Contact your local dealer, distributor, or call Community directly for assistance. IMPORTANT: describes an operating condition or user action that may expose the equipment or user to potential damage or danger. -
Page 7: Unpacking And Inspection
Make sure to save the carton and the packing material, as most claims will be denied if these materials are not retained. Your Community dealer and the factory will try to help in any way they can, but it is the responsibility of the party receiving the shipment to file the damage claim. -
Page 8: Quick Start
QUICK START - FEATURES E N TA S Y S F E AT U R E S Figure 1 below on this page and Table 1 on the following page identify basic ENTASYS features. Figure 1: ENTASYS Features Community ENTASYS Installation/Operation Manual — Page 8... -
Page 9: Table 1: Entasys Features
Note: The Bottom Fitting must be securely fastened to the Mounting Bracket. This fitting supports the entire weight of all ENTASYS loudspeakers stacked together. This fitting must be removed from any upper ENTASYS loudspeakers that are to be stacked on top of another ENTASYS loudspeaker. -
Page 10: Electrical Installation And Safety
The top most ENTASYS in an array should have the included rubber plug inserted into the Banana Thru relief at the top of the loudspeaker. This will prevent moisture or debris from entering this relief area. This rubber plug should not be used for lower ENTASYS loudspeakers in an array. -
Page 11: Mechanical Installation And Safety
Make sure there is a Bottom Fitting at the bottom of the lower most Mounting Bracket and that its M6 set screw is securely in place. This fitting must support the entire weight of the loudspeaker. Once the ENTASYS loudspeaker is on the Mounting Bracket, fully tighten each of the eight M4 set screws to secure it to the Mounting Bracket. -
Page 12: Introduction
They are easy to install and provide unparalleled sound quality in a loudspeaker of this type. This manual is intended to help you install and use ENTASYS loudspeakers safely and effectively. It provides useful information to help you obtain the best performance, sound quality, and reliability from your ENTASYS system. - Page 13 Because the first and second stages of Community’s DYNA-TECH circuits are not thermally sensitive, they react nearly instantaneously to protect against an excessive increase in level.
-
Page 14: Entasys Models
Ribbon Emulator, a device that allows a line of 1-inch drivers to effectively produce a single ribbon of energy. The spacing of the drivers used in ENTASYS has been optimized for the frequency region that they reproduce to minimize the formation of grating lobes in the vertical plane. - Page 15 The low frequency column is not intended as a low frequency extension device or a subwoofer. It is for use to augment the maximum output level of the low frequency pass band for ENTASYS as well enhancing its directivity control in this frequency region. This is illustrated by comparing the vertical directivity map of a single full-range column (Figures 2) with a full-range and two low frequency columns (Figures 3).
-
Page 16: Figure 2: Vertical Directivity Map 1X Full-Range
MODELS Figure 2: Vertical Directivity Map of One ENTASYS Full-Range Column at 50 meters EASE SpeakerLab EASE SpeakerLab Community ENTASYS Installation/Operation Manual — Page 16... -
Page 17: Figure 4: Entasys Mounting Bracket Removal
This is most easily accomplished by either laying the ENTASYS loudspeaker on its side or placing it upside down on a level surface. There are eight set screws, four on each side of the rear of the enclosure, that secure this bracket to the enclosure. -
Page 18: Figure 5: Entasys Mounting Bracket Countersink Detail
Bottom Fitting. 6. Align the tabs on the “T” Mounting Brackets with the larger opening in the slot on the back of the ENTASYS enclosure. Insert the “T” Mounting Bracket into the mating slot in the enclosure and slide the ENTASYS en- closure down onto the “T”... -
Page 19: Figure 7: Wall Mounted Entasys "T" Mounting Bracket
ACCESSORIES WARNING: The screws used and wall material onto which the Mounting Bracket is attached must be capable of supporting the load of the ENTASYS loudspeaker to be mounted. It is the responsibility of the installer to verify these items. -
Page 20: Figure 8: Entasys Coupler Bracket
Coupler Bracket assembly with its M6 Set Screw. This is critical as the entire weight of the array must be supported by this single Bottom Fitting. 7. Tighten all eight of the M4 Set Screws in each ENTASYS enclosure to secure it to its “T” Mounting Bracket (see Figure 4). - Page 21 8. Align the tabs on the “T” Mounting Bracket with the larger opening in the slot on the back of the ENTASYS enclosure. Insert the “T” Mounting Bracket into the slot in the enclosure and slide the enclosure down onto the “T”...
-
Page 22: Figure 9: Entasys Pan Bracket
M6 nuts must be securely tightened to keep the array in position and have a safe mounting. 11. If multiple ENTASYS columns are to be mounted in an array with the Pan Bracket, first connect the individ- ual T-Bar Mounting Brackets using the appropriate number of ENTASYS Coupler Brackets and perform Step #6 by attaching the entire T-Bar Mounting Bracket and Pan Bracket assembly to the wall. -
Page 23: Figure 10: Entasys Pan-Tilt Bracket On Multiple Columns
WARNING: The bolts used and wall material into which the Pan Bracket assembly is bolted must be capable of supporting the load of the ENTASYS array to be mounted. It is the responsibility of the installer to verify these items. -
Page 24: Figure 11: Entasys Pan-Tilt Bracket - Top Assembly
ACCESSORIES Figure 11: Pan-Tilt Bracket - Top Assembly Figure 12: Pan-Tilt Bracket - Bottom Piece Community ENTASYS Installation/Operation Manual — Page 24... - Page 25 20mm bolt, lock washer, and flat washer. 9. Place the Pan-Tilt Bracket assembly on the wall where the ENTASYS array is to be installed. Mark the posi- tions on the wall where the holes in the Pan-Tilt Bracket are located.
-
Page 26: Table 2: Pan-Tilt Bracket One Column Down Angles
10 8.4 3x Medium + 2x Large 25 9.6 11 8.9 26 9.9 12 9.4 27 NA 2x Large 13 9.9 28 NA 14 NA 15 NA 16 NA Community ENTASYS Installation/Operation Manual — Page 26... -
Page 27: Table 5: Pan-Tilt Bracket Four Column Down Angles
“Holes” column in these tables. WARNING: Do not extend ENTASYS arrays beyond a 10° down angle for a one, two, or three column array or beyond a 5° down angle for a four or five column array. Attempting to do so will exceed the Working Load Limit of the bracket and could result in the failure of the bracket and potentially result in severe injury and/or loss of life. -
Page 28: Figure 13: Entasys Pan-Tilt Bracket - Cover Assembly
ENTASYS Fly Kit: ENT-FK, ENT-FKW The ENTASYS Fly Kit (Figure 14) can be used to suspend an array of up to five ENTASYS modules. The Fly Bracket provides multiple attachment points at the top of an array while the Pull Back Bracket provides points lower on the array for additional aiming flexibility. - Page 29 ACCESSORIES 4. Slide the “T” Mounting Bracket into the ENTASYS enclosure(s). Securely tighten each of the eight M4 Set Screws in each ENTASYS enclosure to attach the “T” Mounting Bracket to the enclosure(s). 5. Insert the Rubber Plug into the Dual Banana Plug Thru Connector recess.
-
Page 30: Figure 14: Entasys Fly Kit
ACCESSORIES Figure 14: Fly Kit Community ENTASYS Installation/Operation Manual — Page 30... -
Page 31: Figure 15: Transformer Mounting Below Array
Figure 15. This is the only way to mount the transformer if it is to be placed below an ENTASYS array. The transformer may be electrically connected to the ENTASYS array using the barrier strip terminals on the top of the transformer. -
Page 32: Recommended Low Frequency Loudspeakers
The input wires to the transformer are then attached to the barrier strip terminal. Note the proper terminals to which the input wires should be connected to yield the desired maximum drive level to an ENTASYS array comprised of one, two, or three columns. This information is printed on the input label of the transformer and is shown in Figure 18. -
Page 33: Table 7: Recommended Crossover Filter Settings For Use With Subwoofers
40 Hz. The VLF series and VERIS loudspeakers also feature DYNA-TECH overload protection circuitry to prevent system damage. Recommended crossover filter settings for use with these Community subwoofers are given in Table 7. Table 7: Recommended Crossover Filter Settings Model ... -
Page 34: Figure 18: Ent-750T Transformer Input Label And Connectors
ACCESSORIES Figure 18: ENT-750T Transformer Input Label and Connectors Community ENTASYS Installation/Operation Manual — Page 34... -
Page 35: Installation
Connections ENTASYS loudspeakers are equipped with three methods of connecting input signal wires. One is an industry standard NL4-type locking connector. The second is a standard dual banana jack connector. The third is a two position barrier strip terminal. -
Page 36: Figure 20: Entasys Low Frequency Column Input Panel
INSTALLATION The connectors located on the bottom of the ENTASYS loudspeaker enclosure are in a recessed area. Relief areas leading into and out of this area through the rear of the enclosure allow for cables up to size 16-2 SJO. A bottom cover panel is provided to seal this area when using the barrier strip terminals. This improves the weather-resistant nature of the enclosure. -
Page 37: Figure 22: Entasys Bottom Cover Panel With Npt Knock-Out
The correct wiring of the NL4-type connector is shown in Figure 21. Recommended High Pass Filters When operating ENTASYS loudspeaker systems, it is strongly recommend to use an external, active high pass filter to protect the woofers from excessive low frequency excursion. High pass filters will help protect the loudspeaker against damage from over excursion and will avoid using amplifier power that’s wasted from... -
Page 38: Table 8: Impedance Of Multiple Loudspeaker Columns
Frequency column loudspeaker also has a 12 ohm rated impedance. Because of the unique design of ENTASYS it is possible to stack multiple enclosures together and drive them from a single amplifier channel. See Table 8 below for details on the impedance of multiple ENTASYS loudspeakers driven in parallel. -
Page 39: Table 9: Recommended Amplifier Size
4.1 1.6 2.3 7.1 9.3 11.8 3.9 5.5 14.8 17.0 4.6 1.7 2.4 7.6 9.8 12.0 4.0 5.7 15.1 17.3 5.1 1.8 2.5 8.1 10.3 14.5 5.3 7.5 17.5 19.7 Community ENTASYS Installation/Operation Manual — Page 39... -
Page 40: Figure 23: Entasys Top Recess With Dual Banana Plug Jumper
Connecting Individual Loudspeakers in an Array to Separate Amplifier Channels For arrays that contain more ENTASYS loudspeakers than can be driven from a single amplifier channel, multiple amplifier channels should be used. Ideally, the same amplifier model (and settings) should be used to drive each loudspeaker. -
Page 41: Table 11: Recommended Cable Gauge
INSTALLATION Cable Type and Gauge Community recommends stranded, twisted-pair loudspeaker cable. Insulation should be rated for 600 volts or higher. For outdoor installations, choose a cable designed for the application. For permanently installed systems, a slick, vinyl type insulation is easier to pull through conduit. For portable applications, a rubberized type insulation is more flexible. -
Page 42: Rigging/Suspension And Safety
WARNING - NON-COMMUNITY RIGGING HARDWARE: Non-Community hardware used for rigging an ENTASYS loudspeaker must be certified by the supplier for this use and must be properly rated for safety. Important Notes on Rigging Loudspeakers There are three areas of responsibility for rigging loudspeakers. -
Page 43: System Design Guidelines
ENTASYS grilles are powder-coated steel. To paint the grille, carefully remove the cloth backing and use paint that is compatible with powder coating to paint the grille. Do not paint the cloth. Contact Community for replacement grille cloth. Apply the grille cloth by using a fine mist of spray adhesive on the grille. (Do not spray adhesive on the cloth.) Then, attach the cloth by passing it onto the interior surface of the grille. -
Page 44: Figure 25: Entasys Full-Range Curved & Straight Configurations
The curved configuration uses three other size spacers (31.4 mm, 23.2 mm, and 9.5 mm) in addition to the 34.2 mm spacer. To reconfigure ENTASYS to the straight configuration remove each mid/high frequency module and replace each of the smaller spacers with a 34.2 mm spacer. -
Page 45: Table 12: Frequency, Wavelength, Column Size, And Directivity Control
Table 12 shows the relationship between frequency, wavelength, the size of single and multiple column ENTASYS arrays, and the directivity control expected. When the line length is approximately four times the wavelength (or greater) at a given frequency, the directivity control should be good at this frequency. When the line length is approximately two times the wavelength at a given frequency, the directivity control will be decreasing but acceptable. -
Page 46: Commissioning
(or both). Note that ENTASYS loudspeakers are factory voiced to optimize their speech intelligibility and musical sound quality. For this reason, many designers find they can minimize overall system equalization and still achieve excellent voice intelligibility and musical sound quality. -
Page 47: Single Full-Range Column
Figure 26. This is an SPL map generated by EASE Focus from the measured data of the individual pass bands of an ENTASYS column. The SPL for the three octave band centered at 1 kHz ranges from 93-99 dB across the entire 80 foot long listening area. -
Page 48: Figure 27: Spl Map Of Two Full-Range Columns (1 Khz)
1 kHz will result in a more narrowly focused main lobe at these lower frequencies. Figure 28 shows an SPL map for a single ENTASYS full-range column for the one octave band centered at 500 Hz . Figure 29 shows the same map but with a single low frequency column placed on top of the full-range column. -
Page 49: Figure 28: Spl Map Of One Full-Range Column (500 Hz)
At the same time the coverage of the array may actually be increasing due to the increased height of the array. While this may seem counterintuitive, an illustration may help to demonstrate this effect. Community ENTASYS Installation/Operation Manual — Page 49... -
Page 50: Figure 30: Spl Map Of One Full-Range Column (2 Khz)
ARRAY COVERAGE CONFIGURATIONS Figures 30 - 32 show 1, 3, and 6 ENTASYS full-range columns in a straight configuration for a one octave band centered at 2 kHz. The center of each array is at a height of 15 feet to make comparison of the sound radiation easier. -
Page 51: Table 13: Entasys Full-Range & Low Frequency Column Specifications
44.5 x 5.5 x 7.36 inches 44.5 x 5.5 x 7.36 inches H x W x D (1,129 x 140 x 187 mm) (1,129 x 140 x 187 mm) Weight 40 lbs (18.1 kg) 25 lbs (11.3 kg) Shipping Weight 48 lbs (21.8 kg) 32 lbs (14.5 kg) * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community ENTASYS Installation/Operation Manual — Page 51... -
Page 52: Table 14: Entasys 750 W Transformer Specifications
200 Hz ‐ 7 kHz +0.5 / ‐1.0dB 2FR or 2FR+1LF 1FR+1LF or 1FR+2LF or 200 Hz ‐ 15 kHz +0.5 / ‐2.0dB 2FR or 2FR+1LF 3FR 200 Hz ‐ 7 kHz +1.0 / ‐1.0dB 3FR 200 Hz ‐ 15 kHz +1.0 / ‐3.0dB * Community strives to improve its products on a continual basis. Specifications may therefore be subject to change without notice. Community ENTASYS Installation/Operation Manual — Page 52... -
Page 53: Entasys Full-Range Column
DIMENSIONS Figure 33: ENTASYS Full-Range Column Dimensions Community ENTASYS Installation/Operation Manual — Page 53... -
Page 54: Entasys Low Frequency Column
DIMENSIONS Figure 34: ENTASYS Low Frequency Column Dimensions Community ENTASYS Installation/Operation Manual — Page 54... -
Page 55: Figure 35: Ent-750T 750-Watt Autoformer Dimensions
DIMENSIONS Figure 35: ENT-750T 750-watt Autoformer Dimensions Community ENTASYS Installation/Operation Manual — Page 55... -
Page 56: Field Service
Community Field Service Stations. This warranty is void if the serial number has been defaced, altered, or removed. Products covered by this warranty will be repaired or replaced at the option of Community, without charge for materi- als or labor, provided all the terms of this warranty have been met. - Page 57 This Community warranty is not extended by the length of time which an owner is deprived of the use of the product. Repairs and replacement parts provided under the terms of this warranty shall carry only the remaining portion of the warranty.
- Page 58 NOTES Community ENTASYS Installation/Operation Manual — Page 58...
- Page 59 NOTES Community ENTASYS Installation/Operation Manual — Page 59...
- Page 60 ENTASYS HIGH-PERFORMANCE COLUMN LINE-ARRAY SYSTEM Community Professional Loudspeakers 333 East Fifth Street Chester, PA 19013-4511 USA TEL: 1-(610) 876-3400 FAX: 1-(610) 874-0190 www.communitypro.com © 2009 All Rights Reserved ENTASYS OM 20090709...
