all of the locations. The curved configuration uses three other size spacers (31.4 mm, 23.2 mm, and 9.5 mm) in
addition to the 34.2 mm spacer. To reconfigure ENTASYS to the straight configuration remove each mid/high
frequency module and replace each of the smaller spacers with a 34.2 mm spacer.
Each of the mid/high frequency modules are attached to the baffle with four, M4 screws. These screw
into taped holes in the aluminum baffle. There are no nuts to have to hold or catch inside the enclosure. Shorter
screws are used with some of the smaller spacers. These will need to be replaced with the included longer
60 mm screws when the larger 34.2 mm spacer is used.

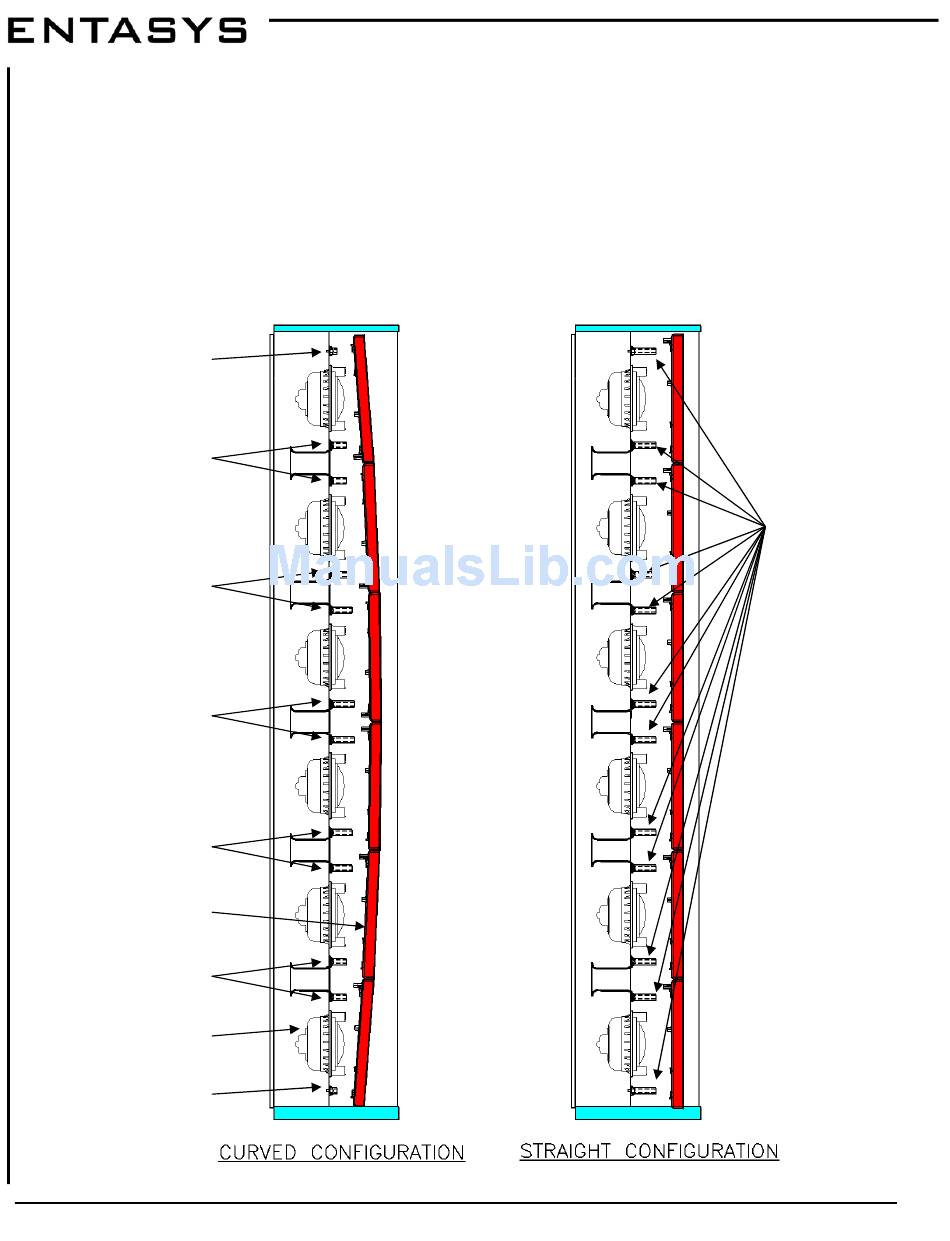

Figure 25: ENTASYS Full-Range Curved and Straight Configuration
9.5 mm Spacer (1)
23.2 mm Spacer (2)
31.4 mm Spacer (2)
34.2 mm Spacer (2)
31.4 mm Spacer (2)
MF/HF Driver Module
23.2 mm Spacer (2)
LF Driver
9.5 mm Spacer (2)
Community ENTASYS Installation/Operation Manual — Page 44
INSTALLATION
34.2 mm Spacer (12)
