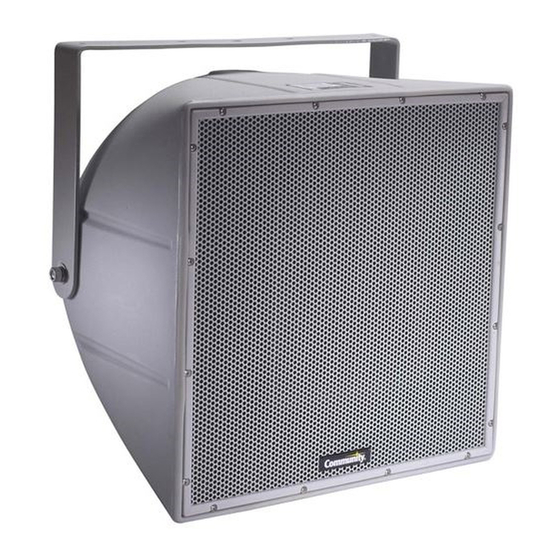

- Page 1 R SERIES Installation and Operation Manual MODELS R.25-94Z/TZ R.5COAX/T R.5-xxZ/TZ R.25 R.5HP/HPT R.5SUB/-T...
-
Page 2: Introduction
R SERIES products perform consistently in continuous outdoor exposure while simultaneously providing superlative acoustic performance. This manual is intended to help you install and use R SERIES loudspeakers safely and effectively. It provides useful information to help you obtain the best performance, sound quality, and reliability from your R SERIES systems. -
Page 3: Table Of Contents
Electrical Installation and Safety ..........Page 7 Mechanical Installation and Safety ..........Page 8 Important Installation Notes ............Page 8 R SERIES Information Description of the R SERIES ............Page 9 R SERIES Models ..............Pages 10-11 R SERIES Accessories and Options ..........Page 11 Installation Electrical Installation and Safety ........ -
Page 4: Important Safety Information
DANGER: R SERIES rigging fittings are rated at a Working Load Limit indefinitely, if possible, in the event (WLL) of 100 lbs (45.4kg) with a 10:1 safety margin. No single rigging that the unit may need to be returned... -
Page 5: Quick Start
fitting. Plug cap not to be confused with adjacent black rubber cap on mounting/ Selection Switch rigging point. Rotary switch operated with a flat-head #1 common screw driver and “clicks” for each tap. R SERIES R.5 and R.25 Installation/Operation Manual Page 5... -
Page 6: Features Of The
Input tap selection switch concealed behind plastic hex screw (11mm, 7 /16”). Rotary switch operated with a flat-head #1 screw driver. Selection Switch Note: R.5 models do not include a pole mount socket. Page 6 Installation/Operation Manual R SERIES R.5 and R.25... -
Page 7: Electrical Installation And Safety
Electrical Connections and Cabling R SERIES input is via an attached 16-gauge SJOW cable rated for outdoor use. This cable is approximately 12 feet (4m) in length. The table below shows the input connections for each model. Note that selected 70V/100V models have selector switches in place of the multi-wire cable. -
Page 8: Mechanical Installation And Safety
R.5, R.5HP, R.5COAX, R.5SUB and R.25 will maintain an IEC 60529 rating of IP55W. FOR MORE INFORMATION For more information on installing and operating your R SERIES loudspeaker, please refer to the “Installation and Connections” section of this manual or go to Community’s web site at www.communitypro.com. -
Page 9: R Series Information
In many cases, a small number of R SERIES loudspeakers can provide top quality sound for a surprisingly large physical area, making them one of the most acoustically and economically effective solutions available anywhere. -
Page 10: R Series Models
R SERIES MODELS The R SERIES family features 32 models that range in capability from short throw usage for local area fill (about 30 to 50 feet), to extremely long throw capable of reaching across an entire stadium (about 700 feet). A wide selection of coverage angles and power output capabilities characterize this versatile product line. -
Page 11: R Series Accessories And Options
200-watt autoformer pre-installed in the enclosure. Custom Colors For volume purchases, all R SERIES and W SERIES products may be ordered in custom color enclosures at a nominal fee to elegantly match their physical installation environment. Please contact Community for a quote on cost and lead time. -
Page 12: Installation
Inputs R SERIES input is via an attached 16 Gauge SJOW cable rated for outdoor use. This cable is approximately 12 feet (4m) in length. The Technical Information section shows the input connections for each model. Note that some 70V/100V models have selector switches in place of the multi-wire cable. - Page 13 ELECTRICAL INSTALLATION AND SAFETY (continued) However, in most cases, using transformer versions of the R SERIES loudspeakers along with 70.7-volt or 100-volt amplification will yield the best performance at a reasonable cost. In this approach, the need for larger gauge wire will be reduced.
- Page 14 -3dB frequency. A good choice of f is the same frequency as the recommended high-pass filter for the chosen R SERIES model. The impedance seen by the power amplifier will be 8-ohms for a single R SERIES model, 4-ohms for a pair of loudspeakers in parallel and 2-ohms for four loudspeakers in parallel.
- Page 15 flush with the exterior of the cabinet to avoid undue pressure on the switch mechanism. See the charts on pages 5-7 or the Technical Information Section near the end of this manual for details about a specific model. For additional information, Community’s web site includes a technical note on the design of 70-volt/100-volt distributed systems.
-
Page 16: Mechanical Installation And Safety
The second area of responsibility is the loudspeaker itself. Community certifies its loudspeaker systems for suspension when they are properly installed according to our published guidelines. - Page 17 MECHANICAL INSTALLATION AND SAFETY (continued) Using Yoke Brackets Community provides one yoke-type mounting bracket with each R.25 or R.5 loudspeaker. In most cases, this will be the preferred hardware for mounting these products. The yoke attaches to the sides of the cabinet with the provided fasteners.
-
Page 18: Mechanical Installation And Safety
For most applications, the installing contractor or professional engineer might deem necessary (or advisable) that R SERIES cabinets be installed with a secondary means of attachment such as a safety cable. In fact, some local building codes and other regulations may require safety cables, chains or other secondary supports due to seismic concerns, excessive wind loads, etc. -
Page 19: Important Installation Notes
Always use outdoor-rated cable. Always seal connections in a weather-tight electrical box. IMPORTANT: If the above instructions are not observed, the weather-resistant integrity of an R SERIES loudspeaker can be compromised. This can result in damage to or failure of the hardware or internal components. -
Page 20: System Optimization
CHOOSING THE RIGHT LOUDSPEAKERS AND ELECTRONICS Choose R SERIES models with high enough maximum SPL to provide the needed SPL at the farthest listener with an appropriate headroom. Typical headroom factors are at least 6dB for voice paging, at least 10dB for voice reinforcement and at least 20dB for music reinforcement. -
Page 21: R.25 Technical Information
White Pos. 1 Pos. 2 Pos. 3 Pos. 4 R.25-94Z Negative Positive R.25-94TZ (70V) Negative Positive 100W 200W R.25-94TZ (100V) Negative Positive 100W 200W R.25 Dimensions R.25 Yoke Mounting Bracket (included) R SERIES R.5 and R.25 Installation/Operation Manual Page 21... -
Page 22: Information
Orange Yellow R.5HP (6 ohm) Negative Positive R.5HPT, 70V Negative 200W 100W R.5HPT, 100V Negative 200W 100W R.5SUB Negative Positive R.5SUB-T 70V Negative 200W 100W R.5 SUB-T 100V Negative 200W 100W Page 22 Installation/Operation Manual R SERIES R.5 and R.25... - Page 23 R.5Technical Information R.5COAX / R.5-xxZ / R.5SUB Dimensions 15.94" 16" (404.88m m) (406.4mm) 16" (406.4mm) R.5HP Dimensions R.5 Yoke Mounting Bracket (included for all models) R SERIES R.5 and R.25 Installation/Operation Manual Page 23...
-
Page 24: Information
Any driver or crossover service required is done from the front of the enclosure by removing the screws around the edge of the grille. For warranty repair, contact Community directly or ask us for the location of your nearest Authorized Service Center.
