ACCESSORIES
WARNING: The bolts used and wall material into which the Pan Bracket assembly is bolted must
be capable of supporting the load of the ENTASYS array to be mounted. It is the responsibility of
the installer to verify these items.
WARNING: A pair of ENTASYS Pan Brackets must not be
used to support more than five (5) ENTASYS loudspeakers.
Attempting to do so will exceed the Working Load Limit of the
bracket and could result in the failure of the bracket and
potentially result in severe injury and/or loss of life.
ENTASYS Pan-Tilt Bracket: ENT-PT, ENT-PTW
The ENTASYS Pan-Tilt Bracket, designated ENT-PT, is used to
provide a down-tilt angle (rotation about a horizontal axis) and a panning
action (rotation about a vertical axis) when an array is mounted to a wall.
The Pan-Tilt Bracket consists of two primary parts, a Top Assembly and
a Bottom Piece, as shown in Figures 11 and 12. The Top Assembly
consists of multiple parts that are configured and assembled to yield the
desired down angle for an array of up to five columns. After the Pan-Tilt
Bracket Assembly is put together it is mounted to a wall and then the
ENTASYS loudspeaker(s) are attached to it.
The Pan-Tilt bracket can be used with a one, two, or three col-
umn array for a down-tilt angle of up to 10°. With a four or five column
array the maximum down-tilt angle is 5°.
Instructions for Attachment (see Figure 11)
1. Remove the "T" Mounting Bracket from the ENTASYS column to be
mounted. See Figure 4 for instructions on this removal. If multiple
columns are to be mounted using a Pan-Tilt Bracket see the instruc-
tions for attaching the columns using the Coupler Bracket on Page
18.
2. For a single loudspeaker array, securely fasten four of the M6 x
30mm bolts and nuts to the "T" Mounting Bracket in the top four holes
of the "T" Mounting Bracket. For a multiple loudspeaker array,
securely fasten the four M6 x 30mm bolts and nuts to the top four
holes in the top Coupler Bracket and "T" Mounting Bracket (Note that
screws currently in these holes in the Coupler Bracket must be
removed first). This will yield four mounting studs for the Top Angle
Bracket. Do this before attaching any other parts of the Pan-Tilt
Bracket or the washers to the "T" Mounting Bracket.
3. Attach the Top Angle Bracket to the four mounting studs using the
four M6 nuts, lock washers, and flat washers. Tighten these nuts
securely.
4. Attach the Top Wall Bracket to the Small Extension Bracket using the
M10 x 25mm bolt, flat washer, lock washer, and nut. Be sure to place
the Locking Bar into position during this step. Only finger tighten the
M10 bolt and nut.
5. Attach the Medium and Large Extension Brackets to the Small
Extension Bracket as needed to achieve the correct length for the
desired down-tilt angle. Use the M6 x 16mm Pan Head Screws, flat
Community ENTASYS Installation/Operation Manual — Page 23

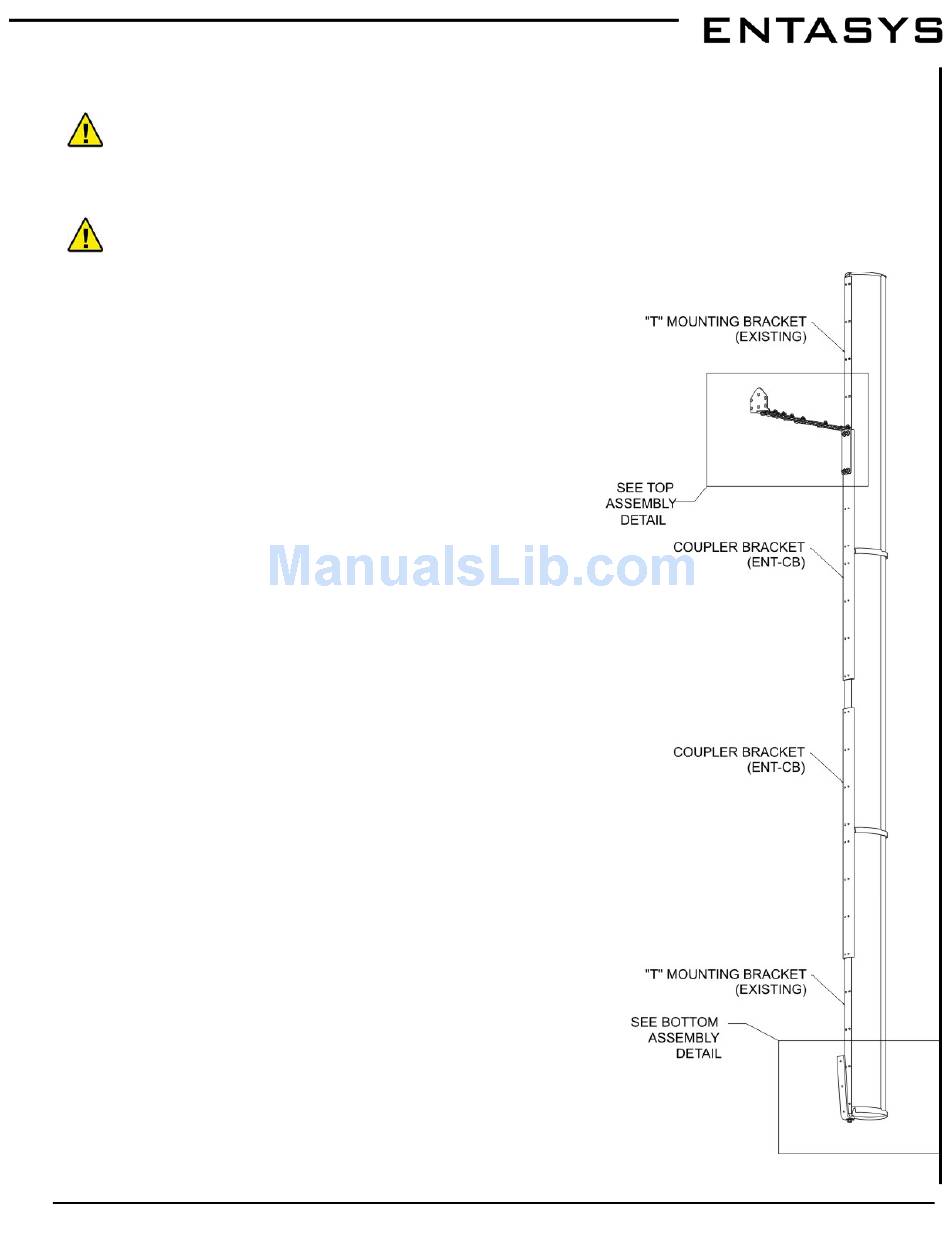

Figure 10: Pan-Tilt Bracket on
Multiple Columns
