Community MVP36 Specifications

S (See notes 1 and 2)
PECIFICATIONS
Loudspeaker Type: Two-way, full-range
Operating Range: 60 Hz - 17 kHz
60 Hz - 15 kHz (+/-5dB)
Max Input Ratings: 200W continuous, 500W Program
40 volts RMS, 89 volts momentary peak
Recommended Power Amplifier:
For maximum SPL: 400W to 600W @ 8 Ohms
Sensitivity 1W/1m:
96 dB SPL (63 Hz - 13 kHz 1/3 octave bands)
94 dB SPL (250 Hz - 4 kHz speech range)
Maximum Output: 119 dB SPL / 126 dB SPL (peak)
Nominal Impedance: 8 Ohms
Min Impedance: 4 Ohms @ 11140 Hz
Nominal -6dB Beamwidth:
90° H (-10° / -50°, 1 kHz - 13 kHz)
40° V (+61° / -10°, 1 kHz - 12 kHz)
Axial Q / DI: 16.5 / 12.2, 1 kHz - 12 kHz
Crossover Frequency: 2 kHz
Recommended Signal Processing: 60Hz high pass filter
Drivers: LF (1) 15" cast frame
HF (1) LM20™ compression driver,
non-metallic diaphragm, Ferrofluid-cooled
Driver Protection: Thermal Link™
Input Connection: (2) 1/4" jacks, (2) Locking Connectors
Controls: None
Enclosure: MDF
Enclosure Hardware: (2) Recessed handles
(8) Interlocking corner protectors
(4) Rubber feet
Mounting / Rigging Provisions:
(1) 1-3/8" stand socket
(6) 5/16-18 hanging point inserts
Grille: 16 gauge perforated steel
Required Accessories: None
Supplied Accessories: None
Optional Accessories: Strapkit: (3) steel straps for suspending
Dimensions: Height: 27.8" / 708 mm
Width (front): 18" / 457 mm
Width (rear): 12.4" / 315 mm
Depth: 19" / 483 mm
Weight: 60 lb. / 27 kg
Shipping Weight: 73 lb. / 33 kg
1. Sensitivity: Free field pink noise measurement at 40 ft / 12.2 m at 50%
power; extrapolated to 1 meter and an input of 2.83 volts RMS.
2. Wa t ts: Al l w a tta g e fig ur es ar e ca lc ula ted using t he r at ed
nomin a l im pe d a n c e .
333 East 5th Street, Chester, PA USA 19013-4511 TEL (610) 876-3400 FAX (610) 874-0190

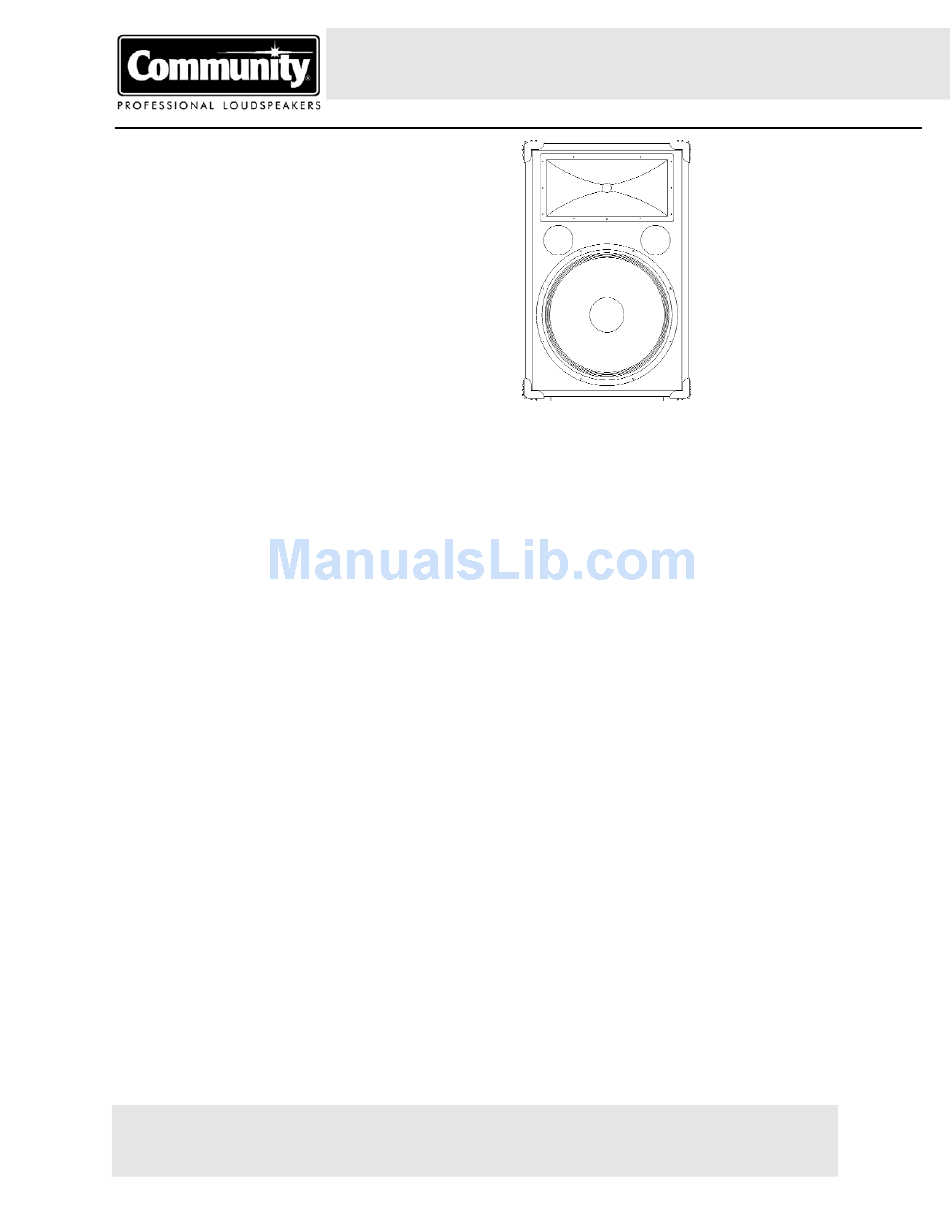

TWO-WAY TRAPEZOIDAL LOUDSPEAKER WITH 90° X 40° HF HORN
WB1: (2) steel plate brackets
for wall mounting
COMMUNITY PROFESSIONAL LOUDSPEAKERS
www.loudspeakers.net
Specifications subject to change without notice.
MVP36
APPLICATIONS:
·
S R /P
· OUND EINFORCEMENT ORTABLE
C /DJ
· LUBS
B
ANDS
·
H W
· OUSES OF ORSHIP
P I
ERMANENT NSTALLATION
·
S F & H C
· PORT ACILITIES EALTH
R S
ENTAL YSTEMS
·
K
ARAOKE
FEATURES:
·
S P LED
IGNAL RESENT
·
T L ™ HF D P
· HERMAL INK RIVER
LM20™ L M F F
OW ASS ERRO LUID
·
D C Z S S
· IE AST INC TAND OCKET
H B MDF C
EAVILY RACED ONSTRUCTION
·
T ¼" I C ,
· WO NPUT ONNECTORS AND
R H
· ECESSED ANDLES
16 S G
GAUGE TEEL RILLES
D
ESCRIPTION
The MVP36 is a rugged, high-efficiency, two-way, full-range loud-
speaker system. The system utilizes one LM20™ high-frequency driver
coupled to a Pattern Control horn and one 15" cast frame woofer for
high efficiency and excellent power handling capability. These compo-
nents are matched to an optimally tuned direct radiating bass-reflex
enclosure. The recessed handles, black carpeted exterior and injection
molded corners also make this system attractive and rugged.
The MVP36 offers a robust internal crossover with Thermal Link™
Dynamic HF Driver Protection. The crossover is built to last with high
quality inductors, precision wound coils and military grade circuit
boards. The proprietary Thermal Link Dynamic HF Driver Protection
circuit provides both over-current and thermal protection for added per-
formance and reliability.
Designed as a stand-alone full-range loudspeaker system, the
MVP36 offers enough bass for most applications. For more
demanding applications, extended bass can be achieved by adding
a MVP subwoofer. Mounting is easily accomplished utilizing the
threaded inserts provided and optional mounting kits. This product
should never be suspended by its handles.
MVP36 [04-17-02]
